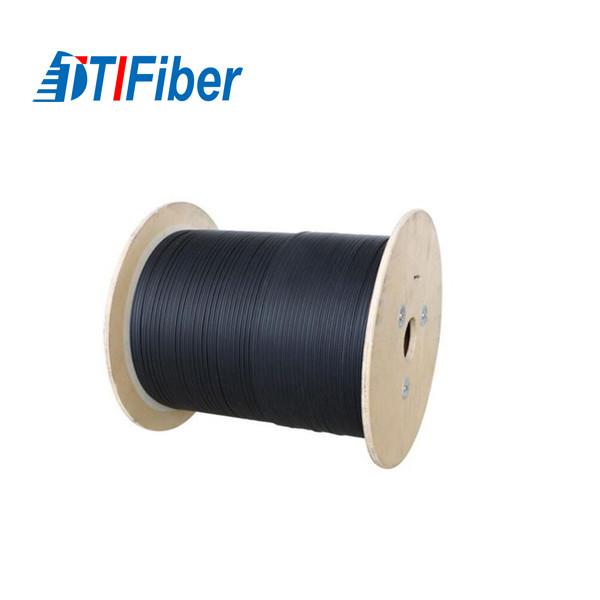

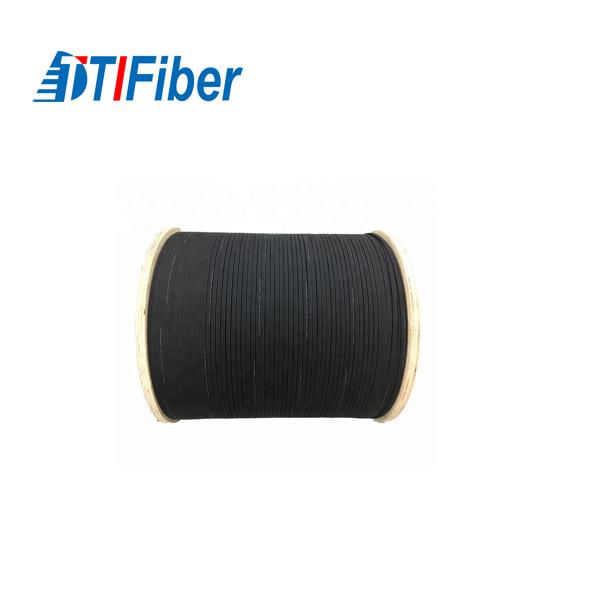

Single Mode Fiber Optic Cable 4 Core Self Supporting FTTH Bow Type LSZH Jacket
Single Mode Fiber Optic Cable 4 Core Self Supporting FTTH Bow Type LSZH Jacket
Single Mode Fiber Optic Cable 4 Core Self Supporting FTTH Bow Type LSZH Jacket
Single Mode Fiber Optic Cable 4 Core Self Supporting FTTH Bow Type LSZH Jacket
Specifications
Brand Name :
TTI
Model Number :
FTTH
Certification :
ISO9001
Place of Origin :
Chinaland
MOQ :
Negotiable
Price :
Negotiable
Supply Ability :
5000 meters per day
Packaging Details :
Wooden drum
Color :
Customized
Application :
Telecommunication
Jacket :
LSZH
Conductor :
Copper CCA CCS
OEM :
Welcome
Description

single-mode self-supporting FTTH Bow-type drop fiber optic cable 4 core optical fiber cable

FTTH cable Describution:

The optical fiber unit is positioned in the centre.Two parallel Fiber Reinforced Plastics(FRP) are placed at the two sides.A steel wire as the additional strenght member is also applied. Then the cable is completed with a black or color LsZH sheath.

FTTH cable Features:

  1. Compliant with: ANSI,Bekkcore,TIA/EIA,IEC Strandards
  2. Simplex and duplex available
  3. With ceramic fettules
  4. PVC&LSZH cable option
  5. Low insertion loss and hight return loss
  6. Excellent repeatability and changeability
  7. Optical performance 100% factory test

FTTH cable Application:

  1. All types of fiber cables with different structures
  2. High performance optical network operating
  3. High speed optical routes in buildings (FTTx)
  4. Application in L band

FTTH Cable Construction Parameter:

Fiber Core 1 2 1 4
Cable Dimension(mm) 2.0×5.0 2.0×5.0 2.0×5.3 2.0×5.3
Cable Weight(kg/km) 9 10 11 12

Mechanical & Environmental Performance:

Max Load (N) Long Term 60 60 60 60
Short Term 120 120 120 120
Bending Radius(CM) Dynamic 30
Static 15

Shipping:

  1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
  2. Airport to Airport: by air
  3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
