Double PE Jacket Fiber Optic Cable Armoured Direct Buried Outdoor Lead GYFTA53
Double PE Jacket Fiber Optic Cable Armoured Direct Buried Outdoor Lead GYFTA53
Double PE Jacket Fiber Optic Cable Armoured Direct Buried Outdoor Lead GYFTA53
Double PE Jacket Fiber Optic Cable Armoured Direct Buried Outdoor Lead GYFTA53
Specifications
Brand Name :
TTI
Model Number :
GYFTA53
Certification :
ISO9001/CE /ROSH
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T, ,Paypal
Supply Ability :
5000M/day
Delivery Time :
5-8 working days
Packaging Details :
wooden drum
Product name :
GYFTA53
Fiber count :
2-288cores
Installation :
direct buried
Application :
LAN Communication
Standards :
IEC60794
Quality level :
Telecom level
Color :
black
Package :
wooden drum
Jacket :
PE
Warranty :
10 years
Description

GYFTA53 Fiber Optical Cable Double Jacket Double Armoured Direct Buried Outdoor Cable

Definition of GYFTA53

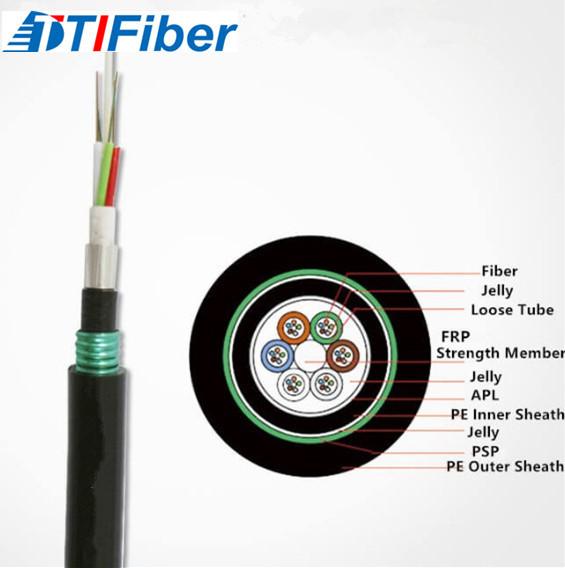

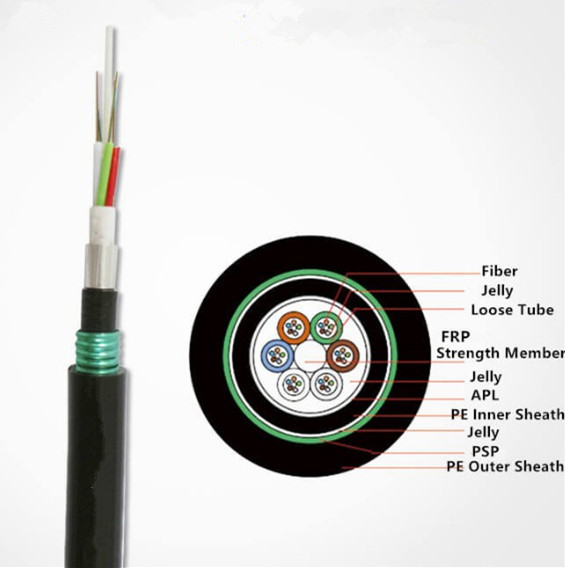

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. FRP locates in the center of core as a non-metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is to protect the cable from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

Characteristics

Good mechanical and temperature performance.
· Special tube filling compound ensure a critical protection of fiber.
· Crush resistance and flexibility.
· PSP enhancing moisture-proof.

Structure details

No. of fibers 6F 12F 24F 36F 48F 72F 96F 144F
No. of tubes 1 1 2 3 4 6 8 12
fibers per tube 6 6 6 12 12 12 12 12
Filler Rod 5 4 2 3 2 0 0 0
Tube diameter (±0.1mm) 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0
Thickness of loose tube
(±0.05mm)		 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3
Inner sheath diameter
(±0.2mm)		 9.2 9.2 9.2 9.2 9.2 9.2 10.8 13.2
Thickness of inner diameter
(±0.2mm)		 1.0 1.0 1.0 1.0 1.0 1.0 1.0 1.0
Outer diameter (±0.5mm) 13.8 13.8 13.8 13.8 13.8 13.8 15.6 18.2
Thickness of out diameter
(±0.2mm)		 1.7 1.7 1.7 1.7 1.7 1.7 1.7 1.8
Loose tube Material PBT Color Standard spectrum
Filler rod Material PP Color Natural
Central strength member Material FRP Diameter 2.0mm±0.1mm
Water blcoking system Material Water blocking tape
Inner armor Material Aluminum tape
Inner sheath Material PE Color Black
Rip cord Qty 2pcs Color White
Outer armor Material Corrugated steel tape
Outer sheath Material PE Color Black

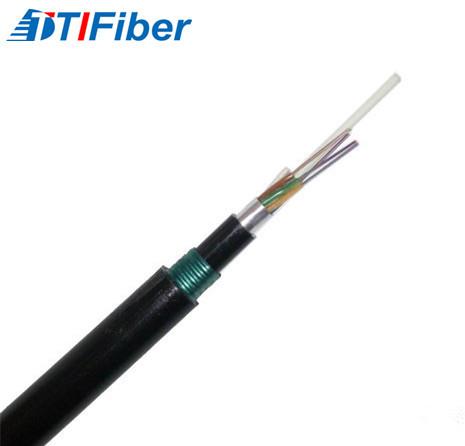

Product pictures

Double PE Jacket Fiber Optic Cable Armoured Direct Buried Outdoor Lead GYFTA53

Double PE Jacket Fiber Optic Cable Armoured Direct Buried Outdoor Lead GYFTA53
