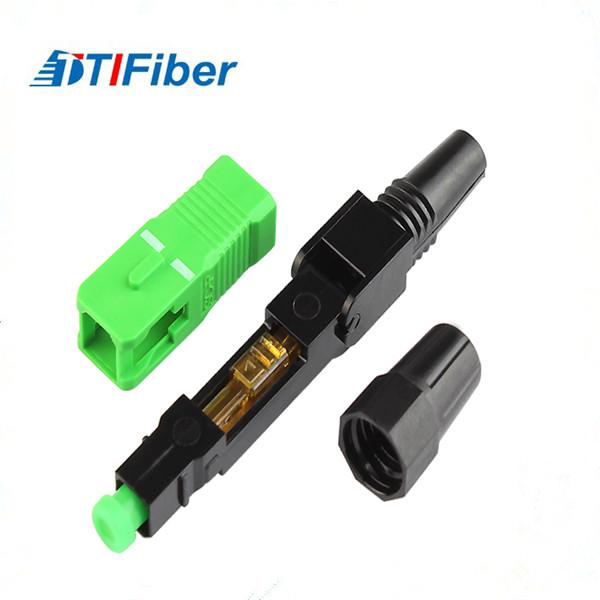

UPC FTTH SC Single Mode Fiber Optic Connector 0.3db Insertion Loss 50N Tensile Strength
UPC FTTH SC Single Mode Fiber Optic Connector 0.3db Insertion Loss 50N Tensile Strength
UPC FTTH SC Single Mode Fiber Optic Connector 0.3db Insertion Loss 50N Tensile Strength
UPC FTTH SC Single Mode Fiber Optic Connector 0.3db Insertion Loss 50N Tensile Strength
Specifications
Brand Name :
TTI
Model Number :
QAC-SCU
Certification :
ROHS, SGS
Place of Origin :
Guangdong, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, , Monthly settlement
Supply Ability :
10000pcs/day
Delivery Time :
3-5days
Packaging Details :
1PCS/PE Bag
product name :
fast connector
brand :
TTI
mode :
sm mm
insertion loss :
<=0.3db
reusable times :
>10 times
tensile strength :
>50N
Description

Fiber Optic Quick Fast Connector Adapter For UPC FTTH SC Single Mode

Description:

Fast fiber optic connector

Fast fiber optic connector can provide a quick and easy termination of fibers in the field and options are available for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system removes any requirement for epoxy, adhesives or costly curing ovens

SC quick assembly connector has easy assembly and excellent stability.

Feature:

  • No special assembling tool
  • Easy for learning technology by a simple assembling method (within 1 and half minutes)
  • Minimize the defect rate by features of removal and reusable.
  • Easy for assembling with mechanical splice and no polishing

Application:

  • Optical network maintaining and repair.
  • Local area network environment of connection.
  • Fiber optic distribution frame.
  • Terminal connection-leg of FTTH optic network.

Specification:

Article value
Insertion loss ≤0.3 (max 0.4)
Return loss ≥60dB
Connector type SC/APC
Cable drop 3.0mm / flat 2x3mm cable
Fiber clamping force ≥3N
Tensile Strength Typical ≥40N (Max 50N)
Online tensile strength 20N IL variation (≤0.2dB) RL variation (≤5dB)
Working Temperature -40℃ ~ +75℃
Can be repeatedly used Possible

Ferrule Hole Sizes:
Singlemode
125.0+1/-0um, concentricity<=1.0um
125.5+1/-0um, concentricity<=1.0um
126.0+1/-0um, concentricity<=1.0um


Multimode
125um concentricity <=3um
127um concentricity <=3um
128um concentricity <=3um

Shipping:

  1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
  2. Airport to Airport: by air
  3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)
