Wall Mounted Fiber Optic Distribution Box 1X16 With SC Adapter Splitter / Pigtails
Wall Mounted Fiber Optic Distribution Box 1X16 With SC Adapter Splitter / Pigtails
Wall Mounted Fiber Optic Distribution Box 1X16 With SC Adapter Splitter / Pigtails
Wall Mounted Fiber Optic Distribution Box 1X16 With SC Adapter Splitter / Pigtails
Specifications
Brand Name :
TTI
Model Number :
1X16 distribution box
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, T/T,Paypal
Supply Ability :
1000pcs/day
Delivery Time :
3-5 working days
Packaging Details :
single one in a single box then some boxes in a carton
Material :
PC/ABS
Fiber port :
16 ports
Accommodate PLC :
1X16 PLC splitter
Suitable adapter :
SC/LC adapter
Color :
white
Package :
independent box
Application :
FTTH /FTTX
Installation :
wall and pole mounted
Warranty :
10 years
Description

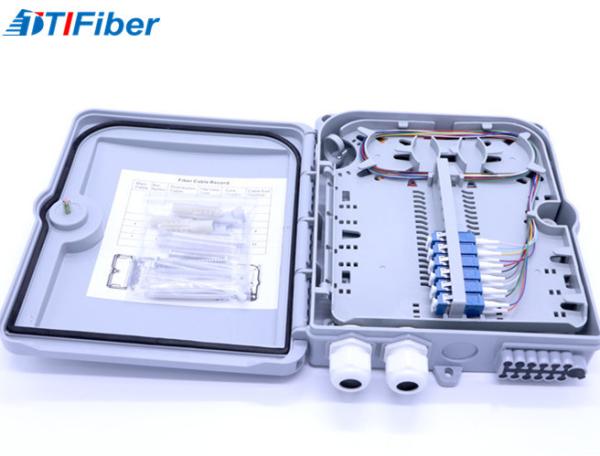

Fiber Optic Distribution Box 1X16 Wall Mounted With SC Adapter Splitter And Pigtails

Features

8-1: Protects and manages cable effectively

8-2: Secured with anti-theft locking mechanism

8-3: Standard size, light weight

8-4: High quality PC +ABS material

8-5: Good properties of dust, and moisture proofing,IP65

8-6: Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one

8-7: Suitable for SC and LC duplex adaptor and pigtail

8-8: Easy to operate

Application

CATV network

FTTH access network

Telecommunication network

Data communication network

Technical Data

Item Parameter
Type FD-08
Mounting way wall mounting or pole mounting
Working temperature -40℃~+85℃
Relative humidity ≤85%(+30℃)
Atmospheric pressure 70Kpa~106Kpa
Insert Loss ≤ 0.2dB
UPC Return Loss ≥ 50dB
APC Return Loss ≥ 60dB
Insert and Pull out Life ≥ 1000 times
Insulation T he grounding device is insulated with the Termination box, IR ≥1000m /500V (direct current)
Withstand Voltage

Between the grounding device and the box body, the withstand voltage is over 3000V/Min,

no breakdown and flash over. U ≥3000V (direct current)

Product pictures

Wall Mounted Fiber Optic Distribution Box 1X16 With SC Adapter Splitter / PigtailsWall Mounted Fiber Optic Distribution Box 1X16 With SC Adapter Splitter / PigtailsWall Mounted Fiber Optic Distribution Box 1X16 With SC Adapter Splitter / Pigtails

Company information

Wall Mounted Fiber Optic Distribution Box 1X16 With SC Adapter Splitter / PigtailsWall Mounted Fiber Optic Distribution Box 1X16 With SC Adapter Splitter / Pigtails
