Optical Ftth Fiber Drop Cable 2 / 4 / 6 / 8 Core Single Mode Outdoor Indoor
Optical Ftth Fiber Drop Cable 2 / 4 / 6 / 8 Core Single Mode Outdoor Indoor
Optical Ftth Fiber Drop Cable 2 / 4 / 6 / 8 Core Single Mode Outdoor Indoor
Optical Ftth Fiber Drop Cable 2 / 4 / 6 / 8 Core Single Mode Outdoor Indoor
Optical Ftth Fiber Drop Cable 2 / 4 / 6 / 8 Core Single Mode Outdoor Indoor
Optical Ftth Fiber Drop Cable 2 / 4 / 6 / 8 Core Single Mode Outdoor Indoor
Optical Ftth Fiber Drop Cable 2 / 4 / 6 / 8 Core Single Mode Outdoor Indoor
Optical Ftth Fiber Drop Cable 2 / 4 / 6 / 8 Core Single Mode Outdoor Indoor
Optical Ftth Fiber Drop Cable 2 / 4 / 6 / 8 Core Single Mode Outdoor Indoor
Optical Ftth Fiber Drop Cable 2 / 4 / 6 / 8 Core Single Mode Outdoor Indoor
Optical Ftth Fiber Drop Cable 2 / 4 / 6 / 8 Core Single Mode Outdoor Indoor
Optical Ftth Fiber Drop Cable 2 / 4 / 6 / 8 Core Single Mode Outdoor Indoor
Specifications
Brand Name :
TTI
Model Number :
S-1
Certification :
ROHS, SGS
Place of Origin :
Guangdong, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, L/C, Western Union, PayPal
Supply Ability :
70000 Meters/Month
Delivery Time :
5-20 working days after received the payment
Packaging Details :
Wooden Drum to package
application :
FTTX system
Feature :
excellent mechanical
Fiber type :
SMF-28e or customer specified, Custom, G.657A with 0.9mm loose tube, Singlemode or multimode, G657
Operating temperature :
-40℃ to 70℃
Type :
Outdoor fiber optic cable
Application :
FTTH FTTB FTTX Network, FTTA FTTH BBU RRU RRH LTE & Base station, For ODF internal link, For room equipment internal link, FTTH/Test equipments/TV/LAN/Telecommunication equipments
Jacket material :
Customize, can be customized, 1M; 2M; 4M etc., 10Meter
Product name :
fiber optic launch cable, ftth drop cable, 2core FTTH single mode indoor/outdoor fiber optic, armored 2 core field optical fiber cable assembly for field operation, 1 2 4 core fiber optic drop cable
Description

Ftth Fiber Drop Cable 2 / 4 / 6 / 8 Core Single Mode Outdoor Indoor Fiber Optical Cable

1. Product Description:

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

2. Features:

- Good mechanical and temperature performance

- High strength loose tube that is hydrolysis resistant

- Special tube filling compound ensure a critical protection of fiber

- Crush resistance and flexibility

- The following measures are taken to ensure the cable watertight

- Steel wire used as the central strength member

- Loose tube filling compound

- 100% cable core filling

- APL moisture barrier

- PSP enhancing moisture-proof

- Water-blocking material

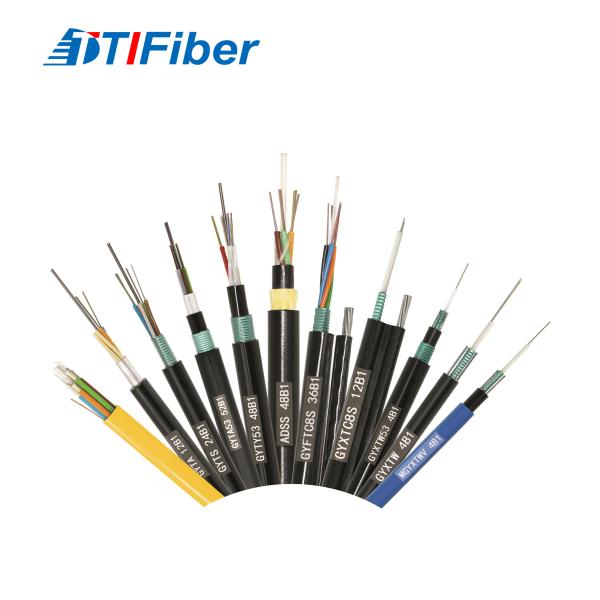

3. Product Display:

Optical Ftth Fiber Drop Cable 2 / 4 / 6 / 8 Core Single Mode Outdoor Indoor

Optical Ftth Fiber Drop Cable 2 / 4 / 6 / 8 Core Single Mode Outdoor Indoor

Optical Ftth Fiber Drop Cable 2 / 4 / 6 / 8 Core Single Mode Outdoor Indoor

4. Technical data:

Fiber Num. Outer diameter (mm) Weight (kg/km) Tension (N) Crash loading (N/100mm)
Short term Long term Short term Long term
2-30 12.9 160 3000 1000 3000 1000
32-60 13.4 175
62-72 14.1 204
74-84 15.4 245
86-96 15.4 245
98-120 17.2 285
122-144 19 334

5. Performance:

Application: Used for long haul communication and local network

Installation method: burial and duct

Operating temperature: -40°C ~ +70°C

Permisson bent radius Static: 12.5 times O.D.

Dynamic: 25 times O.D.

No. of cable
12
24
48
Fiber Model
G.652D
Design
(StrengthMember+Tube&Filler)
1+5
Central Strength Member
Material
Steel Wire
Diameter(±0.5)mm
1.4
Loose Tube
Material
PBT
Diameter(±0.06)mm
1.72
1.72
2.0
Thickness(±0.03)mm
0.30
0.30
0.32
The Max.Core NO./Tube
6
6
12
Filler Rope
Material
LDPE
Diameter(±0.06)mm
1.7
1.7
2.0
NO.
3
1
1
Moisture Barrier
Material
Polymer Coated Aluminum Tape
Thickness(±0.03)mm
0.20
Inner
Sheath
Material
MDPE
Thickness(±0.2)mm
0.9
Armoring
Material
Polymer Coated Steel Tape
Thickness(±0.2)mm
0.22
Water Bloaking Layer
Material
Filling Compound
Outer Sheath
Material
MDPE
Thickness(±0.2)mm
1.8
Cable Diameter(±0.5)mm
12.5
12.5
13.1
Cable Weight(±10)kg/km
152
167
167
Attenuation
1310nm
0.35dB/ km
1550nm
0.21dB/ km
Min. bending radius
Without Tension
12.5×Cable-φ
Under Maximum Tension
25.0×Cable-φ
Temperature range
(℃)
Installation
-20~+60
Transport&Storage
-40~+70
Operation
-40~+70

6. Certification Display:

Optical Ftth Fiber Drop Cable 2 / 4 / 6 / 8 Core Single Mode Outdoor Indoor

7. About us:

Shenzhen TTI Fiber Communication Tech. Co., Ltd. Is a high-tech enterprise specialized in fiber optic cable assemblies and optical fiber communication devices production, development and sales.

Our company established a set of strict quality assurance system and obtained ISO9001, ISO4001 international quality system certificate.

Our main products are Fiber optic cable, Fiber optic patch cord, fiber optic pigtail, fiber optic adapter, fiber optic attenuator, PLC splitter, fiber optic patch panel and much more FTTH products.

We not only offer OEM service but also help many partners from all over the world to win in the market with professional technical support, excellent product solution, competitive prices, fast delivery and good service.

Through our quality assurance program we give you outstanding quality of fiber optic cable assemblies. Quality has always made TTI Fiber stand out and it is essential to the company success.

Our key objective is to solve our customers and technical challenges by working in partnership to design and manufacture outstanding products. We strive for 100% customer satisfaction.

TTI Fiber provides qualified technical solutions and immediate service response when you need it the most.We not only sell products. We are offering good service and professional support.

Choose TTI, to make your Internet Expedite!

* Why choose TTI FIBER ?

1. What are your advantages?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance:Stable high quality.
(3) Customers solutions:Quick.
(4) Win-Win Price:Save much costs, bring more benefits for customers.


2. Do you accept OEM/ODM?
Yes, we accept them.


3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes, or products.


4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport, airport transport.
