G657A2 LSZH White Fiber Optic Patchcord SM SX 3.0mm SC / APC-SC / APC
G657A2 LSZH White Fiber Optic Patchcord SM SX 3.0mm SC / APC-SC / APC
G657A2 LSZH White Fiber Optic Patchcord SM SX 3.0mm SC / APC-SC / APC
G657A2 LSZH White Fiber Optic Patchcord SM SX 3.0mm SC / APC-SC / APC
Specifications
Brand Name :
TTI
Model Number :
SC/APC-SC/APC Patchcord
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T, , ,
Supply Ability :
10000 pieces
Delivery Time :
5-8 Work Days
Packaging Details :
Standard Package(Surport OEM/ODM)
Name :
SC/APC-SC/APC Patchcord
Connector :
FC,LC,SC,ST,MPO,DIN,D4,MU
Diameter :
0.9mm/2.0mm/3.0mm
Application :
Telecommunication
Insertion Loss :
≤0.2dB
Length :
1M/3M/5M/10M/Customization
Material :
PVC/LSZH
Use :
FTTH/FTTA/FTTX
Description

SM SX 3.0mm SC/APC-SC/APC G657A2 LSZH White Fiber Optic Patchcord

Fiber Optic Patch Cable is also known as fiber optic jumper or fiber optic patch cord. It is composed of a fiber optic cable terminated with different connectors on the ends. Fiber optic patch cables are used in two major application areas: computer work station to outlet and patch panels or optical cross connect distribution center. TTI fiber provides various types of fiber optic patch cables including single-mode, multimode, multi-core, armored patch cables, as well as fiber optic pigtails and other special patch cables. For most of the patch cables, the SC, ST, FC, LC, MU, MTRJ, (APC/UPC polish) are all available. In addition, we also have MTP/MPO cables in stock.

1. Feature

(1) Low insertion loss and back reflection loss

(2) Good echangeability

(3) Good Durability

(4) High temperature stability

(5) Standard: Telcordia GR-326-CORE

2. Application
(1) FTTH, LAN, PON & Optical CATV, Local ring net

(2) Optical fiber communication system

(3) Optical fiber test equipment

(4) Optical fiber sensor

(5) Industry and military application

3. Speciafication
MODEL NO
Fiber Optic Patch Cord
Fiber Type
SM G657A2
Cable Assembilies
Simplex
Jacket Material
LSZH
Cable Diameter (mm)
3.0MM
Connector Type
SC
End Face
UPC / APC
Working Wavelength (nm)
1310/1550
Insertion Loss (dB)
≤0.3dB(MAX) ≤0.2dB(Typical)
Return Loss (dB)
UPC ≥50dB APC ≥60dB
Exchangeability
≤0.2dB
Operating Temperature(℃)
-40～85
Storage Temperature(℃)
-40～85

4. Product Details

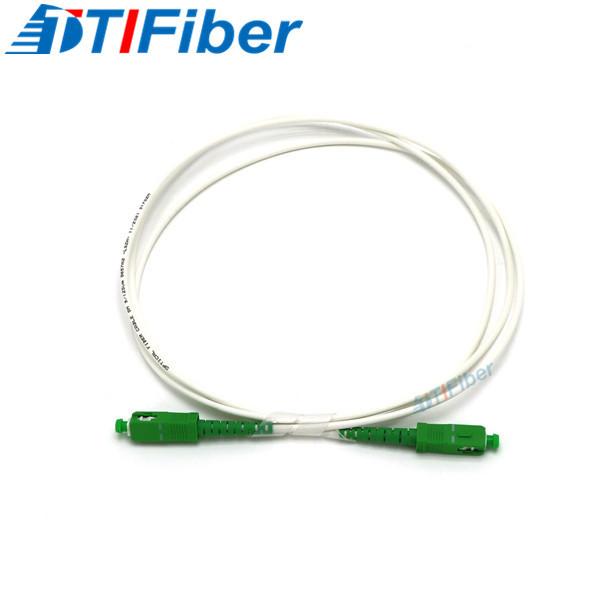

G657A2 LSZH White Fiber Optic Patchcord SM SX 3.0mm SC / APC-SC / APC

G657A2 LSZH White Fiber Optic Patchcord SM SX 3.0mm SC / APC-SC / APC

5. FAQ:

1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance:Stable high quality.
(3) Customers solutions:Quick.
(4) Win-Win Price:Save much costs, bring more benefits for customers.

2. Do you accept OEM,ODM?
Yes, we accept them .

3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.

4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.


5. What's the Payment?

We accept all online payments .
