1FO 2FO Single Mode Optical Patchcord OTO Terminal Distribution Box
1FO 2FO Single Mode Optical Patchcord OTO Terminal Distribution Box
Specifications
Brand Name :
TTI
Model Number :
OTO Box
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
D/A, D/P, T/T, , ,
Supply Ability :
10000 pieces
Delivery Time :
5-8 Work Days
Packaging Details :
Standard Package(Surport OEM/ODM)
Name :
Optical OTO Box
Connector :
FC,LC,SC,ST,MPO,DIN,D4,MU
Diameter :
2.0mm/3.0mm/Customized
Application :
Telecommunication
Insertion Loss :
≤0.2dB
Length :
1M/3M/5M/10M/Customization
Material :
PVC/LSZH
Use :
FTTH/FTTA/FTTX
Description

1FO 2FO Single Mode Optical Patchcord OTO (Optical Telecommunication Outlet) Terminal Distribution Box

fiber optic patchcord, is a length of fiber cable fitted with LC, SC, FC,MTRJ or ST fiber connectors at each end.Fiber patchcord also come in hybrid varieties with one type of connector on one end and another type of connector on the other like this one. Jumpers are used to connect end devices or network hardware to the structured cabling system.

1. Feature

1. All kinds of optical fiber patch cord, optical cable, fiber patch cord, SM & MM available.
2. Standard & custom configurations.
3. Meets Telecordia-GR-326-CORE specifications.
4. Low insertion loss.
5. Ultra low back reflection.
6. For 3.0mm, 2.4mm, 2.0mm jacket or 900μ M buffer.

2. Application
(1) FTTH, LAN, PON & Optical CATV, Local ring net

(2) Optical fiber communication system

(3) Optical fiber test equipment

(4) Optical fiber sensor

(5) Industry and military application

3. Speciafication
Fiber Type
SM
MM
Normal Fiber OD
125±0.2um
125±0.2um
Connector Type
SC,FC,ST, E-2000, LC, MU, DIN
MTRJ
SC,FC,ST, E-2000, LC, MU
MTRJ
Insertion loss(Typical)
0.2dB
0.4dB
0.2dB
0.4dB
Insertion loss(Max)
0.3dB
0.5dB
0.3dB
0.5dB
Return Loss(Typical)
PC
50dB
35
UPC
55dB
APC
65dB
Mating Durability(500 C)
0.2dB
0.Temperature Stability
0.3dB
Operation Temperature
-40°C~+85°C
Storage Temperature
-40°C~+85°C

4. Product Details

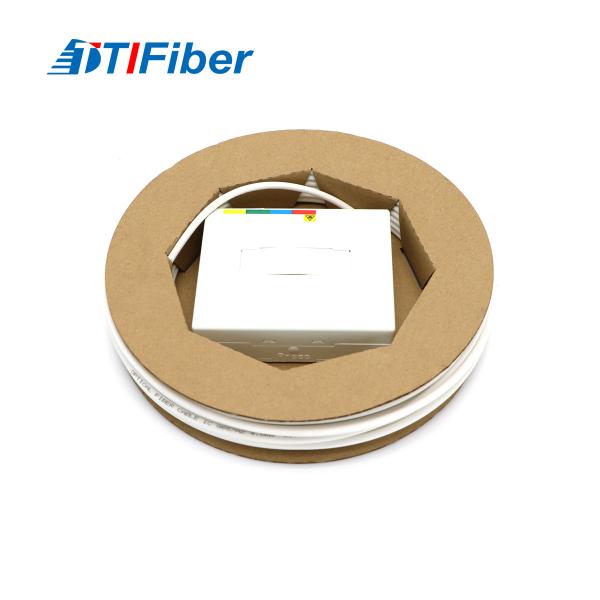

1FO 2FO Single Mode Optical Patchcord OTO Terminal Distribution Box

1FO 2FO Single Mode Optical Patchcord OTO Terminal Distribution Box

1FO 2FO Single Mode Optical Patchcord OTO Terminal Distribution Box

5. FAQ:

1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance:Stable high quality.
(3) Customers solutions:Quick.
(4) Win-Win Price:Save much costs, bring more benefits for customers.

2. Do you accept OEM,ODM?
Yes, we accept them .

3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.

4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.

5. What's the Payment?

We accept all online payments .
