LC SM 48 Core Waterproof Fiber Optic Pigtail Patch Cord For FTTH FTTX
LC SM 48 Core Waterproof Fiber Optic Pigtail Patch Cord For FTTH FTTX
LC SM 48 Core Waterproof Fiber Optic Pigtail Patch Cord For FTTH FTTX
LC SM 48 Core Waterproof Fiber Optic Pigtail Patch Cord For FTTH FTTX
LC SM 48 Core Waterproof Fiber Optic Pigtail Patch Cord For FTTH FTTX
LC SM 48 Core Waterproof Fiber Optic Pigtail Patch Cord For FTTH FTTX
Specifications
Brand Name :
TTI
Model Number :
Fiber Optic Pigtail
Certification :
CE
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
We accept all online payments
Supply Ability :
10000 pieces
Delivery Time :
5-8 Work Days
Packaging Details :
Standard Package(Surport OEM/ODM)
Product Name :
48 Core Pigtail
Connector :
FC,LC,SC,ST,MPO,DIN,D4,MU
Diameter :
0.9mm/2.0mm/3.0mm
Application :
Telecommunication
Insertion Loss :
≤0.2dB
Length :
1M/3M/5M/10M/Customization
Material :
PVC/LSZH
Use :
FTTH/FTTA/FTTX
Description

FTTH FTTX LC Singlemode 48 Core Waterproof Fiber Optic Pigtail Patchcord

Patch cord pigtail, is in the end of a fiber optic cable plus fiber connector, the other end of the original state, to achieve optical network equipment and equipment, equipment and cable between the active connection, simple, convenient and fast. It is one of the essential passive products for optical network construction.

TTI can provide all kinds of patch cord pigtail products; the transmission mode, optical cable type and connector type can be arbitrarily matched. It has the advantages of stable transmission, high reliability and customization; it is widely used in optical network scenarios such as central office, FTTX and LAN etc.

1. Feature

(1) Low insertion loss and back reflection loss

(2) Good echangeability

(3) Good Durability

(4) High temperature stability

(5) Standard: Telcordia GR-326-CORE

2. Application
(1) FTTH, LAN, PON & Optical CATV, Local ring net

(2) Optical fiber communication system

(3) Optical fiber test equipment

(4) Optical fiber sensor

(5) Industry and military application

3. Speciafication
48 Core Pigtail
Fiber Mode
9/125μm 50/125 μm
Fiber Count
Simplex/Duplex
Fiber Grade
Bend Insensitive
Cable Diameter
0.9 mm/2.0mm/3.0mm
Cable Jacket
PVC/LSZH
Parameter
SC/LC/FC/ST/MPO/DIND4/MU Connector
SM
MM
PC
UPC
APC
PC
Insertion loss
≤0.25dB
≤0.25dB
≤0.25dB
≤0.25dB
Return loss
≥50dB
≥55dB
≥60dB
/
operating wavelength
1310nm, 1550nm
850nm, 1300nm
Ferrule Concentricity
≤1um
≤4um
Wavelength
1310 nm/1550 nm
Durability
>1000 Times
Working temperature
-40~85°C
Storage temperature
-40~85°C

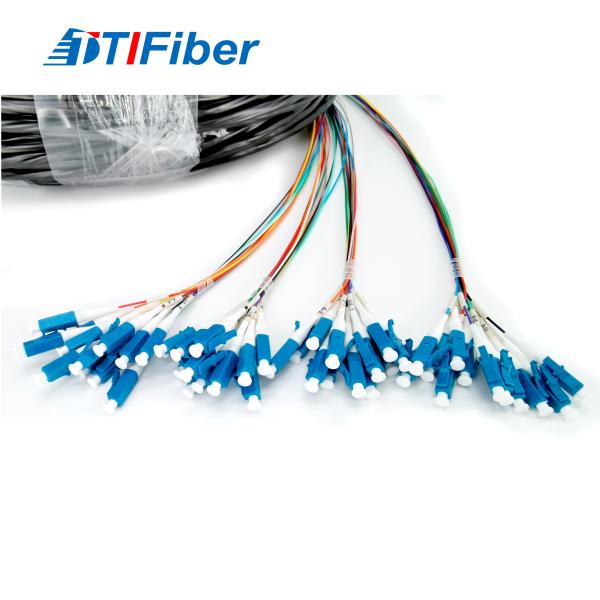

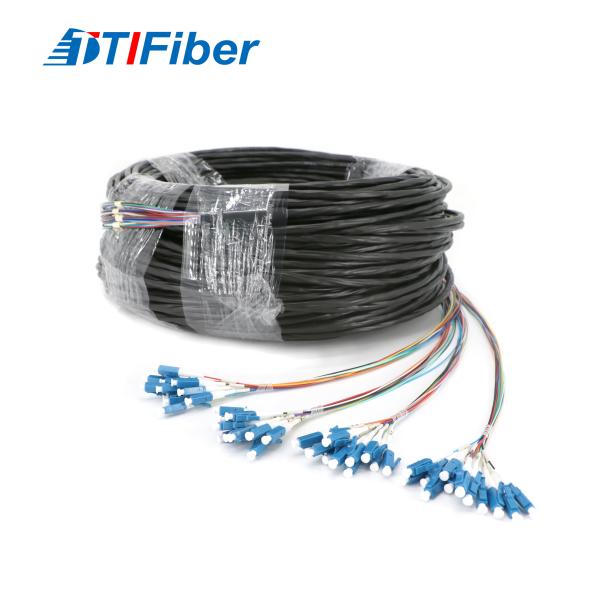

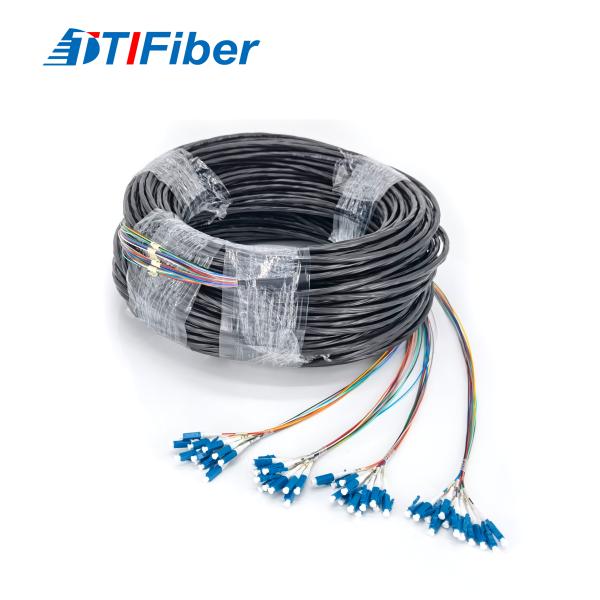

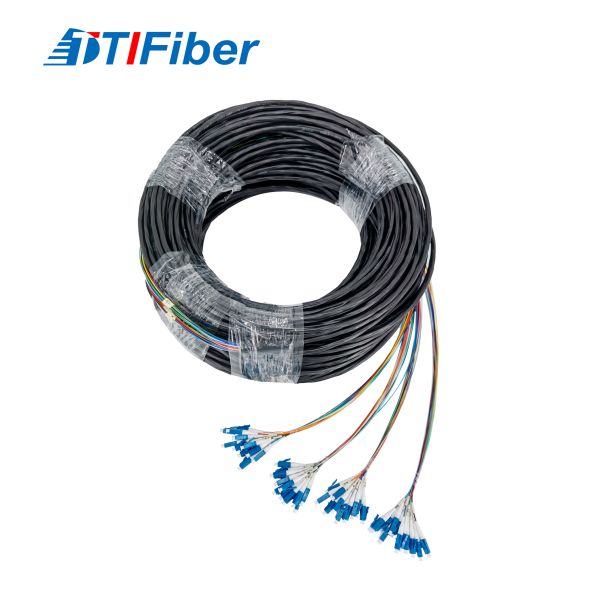

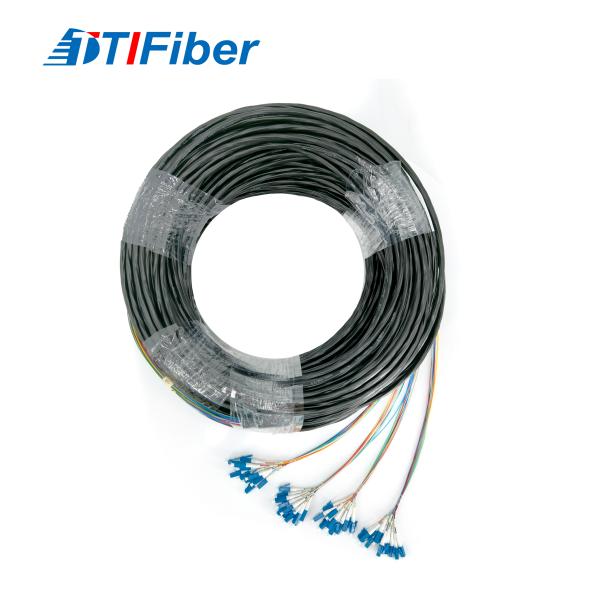

4. Product Details

LC SM 48 Core Waterproof Fiber Optic Pigtail Patch Cord For FTTH FTTX

LC SM 48 Core Waterproof Fiber Optic Pigtail Patch Cord For FTTH FTTX

LC SM 48 Core Waterproof Fiber Optic Pigtail Patch Cord For FTTH FTTX

LC SM 48 Core Waterproof Fiber Optic Pigtail Patch Cord For FTTH FTTX

5. FAQ:

1. Why choose TTI FIBER ?
(1) Professional manufacturer: Low MOQ, free samples are available.
(2) Quality assurance:Stable high quality.
(3) Customers solutions:Quick.
(4) Win-Win Price:Save much costs, bring more benefits for customers.

2. Do you accept OEM,ODM?
Yes, we accept them .

3. Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.

4. What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.

5. What's the Payment?

We accept all online payments .
