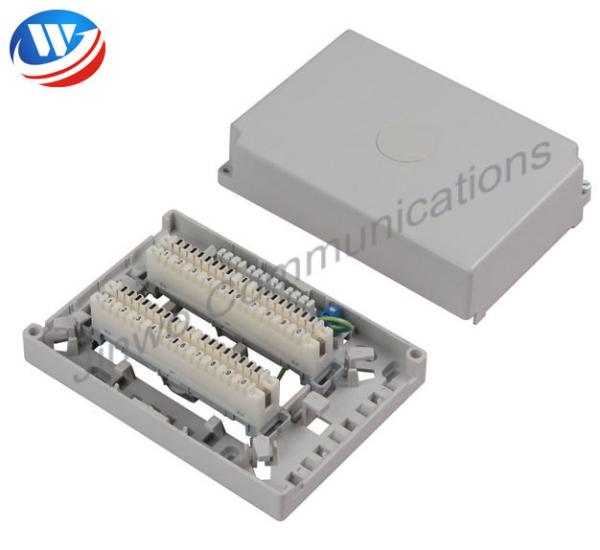

White Screw Lock Cable Junction Box 20 Pairs Weatherproof DB Box
White Screw Lock Cable Junction Box 20 Pairs Weatherproof DB Box
White Screw Lock Cable Junction Box 20 Pairs Weatherproof DB Box
White Screw Lock Cable Junction Box 20 Pairs Weatherproof DB Box
Specifications
Brand Name :
JINWO
Model Number :
JW-DB-67
Certification :
ROHS
Place of Origin :
NINGBO,CHINA
MOQ :
100
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000pcs/each month
Delivery Time :
8work days
Packaging Details :
1pcs/inner box
Product :
20Pairs Indoor Distribution Box
Material :
ABS Or PC&ABS
Color :
Light Grey Or White
Type :
For 20 Pairs Distribution Box, Screw Lock
Size :
169*118.5*54.5mm
Application :
Telecommunication
High Light :
Indoor distribution box, Cable distribution cabinet
Description

201 Series Connection Box KRONE CONNECTION BOX 220A 20 Pairs Indoor Termination Box

Feature:
1) Can be mounted with LSA-PLUS 10-pair distribution or connection module
2) Waterproof box, suitable for outdoor wire distribution
3) Material of house: ABS + PC fire-resistant
4) Including stainless steel mounting frame, but modules to be ordered separately
5) Including 1 back mount frame
6) Compatible with Krone modules

Specifications:
1. Environment condition: -5-40 degree Celsius ;Relative humidity <85% (+30 degree Celsius);Atmospheric pressure: 70-106KPa ;
2. The modules are compatible with KRONE LSA-PLUS modules.
3. The design of contacts basing on the principle of airtight contacting makes a completely reliable connection between the contacts and wires
4. Pulling-out force: tin bronze and silver plating (20-40 uinch), pulling-out force not less than 25N ;
5. Internal diameter of connection wire: 0.4-0.6 mm
6. The performance of anti-burn: PBT (UL94V-0)or anti-burn ABS (UL94V-0),Combustibility achieved GB/T 5169.7-1985 standard ;
7. Insulated resistance: under standard atmospheric pressure ,Insulated resistance no less than 1,000M ohm between the two disjunct connections ;
8. Intermediate resistance between the reed terminators: no more than 7m ohm between intermediate reed under the standard examination condition ;
9. Intermediate resistance: no more than 3m ohm under standard examination condition ;
10. Dielectric strength: according to industry standard
11. Specification: 100pairs ,every specification has connection or disconnection types
12. Life: durability 200 cycles

White Screw Lock Cable Junction Box 20 Pairs Weatherproof DB Box
