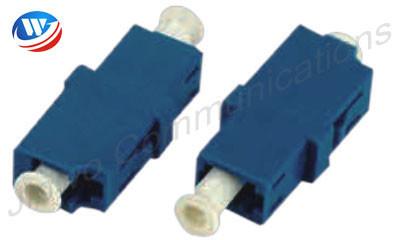

UPC APC Simplex Fiber Optic Adapter FTTX FTTH Single Mode Fiber Coupling
UPC APC Simplex Fiber Optic Adapter FTTX FTTH Single Mode Fiber Coupling
Specifications
Brand Name :
JINWO
Model Number :
JW-AP-007
Certification :
ISO9001
Place of Origin :
NINGBO
MOQ :
1000pcs
Price :
negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000each month
Delivery Time :
8work days
Packaging Details :
Blister Box
Type :
Fiber Adapter & Connectors, PC/UPC/APC
Color :
Beige,Blue,Green,Aqua
Use :
FTTH
Sleeve :
Zirconia
Durability :
>1000 matings
Operating Temperature :
-40°~75°
Description

Coupler For FTTX FTTH ODN SolutionLC UPC/APC Singlemode Mulitimode Simplex Optical Fiber Adaptor

Supply Ability
Supply Ability
10000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Packing By Carton
Lead Time:
Quantity(Pieces) 1 - 1000 1001 - 5000 >5000
Est. Time(days) 7 12 To be negotiated
Products Description
Introduction :
Optical fiber adapter (also known as flange) is the alignment connection component of optical fiber active connector. The adapter
with different interface between two ports is called conversion adapter.

Product characteristics :
Good compatibility, high reliability and stability of ceramic or bronze conduits, high dimensional accuracy, good repeatability,
good interchangeability, good wear resistance, good temperature characteristics, flexible and convenient use

Product type :
FC/PC FC/UPC FC/APC SC/PC SC/UPC SC/APC ST/PC ST/UPC SC/APC

Optical fiber adapters can be divided into SC, FC and ST.
SC stands for Standard Connector.
ST stands for Straight Tip.
FC stands for Fiber Connector.

"SC" joint is a standard square joint. It is made of engineering plastics and has the advantages of high temperature resistance
and not easy to oxidize. SC connector is commonly used for side light interface of transmission equipment.
The shape of LC joint is similar to that of SC joint and smaller than that of SC joint.
FC joints are metal joints, which are usually used on ODF side. Metal joints can be plugged more times than plastic joints.
Specification parameter :
Color
Blue,Green,Grey,etc
Quality
High quality fiber optic adapter
Type
PC/UPC/APC
Sleeve
Zirconia
Durability
>1000 matings
Return Loss
> 50db
Insertion Loss
<0.2db
Operating Temperature
-40℃~75℃
OEM
Yes
Certification
ISO,ROHS,CE

UPC APC Simplex Fiber Optic Adapter FTTX FTTH Single Mode Fiber Coupling
