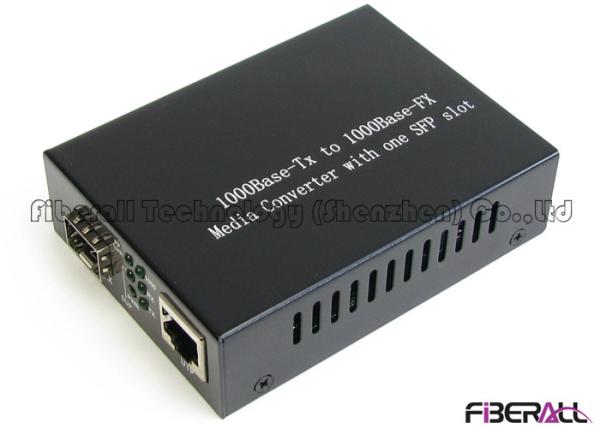

FAMC-SFPQ2, Gigabit SFP Fiber Media Converter Suitable For 1.25G SFP Optical Transceiver

Manageability of fiber media converter is mainly reflected in two aspects, through long-term practice and large-scale applications, optical fiber media converter functions as a transmission unit in network, the main task of management is fault monitoring, in response to this task, optical fiber media converter use link fault alarm and twisted pair link alarm, and independent network management based on SNMP to assist the management personnel.

optical link fault alarm is a optional configuration of fiber media converter, when starting the optical link alarm function, if the fiber path fails, the media converter will automatically block the connecting of electrical port, resulting link down with the uplink network equipment , so that can get the transmission fault instructions from the network management platform of switch.

2, twisted pair link fault alarm is also an optional configuration. When twisted pair link alarm function is started, if there is failure on network, the fiber media converter will automatically block the connecting of optical port, lead to link down with the uplink network equipment, so that indication of failure can be gotten from the management platform of switch, and it also can prolong the life of optical modules.

3, independent network management system of fiber media converter is based on the standard SNMP network management protocol, it provides graphical management and monitoring functions for all fiber media converters. It is composed of system management graphical interface, management module and interface module. Each agent can manage up to more than 2000 pieces 16 slot media converter chassis.

Main Parameters

Product Characteristics Of FAMC-SFPQ2

1, Supported ports: optical fiber port LC or SC; RJ45 for twisted pair;

2, Auto-negotiation rate and full/half-duplex transfer mode are supported at twisted pair port;

3, Support auto adaptation MDI/MDIX without cable selection;

4, Conflicting frames detection in half-duplex and flow control in full duplex;

5, LEDs for status indication of optical power port and UTP port;

6, Up to 1024 MAC address storage;

7, External power converter;

8, Optical characteristic depends on the SFP module.
