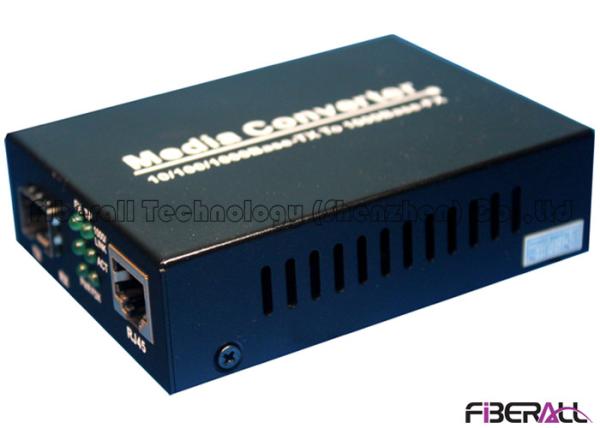

FAMC-SFPG,10/100/1000M Gigabit Ethernet Fiber Media Converter With One SFP Slot LC Or SC

Fiber media converter is an Ethernet transmission medium that converts short twisted pair electrical signals to be long distance optical signals. It is generally used in Ethernet networks which cannot be covered by LAN cables and have to use optical fiber to extend the transmission distance, and are usually used in the access layer of broadband metropolitan area networks.

In traditional Ethernet, the main connecting media is twisted pair. The limit of twisted pair is the transmission distance is about 100 meters only, the transmission distance is too short so it restricts the development of network, at the same time twisted pair is with large electromagnetic interference, which will undoubtedly affect the quality of communication data. Fiber optic media converter’s connection medium is optical fiber. The low loss and high resistance to electromagnetic interference of optical fiber make the transmission distance of the network expand from 100 meters to 2 kilometers, even tens of kilometers, and even hundreds of kilometers. At the same time, the quality of data communication has been greatly improved. He makes the connection between servers, repeaters, hubs, terminals and terminals easier.

Main Features Of SFP Media Converter

1, 10/100/1000Base-T to 1000BASE-FX Converter;

2, Data rate of fiber port 1.25Gbps~4Gbps;

3, With One RJ45 port, support Auto MDI/MDIX;

4, With One SFP slot (can be with SFP transceiver);

5, Plug-and-Play;

6, Support Link Alarm;

7, Support Voltage Monitor;

8, Support Jumbo Frame (64-9216 Byte);

9, Auto-detection of half/full duplex transfer mode for Tx port;

10, Provide switch configuration of half/full duplex transfer mode for Fx port;

11, Extend fiber distance up to 0~2Km for MM fiber and 10-100km for single-mode fiber;

12, Complies with FCC Part 15 Class A and CE Mark.

Product Specification

Note: Fiberall also provide SFP transceiver compatible with the SFP media converter.
