FA-EONU8010B FTTH Optical Network Termination Ont Device For Epon 12VDC
FA-EONU8010B FTTH Optical Network Termination Ont Device For Epon 12VDC
FA-EONU8010B FTTH Optical Network Termination Ont Device For Epon 12VDC
FA-EONU8010B FTTH Optical Network Termination Ont Device For Epon 12VDC
FA-EONU8010B FTTH Optical Network Termination Ont Device For Epon 12VDC
FA-EONU8010B FTTH Optical Network Termination Ont Device For Epon 12VDC
Specifications
Brand Name :
Fiberall or OEM
Model Number :
FA-EONU8010B
Certification :
CE, ISO
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Delivery Time :
4-7 Days
Packaging Details :
Cardboard box/Carton
Product Name :
Optical Network Unit
Uplink Wavelength :
1310nm
Downlink Wavelength :
1490nm
Application Type :
Epon FTTH
LED Indicator :
Available
Condition :
New
Standard Compliant :
IEEE802.3ah
Housing Material :
ABS Plastic
HS Code :
8517622990
Description

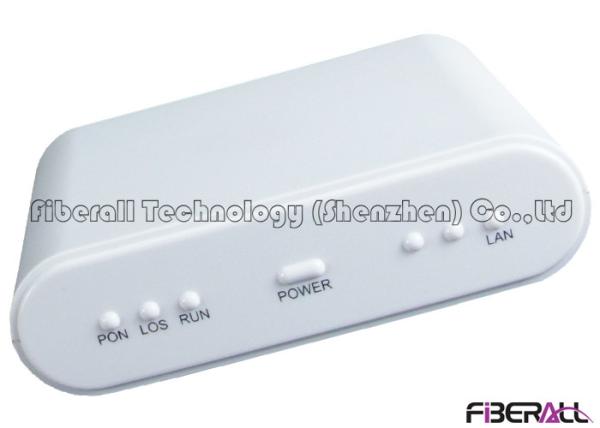

FA-EONU8010B , FTTH ONU Optical Network Unit For Epon With 1 PON And 1 GE LAN Port

FA-EONU8010B is a bridge equipment to the home, it access home or SOHO users through the EPON technology with ultra broadband. It has a PON uplink port that connects to the terminal equipment through optical fiber. Its compact design support many installation ways like desktop, wall mounted or install in corridor box.

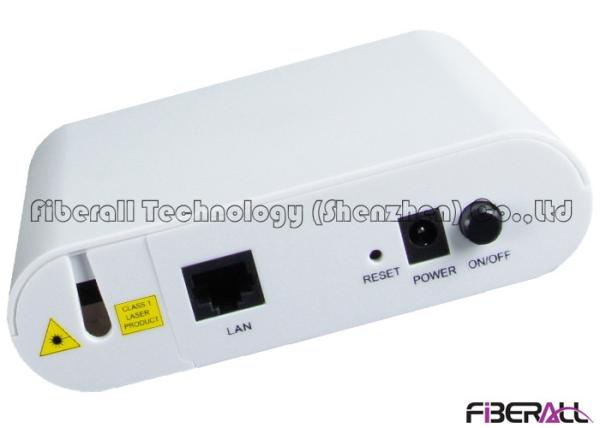

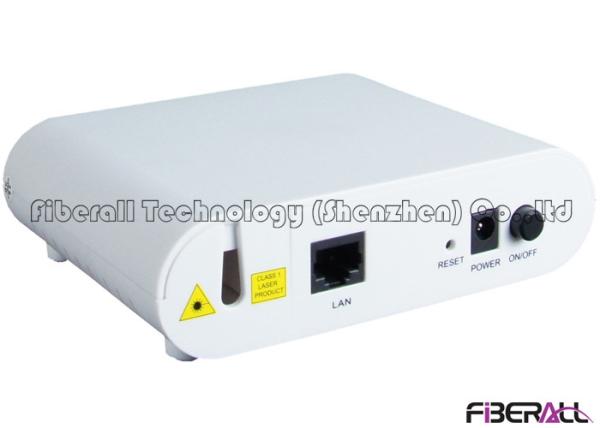

Ports configuration from left to right side is : one PON port to connector OLT equipment via fiber , one LAN port to link user’s device via twisted pairs , one reset button used to restore the ONU , press the hole for more than 3 seconds with a needle , the system will restore to the default condition , one power interface to connect outer supply , one power on and offer button to connect or disconnect power .

Product Features Of FA-EONU8010B ONU

Support Ethernet service layer 2 switching and wire-speed forwarding of uplink and downlink services

Support frame filtering and suppression

Support standard 802.1Q Vlan function, support VLAN conversion, support 4094 VLANs (802.1Q)

Support Dynamic Bandwidth Allocation (DBA) function

Support QoS, including traffic flow classification, priority marking, queue and dispatch, traffic shaping and traffic control, etc

Single ONU supports up to 1 LLID.

Support IGMP Snooping

Support Ethernet port rate limit loop detection

Support power failure alarm

Support lightning protection for power supply and lightning protection for service port, protection against lightning surges meet requirement of ITU-TK.21

Compiles with CE, RoHS and FCC Standards

EMC / EMI : VCCI Class B , FCC Part 15B Compliant

Safety: Meet requirement on UL 60950

Technical Parameters

Port Configuration 1 PON port ( 1.25G )
1 10/100/1000M LAN port ( GE Port )
Power Supply 12VDC
Power Consumption 6W
Working Temperature 0～55℃
Storage Temperature -30～60℃
Relative Humidity 10～90% (non-condensing)
Compliant Standard IEEE802.3ah


FA-EONU8010B FTTH Optical Network Termination Ont Device For Epon 12VDC
