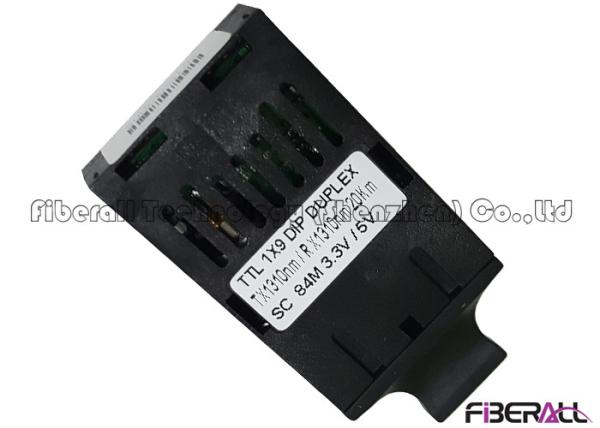

84Mbps TTL 1x9 DIP SC Dual Fiber Optic Transceiver 5V Power Supply
84Mbps TTL 1x9 DIP SC Dual Fiber Optic Transceiver 5V Power Supply
84Mbps TTL 1x9 DIP SC Dual Fiber Optic Transceiver 5V Power Supply
84Mbps TTL 1x9 DIP SC Dual Fiber Optic Transceiver 5V Power Supply
Specifications
Brand Name :
Fiberall or OEM
Model Number :
FA-TC90US13-20
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union, MoneyGram,PayPal
Delivery Time :
3-5 days
Packaging Details :
Blister Box/Carton
Certification :
CE,FCC, ROHS
Product name :
1x9 transceiver
Module type :
1x9
Interface Type :
SC
Fiber channel :
Duplex
Suitable fiber :
SM
Wavelength :
1310nm
Data rate :
84Mbps
Distance :
20Km
Description

FA-TC90US13-20, 84Mbps TTL 1x9 DIP SC Dual Fiber Optic Transceiver SM 20KM 1310nm 3.3V Or 5V

Operating Temperature Range of Optical Transceiver: working temperature is an important factor effect the working performance of fiber optic transceiver. High temperature or low temperature may make the transmission speed become slow and even bring bit error rate and packet loss. Fiberall will provide Fiber Optic Transceiver with default temperature range if buyer have not special requirement and if you have special requirement on operating temperature range for optical transceiver, please kindly let us know when you request quotation. Price for default operating temperature range, extended temperature range and industrial temperature range are different. The reference temperature is as below:

Default temperature range: 0°C ~70 °C

Extended temperature range:-5°C to 85°C

Industrial temperature range: -40°C to 85°C

Main Features Of FA-TC90US13-20

1, Standard 1×9 package with 9 pins on the bottom of the module;

2, Dual fiber optical transceiver;

3, Operating wavelength: 1310nn;

4, Transmitter section use 1310nm FP Laser;

5, Single +3.3V / +5V power supply;

6, Standard TTL data output with signal detect indication, compatible with CMOS level;

7, Package with SC, FC or ST connector;

8, Suitable for fiber access network and PDH systems with bit rate up to 84Mbps.

Absolute Maximum Ratings

Operating temperature(℃) －20～＋70 Lead soldering temperature(℃) <260
－40～＋85
Storage temperature(℃) －40～＋85 Soldering duration(Sec) <10

Pin Connections

PIN Name Level Remarks
1 GNDR Receiver section grounded
2 RD TTL/LVTTL Date output of receiver section
3 NC No connect
4 SD TTL/LVTTL Optical alarm of receiver section, low level when no light
5 VccR Positive power of receiver section, normally +5V or 3.3V
6 VccT Positive power of transmitter section, normally +5V or 3.3V
7 NC No connect
8 TD TTL/LVTTL Date input of transmitter section
9 GNDT Transmitter section grounded

84Mbps TTL 1x9 DIP SC Dual Fiber Optic Transceiver 5V Power Supply
