Jacketed Figure 8 Fiber Optical Cable With Self Supporting Wire Messenger
Jacketed Figure 8 Fiber Optical Cable With Self Supporting Wire Messenger
Jacketed Figure 8 Fiber Optical Cable With Self Supporting Wire Messenger
Jacketed Figure 8 Fiber Optical Cable With Self Supporting Wire Messenger
Specifications
Brand Name :
Fiberall or OEM
Model Number :
FA-OC-GYTC8S-96
Certification :
RoHS, UL
Place of Origin :
China
MOQ :
2KM
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union
Delivery Time :
5-10 days
Packaging Details :
Drum
Product Name :
Figure 8 Fiber Cable
Cable Type :
Figure 8
Application :
Self-supporting Aerial
Outer Sheath :
PE
Jacket Color :
Black
Messenger wire :
Steel wires
Strength member :
Single steel wire
Armored :
Steel tape or aluminum tape
Description

FA-OC-GYTC8S-96, 96 Fibers Figure 8 Outdoor Fiber Optic Cable With Self-supporting Wire Messenger

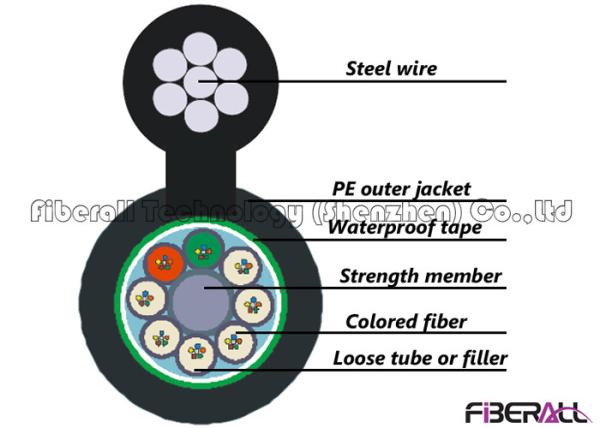

The GYTC8S Outdoor Fiber Optic Cable is with reinforced messenger wire, PE inner sheath, PE outer jacket, corrugated steel tape, filler, loose tube, jelly, metallic strength member, colored optical fiber and filling compound.

Main Features Of FA-OC-GYTC8S-96

Adopted to outdoor distribution and mainly used in self-supporting aerial

Water barrier is between steel tape ( or APL ) and cable core ( stranded loose tube ) ensure the cable with strong water-resistance performance

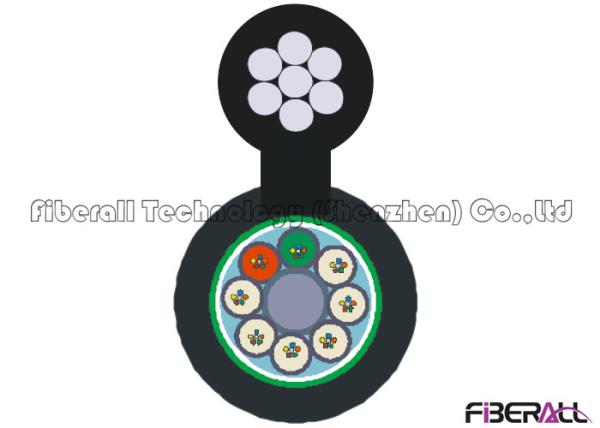

Figure 8 cross section

With steel wire as messenger (stainless steel or galvanized steel)

Double coated PE is available for option

Excellent waterproof ability

The steel armour is with excellent anti-crush properties and tensile strength

Good anti-bullet properties

Messenger wire with excellent anti-pull performance and easy for installation

Suitable for LAN, and long distance cabling

Rodent-proof

Storage, transportation and operation temperature range -40~70℃

Excellent mechanical and environmental performance.

Optical Characteristics

G.652 G.655 50/125 µm 62.5/125 µm
Attenuation(+20℃) @ 850 nm ≤ 3.0 dB/km ≤ 3.0 dB/km
@1300 nm ≤ 1.0 dB/km ≤ 1.0 dB/km
@1310 nm ≤ 0.36 dB/km ≤ 0.40 dB/km
@1550 nm ≤ 0.22 dB/km ≤ 0.23 dB/km
Bandwidth(Class A) @ 850 nm ≥ 500 MHz·km ≥ 200 MHz·km
@1300 nm ≥ 1000 MHz·km ≥ 600 MHz·km
Numerical Aperture 0.200 ± 0.015 NA 0.275 ± 0.015 NA
Cable Cut-off Wavelength lcc ≤ 1260 nm ≤ 1450 nm

Cable Specification

Model Fiber account CABLE OD(mm) CABLE HELGHT(㎜) Nominal Weight(㎏/㎞) Max.Tension (N) Max.Crushing Resistance (N/100 )
Short-term Long-term Short-term Long-term
GYTC8S 2-24 9.8 18.8 200 7100 3500 2000 1000
GYTC8S 26-36 10.3 19.3 210 7100 3500 2000 1000
GYTC8S 38-60 10.7 19.7 220 7100 3500 2000 1000
GYTC8S 62-72 11.3 20.3 245 7100 3500 2000 1000
GYTC8S 74-96 12.9 21.9 270 7100 3500 2000 1000
