FA-OC-GYTS-12, Armoured Outdoor Fiber Optic Cable GYTS With Loose Tube And Steel Tape 12 Fibers

GYTS/GYTA Fiber Cable is with wide bandwidth, fast transmission speed, good confidentiality, anti electromagnetic interference, good insulation, long service life and good chemical stability.

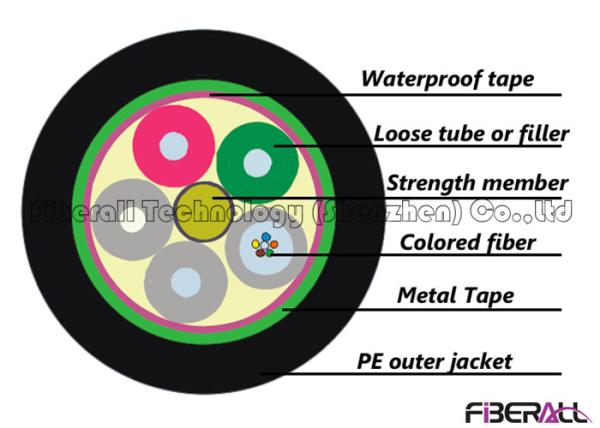

The cable structure is to put 9/125μm or 50/125μm single-mode fiber or multimode fiber 62.5/125μm into loose tube made of high grade water blocking material and fill the loose tube with water blocking material. The center of the cable core is a metal reinforcement core. For multicore fiber optic cables, a PE sheath is required for the central reinforcement. The stranded loose tube and the filling rope surround the center reinforcement core and form to be compact and circular cable core. The gap in the cable core is filled with water blocking fillers. Double sided corrugated steel strip (PSP) extruded with polyethylene sheath (PE) to complete a fiber cable.

Main Characteristics Of FA-OC-GYTS-12

1, It is suitable for duct or aerial laying;

2, Armoured steel tape provides anti-crush property;

3, Good mechanical and temperature performance;

4, High strength loose tube that is hydrolysis resistant;

5, Loose tubes or fillers stranded around the metallic central strength member and form in to a compact and circular cable core;

6, Special tube filling compound ensure critical protection for fiber;

7, The cable core is filled with cable filling compound;

8, Specially design and compact structure is good at preventing loose tubes from shrinking;

9, An Steel tape or APL is applied around the cable core and wrap by a PE sheath;

10, Each loose tube contains double coated single mode or multi mode fibers;

11, PE sheath protects cable form ultraviolet radiation;

12, With bullet resistant performance.

Technical Parameters Of Single Mode Fiber

Technical Parameters Of Multi Mode Fiber
