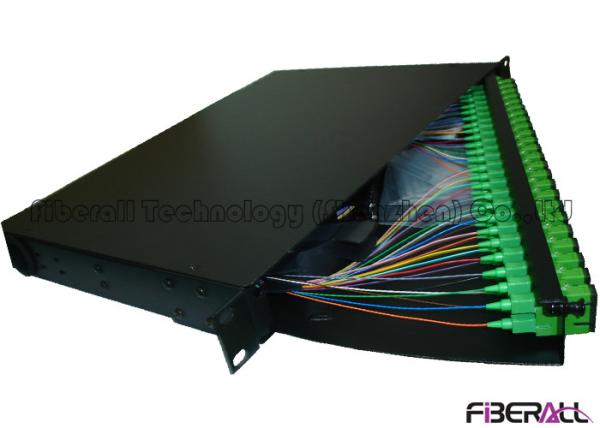

FA-FDR1MR48B-SCA , Rotate Type Fiber Optic Patch Panel With 48 SC APC Fiber Optic Pigtail

Pre-loaded Type Fiber Optic Patch Panel

Fiberall provide pre-loaded type fiber patch panel, wall mounted patch box and terminal box. If you always know which fiber type and which connector you need, we will suggest you to order the full loaded type. The full loaded one is with basic accessories like fiber tray, storage tray, protection sleeve, nylon ties and so on and fiber pigtail and adapter. The operator will not need to install the pigtail and adapter on site so they can strip and splice directly, it will save the operation time and also avoid broken duding loading and the pre-installed pigtail is in better order for easy distinguish and management. But if you do not know the user will use which fiber and connector, you can order the unloaded box, or the one loaded with fiber adapter only.

Product Parameters Of FA-FDR1MR48B-SCA

Main Characteristics Of Rotate Type Fiber Optic Patch Panel

1, Rotate style is rotating out from left side but not pull out from front side

2, It is a useful design for frame with door or frame located in narrow place & corner which is not convenient to fully open or operate from right side.

3, Easy to operate and convenient maintenance

4, Suitable for 19 inch standard fiber optical distribution cabinets or frame.

5, Housing is cold-roll steel sheet with electrostatic painting

6, ABS plastic fiber tray inside, fiber capacity 12 or 24 cores each tray

7, Four fiber cable entries at rear or sides

8, Cable entry is suitable for single fiber cable, bundle fiber cable or ribbon fiber cable.

9, Various painting color for options like white, black, grey and so on.

10, Cable entrance are covered with rubber dust proof covers which can be inserted the fiber cable into the panel directly
