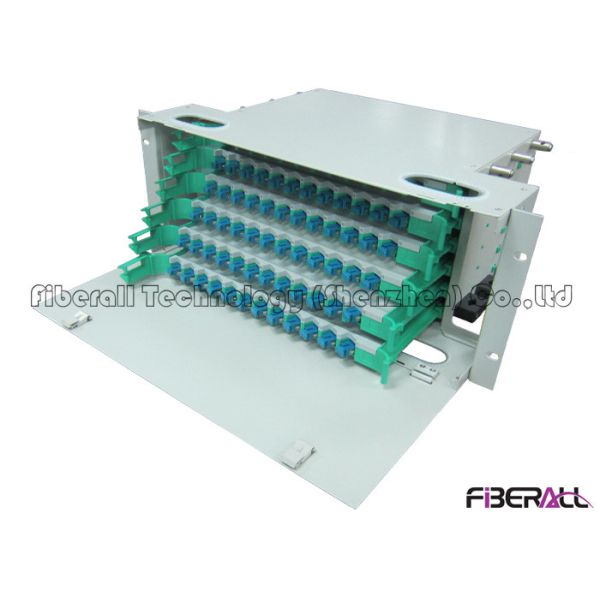

FA-FDR4UM72G , Rack Mounted Optical Distribution Frame Unit With 72 Fibers Slide Out Fiber Tray

How To Choose The Right Fiber Patch Panel?

Since Fiberall provide many kinds of fiber patch panel and fiber terminal box. Some partner may be confused by the various options. So how to select the correct one? Firstly you need to know the install way you want, mainly two ways rack mounted and wall mounted, if it is rack mounted, you need to choose the one with standard 19 inch width then it can be installed with other cabinet and distribution frame. If it is wall mounted, you can choose wall mounted patch box or terminal box according to your requirement on size and fiber capacity. Send, you need to consider the fiber capacity, generally the 1U rack mounted patch panel is with max. 48 fibers capacity, if you need bigger capacity, you can consider the one with higher height like 2U, 4U and so on. If you need small capacity, fiber terminal box is the best choice. Third, you need to consider the adapter type, of course most our box can be with different adapter panel, but you still need to decide which type you need so that we can provide the right one. SC, LC, ST and FC are available for options. And you also need to consider the application environment, if it is outdoor, it is better to use the waterproof box and if it is on corridor, the wall mounted type will be better, if it is in data center, they always use rack mounted.

Benefits Of Optical Fiber Distribution Frame Unit

ABS module is with light weight and easy for operation

Splicing and distribution integration module is with adapter and pigtail, so it can connect and splice directly without extra assembly.

With winding ring to manage the extra fibers and makes the fiber distribution tidiness and can be protected in security.

The slide out tray is convenient for operation.

Fiber patching is clear and tidy

Label for splicing, fiber channel are completed and clear

Reliable grounding setting

Install adaptors on the front side of optical fiber splice tray in a bayonet way at an oblique angle of 30 degrees to ensure curve radius of optical fiber and prevent eyes from being damaged by laser light at the same time

Comprehensive accessory kit for installation, cable entry and fiber management

Suitable for fusion splicing, direct termination and pre-terminated cables

Suitable for 19”, 21" and 23" racks

Full loaded with adapter and pigtail or empty product are available

Different height 1RU, 2RU, 3RU 4U to 8RU with different capacity for options

Suitable for, buddle, ribbon and single fiber

Product Parameters Of FA-FDR4UM72G
