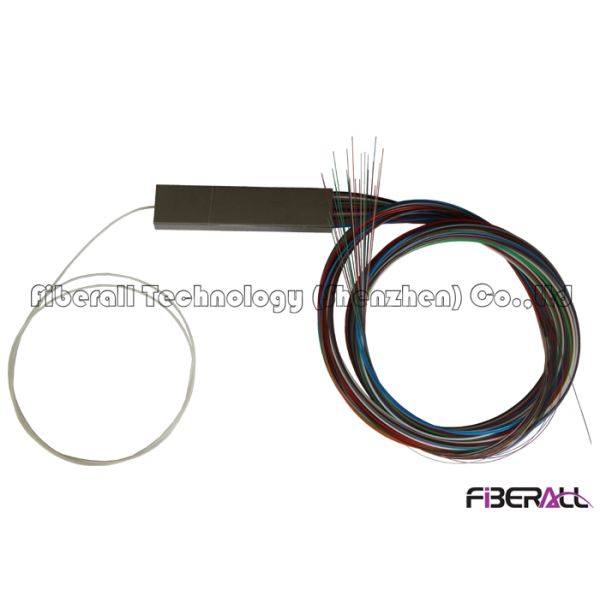

Low Loss Fiber Optic Cable Splitter , 1x16 PLC Splitter For Optical Distribution Network
Low Loss Fiber Optic Cable Splitter , 1x16 PLC Splitter For Optical Distribution Network
Low Loss Fiber Optic Cable Splitter , 1x16 PLC Splitter For Optical Distribution Network
Low Loss Fiber Optic Cable Splitter , 1x16 PLC Splitter For Optical Distribution Network
Specifications
Brand Name :
Fiberall or OEM
Model Number :
FA-PLCM1×16SP
Certification :
RoHS
Place of Origin :
China
MOQ :
1 piece
Price :
Upon Request
Payment Terms :
T/T, L/C, Western Union, MoneyGram, PayPal
Delivery Time :
Upon Order Qty
Packaging Details :
Blister Box/Bubble Wrap/Carton
Product Name :
Optical Fiber PLC Splitter
Channel Quantity :
1x16
Package Type :
Mini Steel Tube
Fiber Type :
SM G657A1 or Customized
Input Cable :
0.9mm White
Output Cable :
0.9mm White or Color
Optical Ratio :
Equal Among Channels
Jacket Material :
Low Smoke Zero Halogen or PVC
Working Wavelengths :
Wide range 1260 ~ 1650 nm
Cable Length :
Default 1.5m or Customized
Description

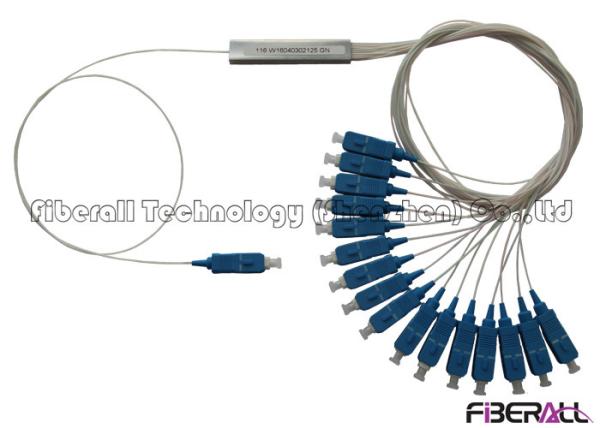

1x16 Mini Type Fiber Optic PLC Splitter for Optical Distribution Network

How To Use Fiber PLC Splitter Outdoor?

The main problem for using fiber PLC splitter outdoor is waterproof . To solve the waterproof problem , we have to install the optical splitter into waterproof box . Fiberall provide many waterproof box with different design . The most popular one is plastic FDB box , it is with every excellent waterproof ability , the downward input and output design can effectively prevent rainwater from entering the box , and its compact size , plastic material make it much lighter than the metal box and easy for wall mounted . Another type is metal distribution box . It is with much bigger dimension and inner space so that it is much convenient for field operation . But is it heavy and corrosion may happened after years . Fiber splice closure with adapter panel also suitable for splitter , its absolute seal feature make it is able to be used in water and its International Protection grade can reach IP68 . But it always use in extreme environment which need to splice one fiber end with the fiber cable .

Technical Parameters Of 1x16 Mini Type Fiber Optic PLC Splitter

Fiber Channel 1x16
Operating Wavelengths 1260~1650nm
Insertion Loss(dB) Max. 13.7
Loss Uniformity(dB) Max. 1.0
PDL (dB) Max. 0.2
RL (dB) Min. UPC: 50 APC: 55
Directivity(dB) Min. 55
Optical Power(mw) Max. 300
Input / Output Fiber Type Bend Insensitive SM Fiber(ITU G657A)
Humidity Range(rh) 5% ~ 85%
Operating Temperature(° C) -40 ~ 85
Storage Temperature(° C) -40 ~ 85
Package Options Bare Fiber, Mini Steel Tube, ABS Module, LGX Box, Wall Mounted Patch Box, 1U or 2U Rack-Mount Patch Panel or Fiber Splice Joint Closure
Package Dimension Bare Fiber Type L*W*H mm 50x4x4
Mini Steel Type L*W*H mm 60x12x4
ABS Module Type L*W*H mm 120x80x20
LGX Box Type L*W*H mm 130x100x50
Rack Mounted Type L*W*H mm 1U 19”
Other Type L*W*H mm Customized

Applications

Fiber To The Village

Test equipment

Network Redundancy

Network Protection

Other Applications In Fiber Optic Systems

Features

1, Density Design

2, High Precision

3, Superior Uniformity

4, Low Insertion Loss and PDL

5, All Range Fiber Channel For Options

Four Compliant Standard Of Fiberall PLC Splitter


RoHS

YD/T 2000.1-2014 (China)

Telcordia GR-1209-CORE
Telcordia GR-1221-CORE

Low Loss Fiber Optic Cable Splitter , 1x16 PLC Splitter For Optical Distribution Network
