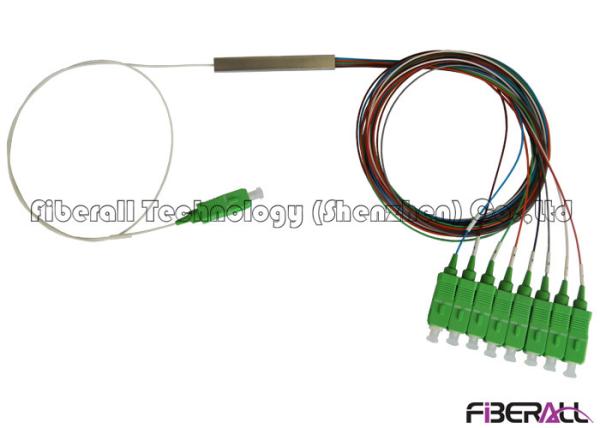

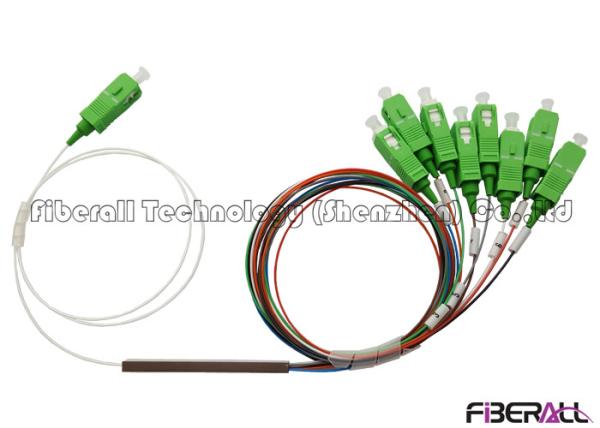

Mini Steel Tube Fiber Optic PLC Splitter 1x8 PLC Splitter For FTTH / PON
Mini Steel Tube Fiber Optic PLC Splitter 1x8 PLC Splitter For FTTH / PON
Mini Steel Tube Fiber Optic PLC Splitter 1x8 PLC Splitter For FTTH / PON
Mini Steel Tube Fiber Optic PLC Splitter 1x8 PLC Splitter For FTTH / PON
Mini Steel Tube Fiber Optic PLC Splitter 1x8 PLC Splitter For FTTH / PON
Mini Steel Tube Fiber Optic PLC Splitter 1x8 PLC Splitter For FTTH / PON
Specifications
Brand Name :
Fiberall or OEM
Model Number :
FA-PLCM1×8SA
Certification :
RoHS
Place of Origin :
China
MOQ :
1 piece
Price :
Upon Request
Payment Terms :
T/T, L/C, Western Union, MoneyGram, PayPal
Delivery Time :
Upon Order Qty
Packaging Details :

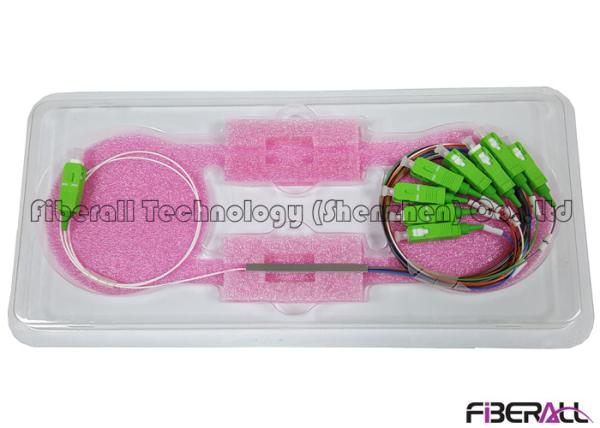

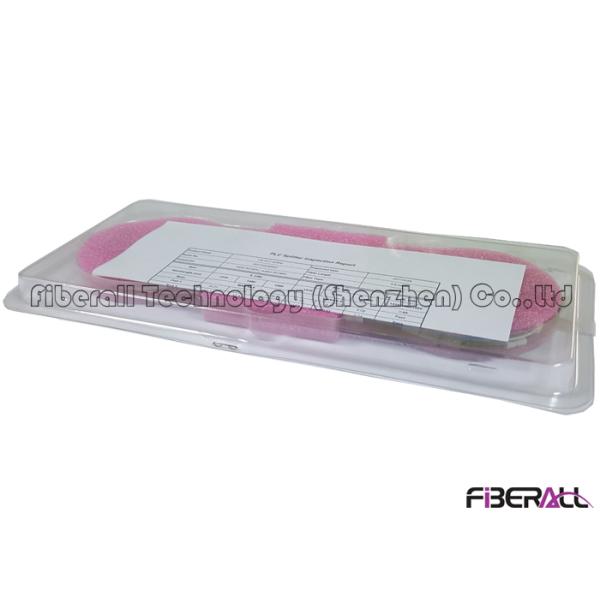

Blister Box/Bubble Wrap/Carton
Product Name :
Fiber Optic PLC Splitter
Fiber Channel :
1x8
Package Type :
Mini Steel Tube
Connector Type :
SC / APC
Fiber Type :
SM G.657A1 or Customized
Input Color :
White or Customized
Output Cable :
Eight Colors Or White
Optical Ratio :
Average
Wavelength Range :
1260 ~ 1650 nm
Cable Diameter :
0.9mm Tight Buffer
Cable Length :
Default 1.5m or Customized
Tube Dimension :
50x7x4mm
Description

1x8 Mini Fiber Optic PLC Splitter For FTTH With SC APC Fiber Connector

Fiberall Technology ( Shenzhen ) Co ., Ltd offer optical fiber plc splitter with various input and output fiber . As for bare fiber type , input is bare fiber and output is ribbon fiber . The mini steel tube type , both input and output are 0.9mm tight buffer . ABS module is with 2.0mm or 3.0mm cable as input and output . The LGX box is with mini stainless tube inside so it is also with 0.9mm input and output . Regarding the bare fiber and 0.9mm buffer , the partner can appointed color for both input and output . Theoretically we are also able to provide different color for 2.0mm cable , but it is only acceptable when the order qty is large because it is hard to customized the 2.0mm tube when the qty is small .

Technical Parameter of 1x8 Mini PLC Splitter

Fiber Ports 1x8
Operating Wavelength 1260~1650nm
Insertion Loss(dB) Max. 10.5
Loss Uniformity(dB) Max. 0.8
Polarization Dependent Loss (dB) Max. 0.2
Optical Power(mw) Max. 300
Return Loss(dB) Min. UPC: 50 APC: 55
Directivity(dB) Min. 55
Fiber Type Bend Insensitive SM G657A1 Fiber
Humidity Range(rh) 5% ~ 85%
Operating Temperature(° C) -40 ~ 85
Storage Temperature(° C) -40 ~ 85
Encapsulation Options Bare Fiber, Mini Steel Tube, ABS Module, LGX Box, Wall Mounted Patch Box, 1U or 2U Rack-Mount Patch Panel or Fiber Splice Joint Closure
Package Dimension Bare Fiber Type L*W*H mm 50*4*4
Mini Steel Type L*W*H mm 60*12*4
ABS Module Type L*W*H mm 120*80*20
LGX Box Type L*W*H mm 130*100*50
Rack Mounted Type L*W*H mm 1U 19”
Other Type L*W*H mm Customized

Application of Fiberall PLC Splitter

Passive Optical Networks ( PON )

Community Antenna Television ( CATV )

Fiber To The Home ( FTTH )

Long Haul Telecommunication

Optical Distribution Network ( ODN )

Fiber management System ( FMS )

OEM Options of Fiberall Fiber Optic PLC Splitter

Items Options
Fiber Channel 1X2, 1X4, 1X8, 1X16, 1X32, 1X64, 2X2, 2X4, 2X8, 2X16, 2X32, 2X64
Package Type Bare Fiber Type ( or Ribbon Fiber ), Round steel tube, Mini rectangle steel package, ABS box, Card type (LGX box), Rack mounted, Wall Mounted
Wavelength Range 1260-1650nm
Optical Ratio Average
Input Diameter Bare Fiber, 0.9mm, 2.0mm, 3.0mm
Output Diameter Ribbon fiber, 0.9mm, 2.0mm, 3.0mm
Jacket Color Blue , Orange , Green , Brown , Grey , White , Red , Black , Yellow , Purple , Pink, Aqua
Material of Jacket PVC or LSZH/LSOH/LS0H, Hytrel
Connector Type SC , LC , FC , ST , MU , DIN , E2000 and so on or without connector
End Face Polishing PC, UPC ( SPC ) or APC
Cable Length Default 1.5m Customized
Fiber Type Single Mode ITU. G657A1 or Customized
Test report YES
RoHS YES
Customized Label YES
Customized Print YES, only available for 2.0mm and 3.0mm cable based on MOQ
