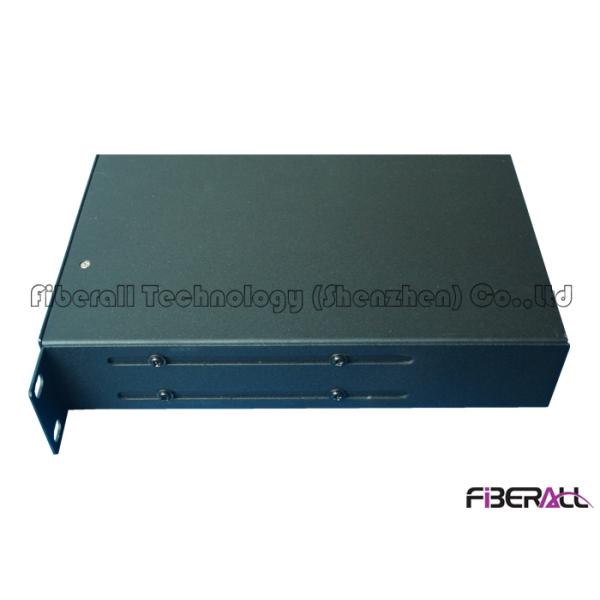

Rack Mounted Fiber Optic PLC Splitter 1x2 With Patch Panel And Adapter
Rack Mounted Fiber Optic PLC Splitter 1x2 With Patch Panel And Adapter
Rack Mounted Fiber Optic PLC Splitter 1x2 With Patch Panel And Adapter
Rack Mounted Fiber Optic PLC Splitter 1x2 With Patch Panel And Adapter
Specifications
Brand Name :
Fiberall or OEM
Model Number :
FA-PLCR1×2SA
Certification :
RoHS
Place of Origin :
China
MOQ :
1 piece
Price :
Upon Request
Payment Terms :
T/T, L/C, Western Union, MoneyGram, PayPal
Delivery Time :
Upon Order Qty
Packaging Details :
Blister Box/Bubble Wrap/Carton
Product Name :
Rack Mounted PLC Splitter
Fiber Channel :
1x2
Package Type :
Rack Mounted Patch Panel
Panel Dimension :
1U 19 Inch
Connector Type :
SC / APC
Splitter Inside :
ABS Module
Adapter Type :
SC / APC
Optical Ratio :
Average
Working Wavelengths :
Wide range 1260 ~ 1650 nm
Cable Length :
Default 1.5m or Customized
Description

Rack Mounted Fiber Optic PLC Splitter 1x2 Loaded In Patch Panel With Adapter

The rack mounted type fiber optic PLC splitter is a pre-loaded patch panel include optical splitter . It is composed of patch panel , PLC splitter ( generally ABS box ) and fiber optic adapter . Its capacity can be from 1x2 to 1x64 , some special ODM panel also can contains two 1x64 splitter with LC connector . The panel is with excellent protection and convenient for filed operating , the operator do not need to strip cable and fiber , do not need to do fiber splicing but just insert the connector to the adapter directly . Meanwhile , the rack mounted patch panel is suitable for fiber distribution frame and easy for centralized management . Fiberall also offer pre-loaded wall mounted patch box for both indoor and outdoor use .

Product Parameters

Fiber Ports 1x2
Operating Wavelengths 1260~1650nm
Insertion Loss(dB) Max. 4.0
Loss Uniformity(dB) Max. 0.6
PDL(dB) Max. 0.2
Return Loss(dB) Min. UPC: 50 APC: 55
Directivity(dB) Min. 55
Optical Power(mw) Max. 300
Input Fiber Type Bend Insensitive SM Fiber(ITU G657A)
Output Fiber Type Bend Insensitive SM Fiber(ITU G657A)
Humidity Range(rh) 5% ~ 85%
Operating Temperature(° C) -40 ~ 85
Storage Temperature(° C) -40 ~ 85
Package Options Bare Fiber, Mini Steel Tube, ABS Module, LGX Box, Wall Mounted Patch Box, 1U or 2U Rack-Mount Patch Panel or Fiber Splice Joint Closure
Package Dimension Bare Fiber Type L*W*H mm 50*4*4
Mini Steel Type L*W*H mm 60*12*4
ABS Module Type L*W*H mm 120*80*20
LGX Box Type L*W*H mm 130*100*50
Rack Mounted Type L*W*H mm 1U 19”
Other Type L*W*H mm Customized

Application Of Rack Mounted PLC Splitter

Optical Distribution Frame

Fiber Optic Distribution Network

Fiber Management System ( FMS )

Central Office

Fiber To The Building

Order Information of Fiberall PLC Fiber Splitter

Parameter Options
Channel 1X2, 1X4, 1X8, 1X16, 1X32, 1X64, 2X2, 2X4, 2X8, 2X16, 2X32, 2X64
Encapsulation Type Bare Fiber, Round steel tube, Mini rectangle steel package, ABS box, Card type (LGX box), Rack mounted, Wall Mounted
Wavelength 1260 to 1650nm
Optical ratio Average
Input / Output diameter Bare Fiber, Ribbon fiber , 0.9mm , 2.0mm , 3.0mm
Jacket of Input / Output Cable PVC or LSZH
Connector Type SC, LC, FC, ST, MU, DIN, E2000 and so on or without connector
End Polishing PC, UPC ( SPC ) or APC
Cable length 1.5 meters or Customized
Fiber Type SM G657A1 or Appointed
Test report YES
RoHS

YES
Other Customized Label, Customized Print
