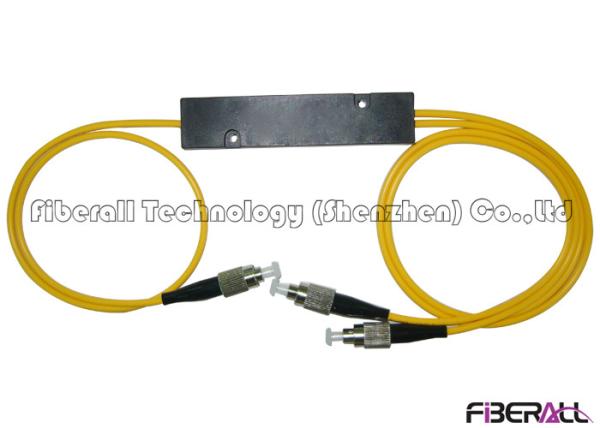

1x2 Fiber Optic PLC Splitter With Mini ABS Box / 3.0mm Cable / FC Fiber Connector
1x2 Fiber Optic PLC Splitter With Mini ABS Box / 3.0mm Cable / FC Fiber Connector
1x2 Fiber Optic PLC Splitter With Mini ABS Box / 3.0mm Cable / FC Fiber Connector
1x2 Fiber Optic PLC Splitter With Mini ABS Box / 3.0mm Cable / FC Fiber Connector
Specifications
Brand Name :
Fiberall or OEM
Model Number :
FA-PLCA1×2FP
Place of Origin :
China
MOQ :
1 pc
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union,MoneyGram, PayPal
Delivery Time :
3-5 Days
Packaging Details :
Blister Box/Bubble Wrap/Carton
Certification :
RoHS
Product Name :
Fiber Optical PLC Splitter
Condition :
New
Channel Qty :
1x2
Package Type :
Mini ABS Box
Connector Type :
FC/PC
Fiber Type :
SM G657A1 or Customized
Jacket Color :
Yellow
Optical Ratio :
Average
Jacket Material :
PVC or LSZH
Cable Diameter :
OD3.0mm or 2.0mm
Description

FA-PLCA1×2FP , 1x2 Fiber Optical PLC Splitter , Mini ABS Box , 3.0mm Cable , FC Fiber Connector

Brief Introduction for Fiberall Fiber Optic PLC Splitter

Fiberall optical plc splitter is designed with long term reliability and stability , superior performance and wide range of applications . They are widely use in optical transmission , telecommunication , data communication , wide area network , PON network , Access Network , long hual , subscriber loop , fiber to the home and building , CATV , fiber test equipment , optical fiber sensor and so on .

Technical Specifications

Parameter Channel 1x2
Premium Grade
IL Max. dB 4.0
Channel Uniformity Max. dB 0.6
PDL Max. dB 0.2
Operating Wavelength 1260~1650 nm
Return Loss UPC Min. dB 50
Directivity Min. dB 55
Operating Temperature ℃ –40~85
Storage Temperature ℃ –40~85
Connector / SC, LC, ST, FC etc.
Fiber Type / Complied to G.657A1 or Customized
Package Dimension Bare Fiber Type L*W*H mm 50*4*4
Mini Type L*W*H mm 50*7*4
Module Type L*W*H mm 100*80*10
Rack Type L*W*H mm 130*100*25
Other Type L*W*H mm Customized

Notes:

1 , All data above are based on room temperature +23 ℃ , insertion loss includes connector loss , IL of splitter without connectors should reduce 0.2 dB at least , other technical performance remain the same ;

2 , Standards Compliance: GR-1209-CORE , GR-1221-CORE .

Application of Fiberall Fiber PLC Splitter

Passive Optical Networks ( PON )

CATV Systems

Fiber To The Desktop

Long Hual Telecom

Product Features Of Fiberall Fiber Optic PLC Splitter

Small Size

Fiber With Small Bending Radius

Low Insertion Loss

Superior Uniformity

Standard Compliance


Telcordia GR-1209-CORE
Telcordia GR-1221-CORE
RoHS

YD/T 2000.1-2014 (China National)
