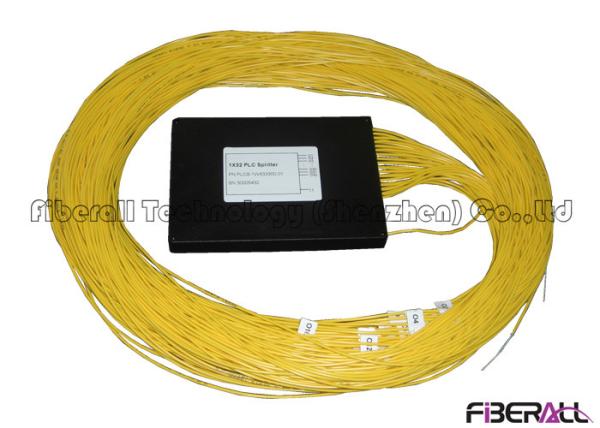

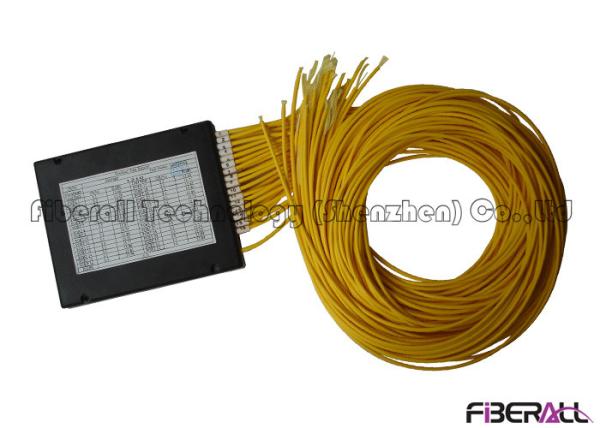

Low PDL 1x32 PLC Splitter With 2.0mm Cable , Optical Cable Splitter No Connector
Low PDL 1x32 PLC Splitter With 2.0mm Cable , Optical Cable Splitter No Connector
Low PDL 1x32 PLC Splitter With 2.0mm Cable , Optical Cable Splitter No Connector
Low PDL 1x32 PLC Splitter With 2.0mm Cable , Optical Cable Splitter No Connector
Specifications
Brand Name :
Fiberall or OEM
Model Number :
FA-PLCA1×32N
Certification :
RoHS
Place of Origin :
China
MOQ :
1 piece
Price :
Upon Request
Payment Terms :
T/T, L/C, Western Union, MoneyGram, PayPal
Delivery Time :
Upon Order Qty
Packaging Details :
Blister Box/Bubble Wrap/Carton
Product Name :
Optical Fiber PLC Splitter
Fiber Channel :
1x32
Package Type :
ABS Module
Fiber Type :
G657A1 or Customized
Jacket Color :
Yellow
Optical Ratio :
Average
Operating Wavelength :
1260 ~ 1650 nm
Input / Output :
OD2.0mm or 3.0mm
Module Dimension :
120x80x20mm
Condition :
Brand New
Description

FA-PLCA1×32N , Low PDL 1x32 Fiber Optic PLC Splitter With 2.0mm Fiber Cable Without Connector

Fiber Type of Optical PLC Splitter

The default fiber type of our PLC splitter is ITU. G675A1 . It is bend insensitive , there is no big change on performance even is it comes across large bending . Of course we also accept appointed fiber type if it is necessary . But please be advised that if we do not have stock for the appointed fiber , the order qty must reach the MOQ . Some partners is keen on unique fiber made by famous brand , but our suggestion is , some brand fiber is not widely use so its yield is very small and it is not easy to buy the fiber from the manufacturer , meanwhile its cost is very high . In fact the standard fiber can meet most of application requirement and their performance is no big difference with the famous brand fiber .

Technical Parameters of FA-PLCA1×32N

Parameter Unit 1x32
Premium Grade
Insertion Loss Max. dB 17.0
Channel Uniformity Max. dB 1.2
Polarization Dependent Loss Max. dB 0.3
Optical Power Max. mw 300
Operating Wavelength 1260~1650 nm
Return Loss UPC/APC Min. dB 50/55
Directivity Min. dB 55
Operating Temperature ℃ –40~85
Storage Temperature ℃ –40~85
Connector Type 　 SC,FC,LC and etc.
Fiber Type 　 Complied to G.657A1 or Customized
Package Dimension Module Type L*W*H mm 120*80*20
Rack Type L*W*H mm 130*100*102
Other Type L*W*H mm Customized

Remarks:

1 , All data above are based on room temperature +23 ℃ , insertion loss includes connector loss , IL of splitter without connectors should reduce 0.2 dB at least , other technical performance remain the same ; 2 , Standards Compliance: GR-1209-CORE , GR-1221-CORE .

Application of FA-PLCA1×32N Fiber PLC Splitter

1. Gigabit Passive Optical Network

2. Network Expansion ( CATV )

3. FTTX ( GPON , EPON )

4. Local Area Network ( LAN )

Product Features

All Our PLC Fulfill Requirements Of RoHS

If there is no special requirement, default fiber for our PLC splitter is G657A1.

Fiberall Fiber Splitter Is Working On Wide Operating Wavelength : 1260nm~1650nm

We Provide All Range Fiber Channel For Options Such As 1x2 , 1x4 , 1x8 , 1x16 , 1x32 , 1x64 , 2x64 and so on.

Low PDL 1x32 PLC Splitter With 2.0mm Cable , Optical Cable Splitter No Connector
