Simplex Fiber Optic Patch Cord FC/PC – FC/PC Single Mode Fiber Jumpers 3.0mm
Simplex Fiber Optic Patch Cord FC/PC – FC/PC Single Mode Fiber Jumpers 3.0mm
Simplex Fiber Optic Patch Cord FC/PC – FC/PC Single Mode Fiber Jumpers 3.0mm
Simplex Fiber Optic Patch Cord FC/PC – FC/PC Single Mode Fiber Jumpers 3.0mm
Specifications
Brand Name :
Fiberall
Model Number :
FAPC-FPFPS1
Certification :
RoHS, UL, ISO9001
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union, MoneyGram,PayPal
Delivery Time :
3-5 days
Packaging Details :
Plastic bag/Inner Carton/Outer Carton
Product Name :
Optical Patch Cable
Fiber Connector :
FC/PC
Cable OD :
3.0mm Simplex
Fiber Type :
Single Mode
Housing material :
Metal
Jacket Material :
PVC or LSZH
OEM :
Available
With aramid :
Yes
Description

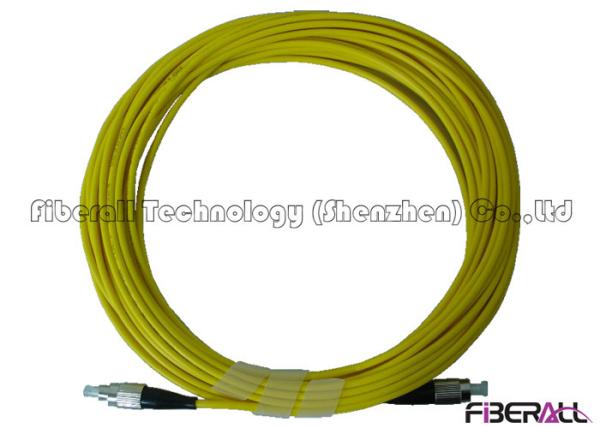

FAPC-FPFPS1 , Simplex Fiber Optic Patch Cord FC/PC – FC/PC Single Mode 3.0mm Yellow Cable

Fiber Cable Which We Use In Fiber Optic Jumper

There are many kinds of optical fiber cable, indoor and outdoor, simplex and duplex, single fiber or multi cores, bundle cable or ribbon cable, armored or non-armored, breakout and fan-out and so on.

They are with different inner structure, different material, different layer, and different jacket.

With over 9 years in fiber optic, Fiberall is able to make various optical fiber jumper and fiber pigtail. The simplest simplex and duplex one, the one with flat jacket outside the duplex, the outdoor cable with waterproof plug, the bundle cable with 12 colors tight buffer, the armore cable with breakout unit, and the outdoor tactical cable with TPU jacket and so on.

It can say, most of fiber cables in the market can be used to make fiber optic jumper so that the user can use the cable directly but do not need to assembly on site.

And we would like to recommend our multi cores fiber cable assemblies to you. They are with high density and widely used in data center, optical distribution frame, cabinet, fiber patch panel and any place where centralized fiber management is required.

Product Characteristic

Low insertion loss and high reflection loss

Good durability

High temperature stable

Easy to operation

Environmental stable

Various boot available

Excellent tensile strength

Compliant with Telcordia standard

With low bending loss

Technical Parameters Of FAPC-FPFPS1 Fiber Optic Patch Cord

Item Parameters
Product Number FAPC-FPFPS1
Product Specification Fiber Patch Cord Simplex SM FC/PC - FC/PC 3.0mm
Jacket Material PVC or LSZH
Fiber Type Single Mode G652
Test Wavelength 1310nm, 1550nm
Insertion Loss Typical ≤0.20dB,Maximum ≤0.30dB
Return Loss UPC≥45.0dB,APC≥60.0dB
Durability Mating 1000 times,typical change ≤0.20dB
Cable Diameter ∮0.9mm/∮1.8mm&∮2.0mm /∮3.0mm (MU 0.9mm/∮2.0mm)
Ferrule Diameter ∮2.5mm:SC, FC, ST, DIN; ∮2.0mm: D4; ∮1.25mm:LC,MU,LX.5
Boot Color Black
Working Temperature -20℃ to 70℃
Storage Temperature 40℃ to 85℃
Ferrule Parameter Bore diameter:125.3+1/-0μm, concentricity : ≤1.0μm
