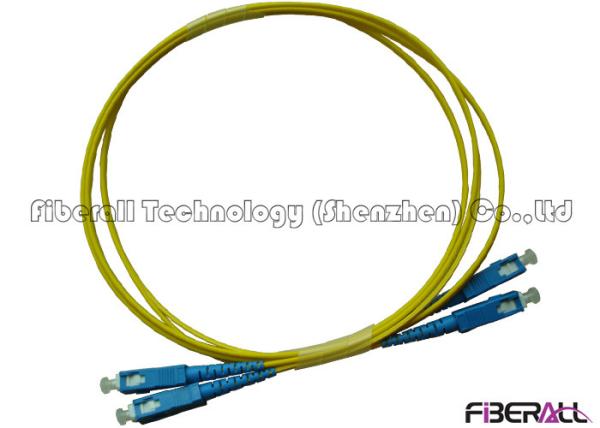

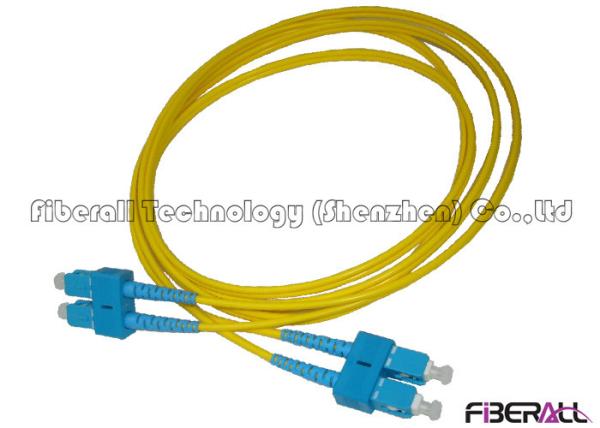

FAPC-SPSPS2 , SC Duplex Fiber Optic Jumper Pass 3D Interferometer Test With Letter Cable Ring

Fiberall is with over 9 years experience in fiber optic patch cord OEM service. We are able to provide all kinds of fiber connector, including SC, LC, ST, FC, MU, MT-RJ, D4, DIN, LX.5, VF45, MPO/MTP etc. Our advanced polishing equipment also provides different end face polishing PC, UPC and APC.

We also provide many kinds of fiber optical cable for options, different cable structure like simplex, duplex, flat duplex, round bundle cable, ribbon flat cable, outdoor waterproof cable, military tactical cable, indoor armored cable , far transmission base station cable and outdoor fiber cable, the breakout or fan-out diameter can be 0.6mm, 0.9mm, 1.8mm, 2.0mm, 2.8mm, 3.0mm, or customized. And the jacket material can PVC, LSZH, TPU, TPEE/Hytrel, PE and so on, cable with flame retardant grade OFNR, OFNP also available.

As for fiber type and fiber quantity, we provide single mode OS1, OS2, G652B and G652D, G655, G657A1 or G657A2 fiber and G651, OM1 62.5/125, OM2 50/125, OM3 50/125, OM4 multi mode fiber, buyer can order 2 cores,4 cores, 8 cores, 12 cores, 24 cores, 48 cores, 72 cores to 144 cores upon request.

We also provide various color choice, Yellow, Blue, Orange, Green, Brown, Grey, White, Red, Black, Purple, Pink, Aqua 12 colors, especially in multi core fiber optic jumper and fiber optic pigtail, it is very useful to distinguish by different color. Customized label, cable mark, packing and print are also available.

Features

SC-SC fiber connectors;
Duplex connector with clip;
Superior quality PC/UPC/APC polishing;
100% pass test (Insertion Loss and Return Loss);
2.0mm and 3.0mm cable optional.

Insertion Loss(SM): Typical<0.2dB, Max<0.3dB ;
Return Loss: UPC>50dB, APC>60dB ;
Repeatability: >1000 times ;

High reliability ;
RoHS compliant .

Parameters Of FAPC-SPSPS2
