Specifications
Brand Name :
Fiberall
Model Number :
FA-TELS0202
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union,
Delivery Time :
3-5 days
Packaging Details :
Cardboard box/Outer Carton
Product Name :
Optical Light Source
Wavelength options :
two, three or four wavelength
Working Mode :
CW and MOD
Fiber interface :
FC
Output Power :
-7 to -9 dBm
Modulation options :
CW, 270Hz, 1KHz, 2KHz
Description

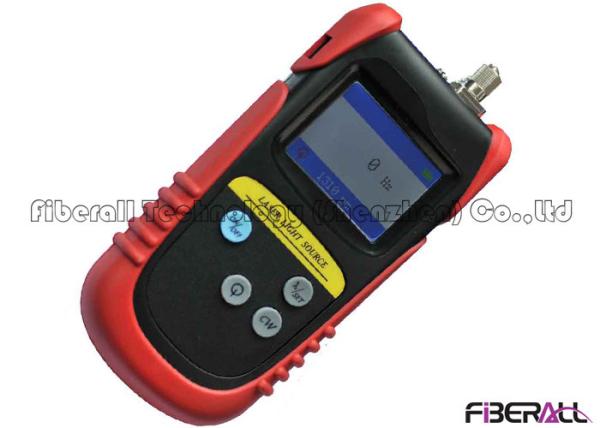

FA-TELS0202, Standard Type Handheld Optical Fiber Light Source With Multi Wavelengths

Handheld Optical Fiber Light Source is microprocessor-controlled and intelligent device. It can be used to test usual single mode optical fiber connector, single mode fiber network, LAN, FDDI, ATM, FTTH fiber optic systems and so on. It is also able to test the telecommunications networks, CATV systems which require large dynamic range test and maintenance. The handheld light source is synchronized with world level in micro-processing hardware, software technology, microelectronic technology, and surface mount (SMT) technology so it can provides users with high performance and high reliability.

Main Characteristics Of FA-TELS0202

1, Larger and stable output power comparable to desktop source;

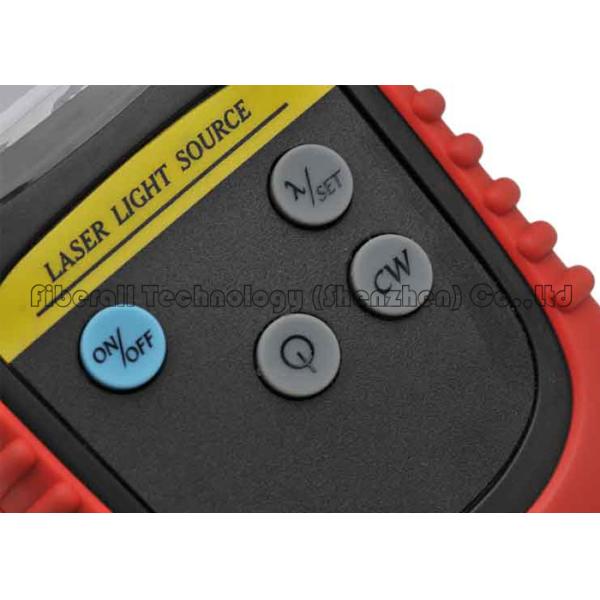

2, Using single key to switch the wavelength, flexible and convenient;

3, With high reliability;

4, Universal fiber interface provide three types of adapter: FC /SC / ST;

5, Simple appearance and easy to operate;

6, Small size and light weight;

7, Battery-powered, convenient for field operation;

8, Backlight at night convenient for all time operation.

Applications

1, Fiber production and research devices;

2, Fiber network testing and maintenance;

3, Optical communication teaching and test.

Technical Specifications

Type FA-TELS0202 FA-TELS0202A FA-TELS0202B FA-TELS0202P FA-TELS0202D
Emitter Type F-P LD
Wavelength(nm) 1310/1550 850/1300 850/1310/1550 1310/1490/1550 850/1300/1310/1550
Output Power -7~ -9 dBm
Output Stability ±0.10dB/1h(20°C)
Mode of Light Output CW & MOD
Modulation CW, 270Hz, 1KHz and 2KHz
Optical Interface FC adapter (SC, ST for options)
Operating Temperature -10°C~+ 60°C
Storage Temperature -20°C~ + 70°C
Relative humidity <95%
Automatic shutdown time 10min
Battery 9V alkaline battery

Notes:

1. Fiberall is able to supply the other wavelengths of dual-wavelength light source according to customers' requirements.

2. Besides the light sources listed in the table, we can make up the arbitrary single-wavelength and dual-wavelength light source into an integrated three-wavelength light source output. Parameter index reference to dual-wavelength data.

3. Obtaining data in the way of CW, (we can provide the output-power according customers' requirements.) we can provide product which output power is customer request.

4. In the CW mode, the warm half-hour later measured.

5. CW refers to a constant optical power output.
