Desktop Fiber Optic Test Equipment Digital Variable Optical Attenuator 60dB Attenuation
Desktop Fiber Optic Test Equipment Digital Variable Optical Attenuator 60dB Attenuation
Desktop Fiber Optic Test Equipment Digital Variable Optical Attenuator 60dB Attenuation
Desktop Fiber Optic Test Equipment Digital Variable Optical Attenuator 60dB Attenuation
Desktop Fiber Optic Test Equipment Digital Variable Optical Attenuator 60dB Attenuation
Desktop Fiber Optic Test Equipment Digital Variable Optical Attenuator 60dB Attenuation
Specifications
Brand Name :
Fiberall
Model Number :
FA-TEOA3560
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union,
Delivery Time :
3-5 days
Packaging Details :
Cardboard box/Outer Carton
Product Name :
Variable Optical Attenuator
Operating wavelength :
1310nm/1550nm
Attenuation Range :
0 to -60dB
Fiber Interface :
FC
Attenuation step options :
10dB, 1.0dB, 01dB
Power supply :
Battery
Description

FA-TEOA3560, Desktop Digital Variable Optical Fiber Attenuator Provides Max 60dB Attenuation

Desktop variable optical attenuator is a novel instrument which can control optical attenuation freely by PC or panel, it adopt new appearance and circuit design and it is able to provide 0 ~ 60dB continuously adjustable attenuation in a single mode 1260 ~ 1650nm wide wavelength range, it is with high reliability and stability and can provide shutter function to meet user needs of cutting off optical path.

Main Performance Of FA-TEOA3560

1, 0.1dB weaken resolution;

2, Provide three kind of attenuation step for options: 10dB, 1.0dB, 01dB;

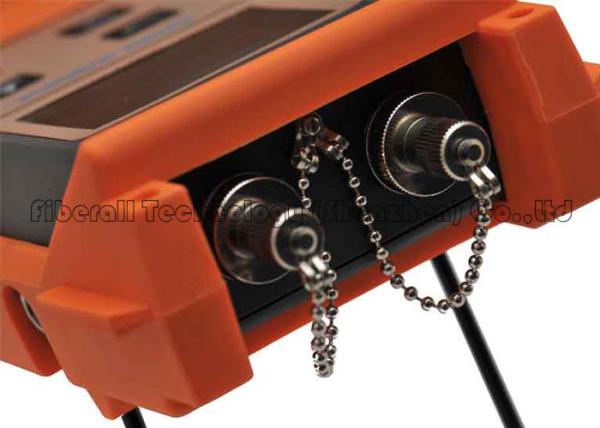

3, Universal interface with three types of adapter: FC /SC / ST;

4, Desktop type easy to operate;

5, Small size, light weight and high reliability;

6, Flexibly switch the wavelength;

7, Battery-powered, convenient field work;

8, Backlight is convenient operation at night.

Specifications

Type FA-TEOA3560A FA-TEOA3560B
Wavelength 1310nm/1550nm 1310nm/1550nm
Attenuation Range 0～-60dB(not contain insertion loss) 0~-50dB(not contain insertion loss)
Accuracy ≤±0.8dB ≤±0.8dB
Resolution 0.01dB
Insertion loss ＜2.5dB
Return loss >60dB(APC) >50dB(PC)
Batteries 9V alkaline battery
Continuous working hours 45h
Fiber Type SMF 9/125μm
Interface Type FC(standard), ST, SC are available for use
Operating temp -10℃ to 60℃
Storage temp -20℃ to 70℃
Work humidity <95%
Automatic shutdown time 10 minutes

Desktop Fiber Optic Test Equipment Digital Variable Optical Attenuator 60dB Attenuation
