Small ST To ST Fiber Coupler For SX Singlemode / Multimode Fiber Connection
Small ST To ST Fiber Coupler For SX Singlemode / Multimode Fiber Connection
Small ST To ST Fiber Coupler For SX Singlemode / Multimode Fiber Connection
Small ST To ST Fiber Coupler For SX Singlemode / Multimode Fiber Connection
Small ST To ST Fiber Coupler For SX Singlemode / Multimode Fiber Connection
Small ST To ST Fiber Coupler For SX Singlemode / Multimode Fiber Connection
Specifications
Brand Name :
Fiberall
Model Number :
FA-AD-TP1MM
Certification :
RoHS
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union, MoneyGram,PayPal
Delivery Time :
2-4 days
Packaging Details :
Plastic Bag or Blister Box/Carton
Product Name :
ST Fiber Adapter
Connector Type :
ST-ST
Fiber qty :
Simplex
Body material :
Metal
Dust cap :
Black, Red And Yellow
Fiber Type :
SM or MM
Adapter Shape :
Round
Sleeve material :
Zirconia
Description

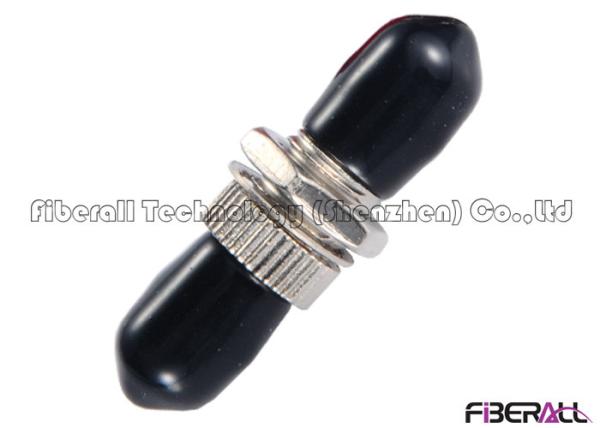

FA-AD-TP1MM , ST Metal Fiber Optic Midcoupler For SX Singlemode Or Multimode Fiber Connection

A high quality sleeve of fiber optic adapter has the below characteristics: High precision mechanical dimensions, surface of inner hole is with high smooth, excellent concentricity and roundness shows that the adapter can ensure the fiber can contact in straight line and reduce the loss of the fiber line. Uniform plug and unplug force, good consistency and high strength mechanical durability (life >1000 times) will minimize the possibility of crack and ensure the use life. Excellent repeatability (IL < 0.10dB) and Low insertion loss (standard value <0.2dB, typical value <0.05dB) indicates that the adapter is with excellent optical performance and good repeatability and interexchangeability means the adapter is able to provide stable connection and transmission. Excellent anti aging performance and operating temperature: -40 to +85℃ tell us that the adapter is with long use life and with environmental stability.

Specification Of FA-AD-TP1MM

Part number FA-AD-TP1MM
Adapter specification Fiber Adapter ST SX Metal
Fiber port ST/PC
Suitable fiber OS1, OS2, OM1, OM2, OM3
Channel number Simplex
Housing material Metal
Sleeve type High Quality ceramic
Dust cap material Rubber
Dust cover Red, Yellow, Black
Insertion loss ≤0.2dB

Applications


Telecommunication
CATV
LAN and WAN

Broadband Network
Metro monitor network
Test equipment
Data transmission
Industrial, military and medical applications

Small ST To ST Fiber Coupler For SX Singlemode / Multimode Fiber Connection
