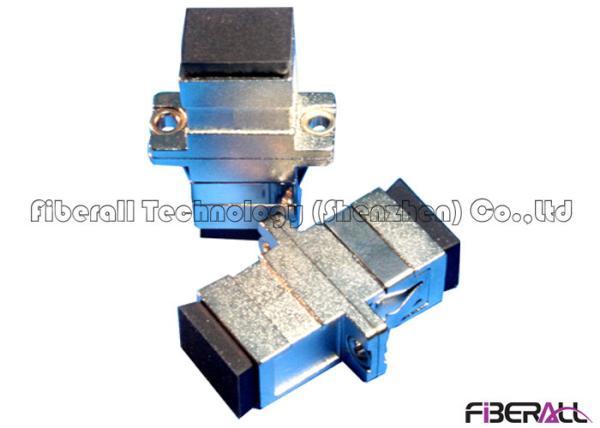

Metal SC Fiber Optic Adapter Fiber Optic Couplers Simplex With Rubber Dust Cover
Metal SC Fiber Optic Adapter Fiber Optic Couplers Simplex With Rubber Dust Cover
Specifications
Brand Name :
Fiberall
Model Number :
FA-AD-SP1SP-M
Certification :
RoHS
Place of Origin :
China
MOQ :
100pcs
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union, MoneyGram,PayPal
Delivery Time :
2-4 days
Packaging Details :
Plastic Bag or Blister Box/Carton
Product Name :
Metal Fiber Adapter
Body Material :
Metal
Compliant standard :
IEC,EIA/TIA,Telcordia
Material of Sleeve :
Zirconia
Dust cap :
Black color
Repeatability :
≤0.1dB
Fiber Interface :
SC/PC
Flange :
with flange
Description

FA-AD-SP1SP-M, SC Metal Fiber Optic Midcoupler Simplex With Rubber Dust Cover

Due to maintenance and normal test of fiber optic jumper, fiber adapter will meet frequent insertion and plug, so it has certain requirement for the the plug life of the sleeve, the maximum pluggable life, namely, under normal use conditions, the specified times is 500 to 1000 times(general requirement), during the pluggable life, there is no mechanical damage , additional loss does not exceed the limit value (usually defined as 0.2dB), plug life of optical fiber connector is generally decided by wear and breakage of ferrule and sleeve. When slotted zirconia sleeve is used, the wear of ceramic sleeve can be avoid and broken is the main factor that affects life of adapter . Fragmentation reason of ceramic sleeve is very complex, summed up there are the following situations: (1) the strength of the ceramic sleeve is too low, can not withstand the plug stress. (2) ceramic sleeve is broken due to static fatigue. (3) under the condition of high temperature and humidity for a long time, a large number of tetragonal phase and monoclinic phase happened and reduce the strength of the sleeve.(4) concentric stress caused by artificial or non normal insertion. (5) the quality of metal or nonmetal flange is not qualified.

So the quality of the sleeve will decide the quality and use life of the fiber optic adapter.

Applications


Optical distribution frame
Testing instruments
Optical fiber communication system

FTTB Fiber To The Building

Optical Distribution Network

Fiber Patch Cord or Pigtail Production

Specification Of FA-AD-SP1SP-M Fiber Adapter

Item Parameter
Compatible Fiber Single-mode Multi-mode
Adapter Spec Fiber Adapter Metal SC-SC SX
Adapter color Metal primaries
Fiber channel Simplex
Body Material Metal
Sleeve material Ceramic(ZrO2)
Test wavelength 1310nm or 1550nm 850nm or 1300nm
Insertion Loss typical≤0.15dB,Max≤0.20dB typical≤0.15dB,Max≤0.30dB
Repeatability ≤0.10dB
Interchangeability ≤0.20dB
Mechanism Durability ≤0.20dB Max change,500 cycles
Operating Temperature -20ºC to +70ºC
Storage Temperature -40ºC to +85ºC
