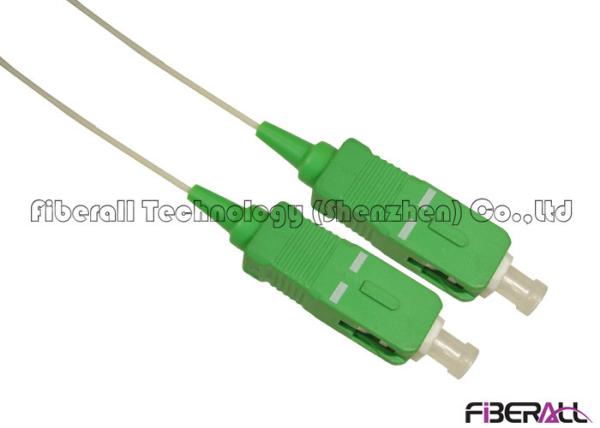

SC APC Fiber Optic Pigtail / Patch Cord With Green Connector 2.5mm Ceramic Ferrule
SC APC Fiber Optic Pigtail / Patch Cord With Green Connector 2.5mm Ceramic Ferrule
SC APC Fiber Optic Pigtail / Patch Cord With Green Connector 2.5mm Ceramic Ferrule
SC APC Fiber Optic Pigtail / Patch Cord With Green Connector 2.5mm Ceramic Ferrule
Specifications
Brand Name :
Fiberall or OEM
Model Number :
FAPG-SAS01
Certification :
RoHS,UL
Place of Origin :
China
MOQ :
50 pcs
Price :
Upon request
Payment Terms :
L/C,T/T,Western Union,MoneyGram,PayPal
Delivery Time :
3~5 days
Packaging Details :
PE Bag / Carton
Product Name :
Optical Fiber Pigtail
End Polishing :
APC
Connector Color :
Green
Cable Size :
0.9mm simplex
Ferrule :
2.5mm ceramic
RoHS Requirement :
Compliant
Insertion Loss :
<0.3dB
Jacket :
PVC or LSZH White or Yellow
Description

FAPG-SAS01 , SC APC Fiber Optic Pigtail With Green Connector And 0.9mm White Tight Buffer

Matters Needing Attention When Test Insertion Loss Of Fiber Optic Pigtail

In order to ensure that no impurities to affect the accuracy, it need to clean the end face with anhydrous alcohol before connecting. DB value of the master cord should be given, usually less than 0.02dB. The calibration value today should be compared with the calibration value of yesterday, the difference must be less than or equal to 0.02dB, all the calibration value must be less than or equal to 0.05dB, if the value do not meet the requirement, it need to check with the supervisor. During the test, after testing 5 pcs, it needs to check the dBm value normal or not before clearing. If there is problem, it should be solved in time. For non FC/PC type connector, FC-XX conversion adapter should be used. (XX- stands for connector will be tested). Connector of the MASTER Cable which connects to the light source must be FC/PC. Light source and optical power meter must use same wavelength. Direction of ceramic sleeve and direction of the adapter should be consistent. After finish test, remember to turn off the light source and the optical power meter, cover dust cap to connector and detector.

Applications


1.FTTH (Fiber To The Home) FTTB ( Fiber To The Building)
2.Optical fiber data communication
3.Optical fiber access networks
4.Optical fiber communications system
5.CATV, LAN, MAN, WAN,

6, Fiber Test and Measurement
7.Military and tactical application
8.Medical equipment

Parameters

PN

FAPG-SAS01
Product Spec Fiber Pigtail SC/APC SM Simplex 0.9mm
Fiber Type Single mode G652
Cable Type Simplex tight buffer
Connector Style SC/APC
Ferrule Type 2.5mm
Cable Diameter 0.9mm, 1.6mm, 1.8mm, 2.0mm, 3.0mm
Length Default or customized length
Outer Jacket PVC or LSOH
Length Tolerance (<15 meters ) -0/+100mm
Jacket Color Yellow , white or customized
Durability 500 cycles(0.2 dB max increase), 1000 mating
Operating Temp. -20 °C to +70°C
Storage Temp. -40 °C to +85°C
Ferrule Concentricity < 1μm, Other Ferrule Concentricity < 1μm
Relative Humidity 90-95% at 40°C
