0.6 Tight Buffer Breakout 2 Core Single Mode Fiber Optic Cable Spiral Steel Tube
0.6 Tight Buffer Breakout 2 Core Single Mode Fiber Optic Cable Spiral Steel Tube
0.6 Tight Buffer Breakout 2 Core Single Mode Fiber Optic Cable Spiral Steel Tube
0.6 Tight Buffer Breakout 2 Core Single Mode Fiber Optic Cable Spiral Steel Tube
Specifications
Brand Name :
Fiberall or OEM
Model Number :
FA-IOC-R0201
Certification :
RoHS, UL,ISO9001
Place of Origin :
China
MOQ :
2 Kilometers
Price :
On request
Payment Terms :
L/C,T/T, Western Union
Delivery Time :
5-10 Days
Packaging Details :
Drum
Product Name :
Armored Fiber Cable
Application :
Indoor harsh environment
Cable structure :
2 fibers in one tube
Armour :
Spiral Metal Tube
Jacket :
PVC or LSZH
Breakout :
0.6 buffered fiber
Strengthen member :
Kevlar yarn
Packing way :
drum
Description

FA-IOC-R0201, Armored Indoor Fiber Optic Cable With Spiral Steel Tube 2 Fibers Tight Buffer

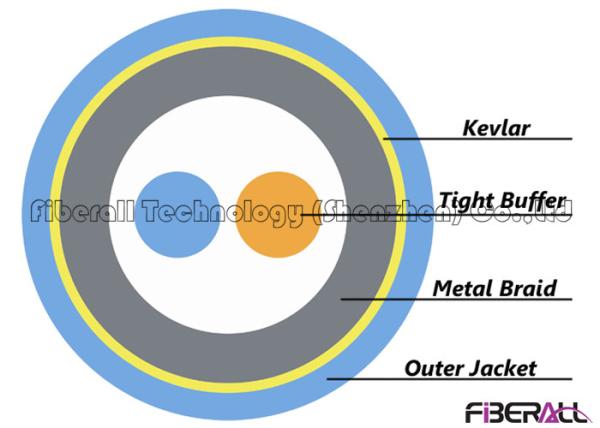

Indoor Armoured Optical Fiber Cable with single armour is composed of tight buffer fiber, stainless spiral tube, Kevlar yarn and outer jacket. It is with excellent mechanical performance, easy for cabling and further process. It is a ideal transmission medium for indoor fiber cabling. It is widely used in national defense, broadcast and television system, intelligent building monitor and control, power station, traffic communication, wide area network and local area network. Its fan-out 0.6mm or 0.9mm tight buffer can provide critical protection for the fiber and it is convenient to can be pre-terminated with different fiber optic connector so that can be connected directly during instillation.

Main Features Of FA-IOC-R0201

With good mechanical and temperature performance;

With excellent crush resistance and flexibility;

Small diameter with light weight and easy for installation;

Long delivery length;

Customized print on jacket is available;

Appointed jacket material, fiber type or even cable structure is acceptable.

Indoor Armoured Fiber Cable Specification

Item Units Single Mode Multimode
Core/Mode Diameter um

9.2±0.4um@1310nm

10.4±0.8um@1550nm

 50±2.5um 62.5±2.5um
Cladding Diameter um 125±1um 125±1um 125±1um
Max. Attenuation dB/km 0.4dB/Km@1310nm 0.3dB/Km@1550nm 3.5dB/Km@850nm 1.5dB/Km@1300nm 3.5dB/Km@850nm 1.5dB/Km@1300nm
Operating temperature ℃ -40℃~+85℃
Outer Diameter mm 5.7±0.10mm (Duplex) / 3.2±0.10mm (one tube and two fibers)
Net weight Kg/Km 38/20
Allowed bending radius (mm) 25
Allowed tensile (N) 200
Crush Resistant N/100mm2 3000

Fiberall is able to provide indoor armored fiber cable with the below capacity and structure: simplex, duplex, 2 fibers in one tube, 4 fiber to 24 fibers, single armour and dual armour.
