Tight Buffer Armoured Indoor Fiber Optic Cable 2 Fibers Steel Tube Metal Braid
Tight Buffer Armoured Indoor Fiber Optic Cable 2 Fibers Steel Tube Metal Braid
Tight Buffer Armoured Indoor Fiber Optic Cable 2 Fibers Steel Tube Metal Braid
Tight Buffer Armoured Indoor Fiber Optic Cable 2 Fibers Steel Tube Metal Braid
Specifications
Brand Name :
Fiberall or OEM
Model Number :
FA-IOC-R0202
Certification :
RoHS, UL,ISO9001
Place of Origin :
China
MOQ :
2 Kilometers
Price :
On request
Payment Terms :
L/C,T/T, Western Union
Delivery Time :
5-10 Days
Packaging Details :
Drum
Product Name :
Indoor Armored Cable
Armour type :
spiral steel tube and metal braid
Cable structure :
2 Cores in a tube
Breakout type :
tight buffer
Application :
Indoor Use
Strengthen member :
Kevlar yarn
Harmonization System Code :
8544700000
OEM and ODM :
Available
Description

FA-IOC-R0202 , 2 Fibers Indoor Armoured Optical Fiber Cable With Steel Tube And Metal Braid

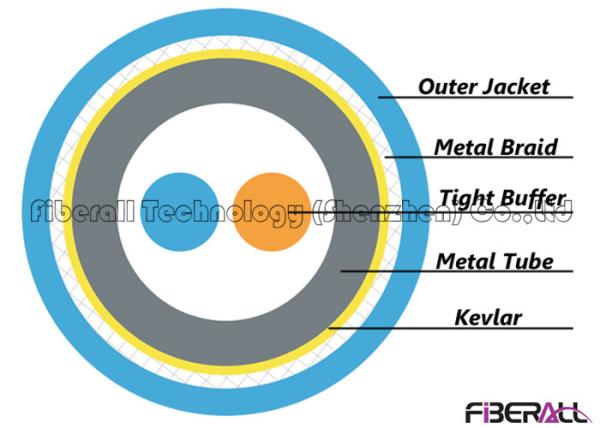

The indoor armored fiber optic cable with dual armour is composed by tight buffer fiber, flexible metal tube, metal braid, aramid strengthen member, and outer sheath. The metal braid is able to enhance the protection ability and performance of anti twist. The cable is With excellent mechanical performance like tensile strength, crush resistance so the indoor cable with armour is a ideal solution for indoor cabling, produce pigtail and patch cord, LAN, WAN and other optical communication. It is suitable for harsh environment and can prevent the cable from damage causing by unexpected tension, crush, and bite. Its compact design is with light weight and easy for long distance transportation and suitable for vertical, horizontal or ceiling installation.

Advantages Of Indoor Armoured Optical Fiber Cable

1, Spiral metal tube with small diameter is with crush resistance reach 3000N;

2,Outer jacket material can be PVC, LSZH, TPU or PE;

3, Imported Kevlar strengthen member ensure the tensile strength above 300N;

4, Color of the jacket is also with many options

5, The cable is able to meet requirement of UL, RoHS

6, Compact design with light weight

7, Flexible cable is easy to bend and ensure the bending radius

8, Can be process to be patch cord and pigtail with connector

9, Suitable for wall, ceiling, duct, and case laying.

10, Can be used in FTTx application

Specification Of Indoor Armored Fiber Cable (Duplex (two fibers in one tube )

Item Units Single Mode Multimode
Fiber Diameter um

9.2±0.4um@1310nm

10.4±0.8um@1550nm

 50±2.5um 62.5±2.5um
Cladding Diameter um 125±1um 125±1um 125±1um
Max. Attenuation dB/km 0.4dB/Km@1310nm 0.3dB/Km@1550nm 3.5dB/Km@850nm 1.5dB/Km@1300nm 3.5dB/Km@850nm 1.5dB/Km@1300nm
Working temperature ℃ -40℃~+85℃
Outer Diameter mm 5.7±0.10mm (Duplex) / 3.2±0.10mm ( two fibers in a round tube)
Net weight Kg/Km 38/20
Allowable bending radius (mm) 25
Allowable tensile (N) 200
Max. Crush Resistance N/100 3000
