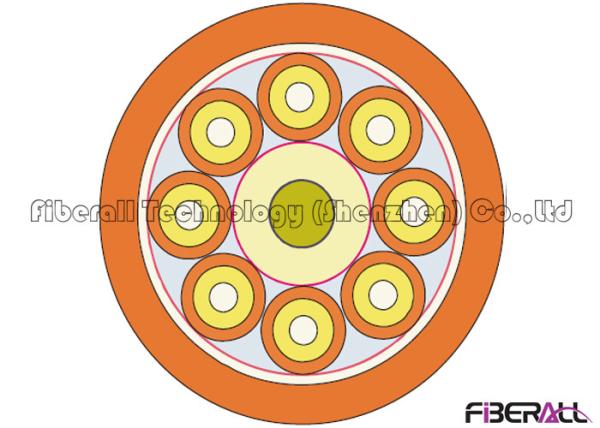

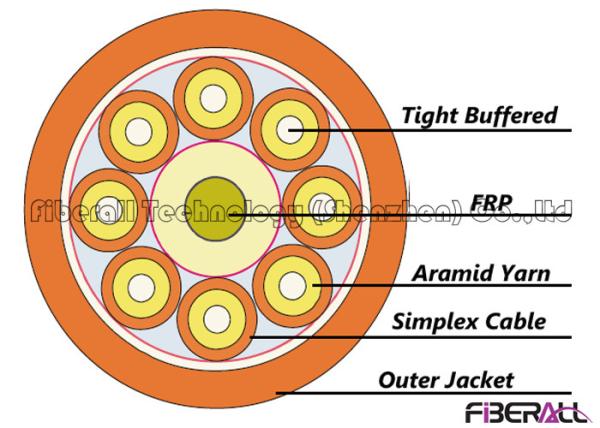

FA-IOC-GJFHJY08, Breakout Type Indoor Fiber Optic Cable With 8 Cores 2.0mm Simplex Fan-out With FRP Strengthen Member And PVC or LSZH Jacket

As we know, PE and PVC is the most common jacket material for fiber optic cable, PE is mainly used in outdoor fiber cable and PVC mainly used in indoor cable. PE is with strong tension and crush resistance, but it is hard and does not easy and convenient to bend. So when the outdoor cable need to be very flexible and with excellent bending ability, Fiberall will recommend TPU or PU jacket, it is elastic (stretch) and also with excellent wear resistance so it is also with good tensile. As for indoor fiber cable, the option of jacket material is various like LSZH (LSOH), Hytrel and it also can be TPU. Indoor fiber cable always require good flame retardant and some of them even need fireproof so Fiberall also provide flame retardant jacket in OFNR or OFNP grade.

Main Features Of FA-IOC-GJFHJY08

1, It is suitable for indoor horizontal or vertical cabling and it is also can be applied in ceiling cabling, surface cabling and so on;

2, All Fiberall cable are with standard fiber core and it is able to splice with other cable directly and also compatible with connector and equipment;

3, It can be made to be fiber pigtail and patch cord;

4, Each simplex cable with Kevlar yarn as reinforcement, with high strength, good bending performance, without gel and easy to splice and operate;

5, Each simplex cable with tight buffer inside, easy for strip and protection;

6, The buffered fiber and independent strengthen member can prevent damage from environment and mechanical stress;

7, Default capacity is from 2 to 48 fibers, other capacity also available upon request but the diameter maybe different;

8, Fiberall provide various jacket options like PVC, LSOH, PE and so on, which is with excellent violet radiation resistance, waterproof ability, mildew-proof ability, endurable environmental stress and so on;

9, Color of the fiber and outer jacket can be customized, if it is for outdoor use, Fiberall recommend outer sheath in black color.

Cable Parameters
