Specifications
Brand Name :
Fiberall
Model Number :
FA-FXPCSPSPS1
Certification :
RoHS
Place of Origin :
China
MOQ :
2000 meters
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Delivery Time :
4-6 days
Packaging Details :
Plastic bag or bubble wrap/Carton
Product name :
FTTH Drop Patch Cord
Connector type :
SC,FC
Fiber capacity :
single fiber
Application :
Indoor FTTH cabling
Strengthen member :
G-FRP or K-FRP
Cable length :
customized
Fiber type :
G657A
Jacket material :
LSZH or appointed
Description

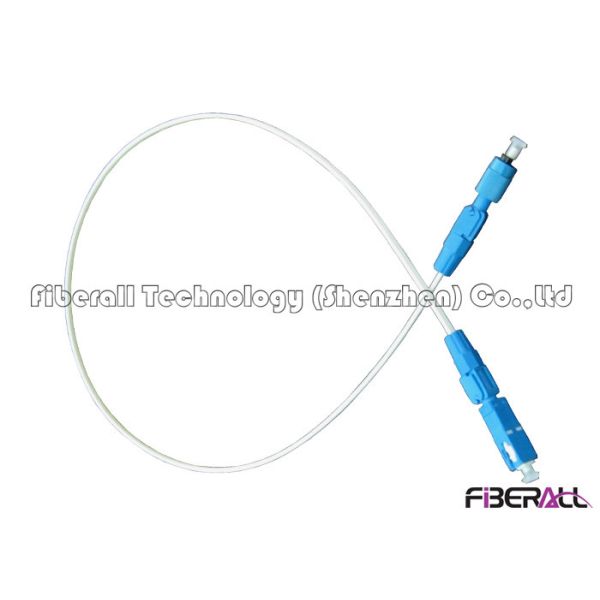

FA-FXPCSPSPS1, FTTH Fiber To The Home Drop Patch Cord With Pre-terminated Optical Connector

FTTH drop cable jumper is with pre-terminated connector at both ends before leaving factory, so that the operator is very convenient to operate ftth drop cable jumper; and change low successful rate of the traditional ftth drop cable jumper, improve the construction progress and solve the operational problems of assembling connector; the simple structure of the fast connector is convenient to use. And the FTTH drop fiber jumper is suitable for cabling which is with fixed position, and limit space, and it can be used to open or short distance pipeline laying.

According to strengthen member type, the FTTH drop patch cord can be divided into two types, one is with metal strengthen member and the other is with non metallic strengthen member. The metal strengthen member is able to achieve greater tensile strength and it is suitable for indoor vertical cabling in short distance and horizontal cabling with long distance. Indoor FTTH drop cable sheath usually adopts PVC or LSZH material, flame retardant grade of LSZH is higher than PVC, meanwhile, the black LSZH material is with UV blocking erosion, it is able to prevent cracking and suitable for fiber cable access from outdoor to indoor.

G.657 bending sensitive fiber is with two attractive characteristics: excellent bending ability and low water peak, and it is able to make full use of 1260nm~1625nm (E-S-C-L band) . The bending resistance of G.657 fiber suppresses the additional loss at 1800nm. It is not only suitable for L band, but also easy to install, especially in the fiber to the home network, the bending radius of the fiber is able to meet installation requirement of minimum corner of the wall. Not only that, the mode field diameter of G.657 fiber is in line with the standard G.652 single-mode fiber, which makes it have low connection loss with G.652 fiber, including splicing loss and insertion loss. The optical fiber can fully meet the capacity requirements of network.

Main Features Of FTTH Drop Fiber Jumper

FTTH drop cable is with light weight, low cost and low construction cost;

Drop fiber jumper adopts cold connection technology, it is fast and flexible, with high crushing resistance and tension resistance;

Using glass reinforced fiber (G-FRP) or aramid reinforced fiber (K-FRP) as strengthen member, the cable is soft and with excellent bending performance, ensure the bending radius meets requirements;

With low smoke halogen free material to meet the requirements of indoor flame retardant;

The drop cable adopts ITU-T G657A bending sensitive fiber, and the minimum bending radius reach 15mm;

Self-supporting type drop fiber cable adopts high carbon steel wire as strengthen member, which has superior tensile property.

Application: Data transmission, telecom, access network, test equipment, broadband access network, fiber CATV.

Fiber Performance

Fiber type Unit SM MM
Diameter mm Ф3.0 or customized
End type PC UPC APC PC UPC
IL dB ≤0.2 ≤0.3 ≤0.3 ≤0.3
RL dB 45 50 60 25 35
Working temperature -40~+75
Storage temperature -40~+80
Wavelength nm 1310/1550
Mating times time ≥1000

Cable Mechanical Performance Of FA-FXPCSPSPS1

Test item Technical parameter
Screening class (%) Screening of strain≥2.0
Minimum bending radium(mm) 15mm (G657A1) 7.5mm(G657A2)
Strip strength of cladding(N)

Max. 1.3≤F≤8.9

Average 1≤F≤5

Static fatigue index (nd) ≥20
Dynamic tensile strength(Gpa) ≥3.8
Diameter of single core second cladding (μm) 250
Cladding non- concentricity (%) ≤2.0
Cladding/buffer concentricity (μm) ≤12.0
