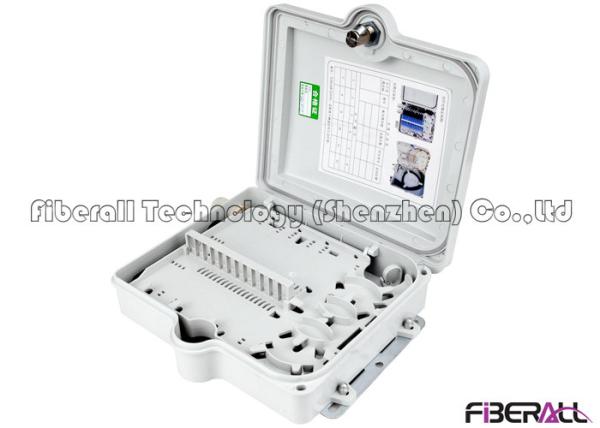

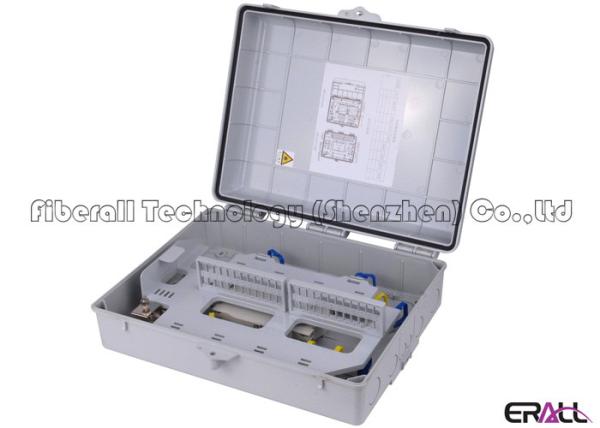

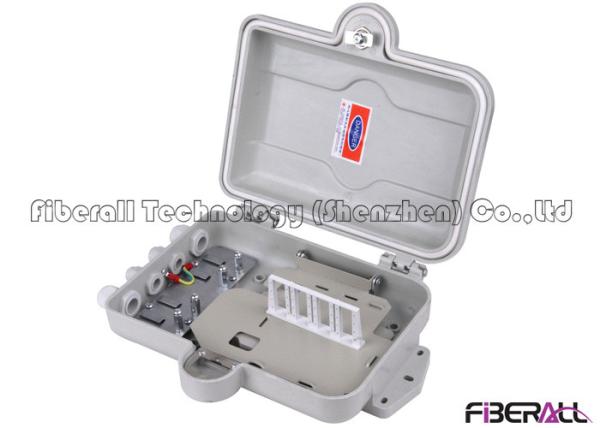

FDB Fiber Optic Distribution Box / FTTH Distribution Box For FTTH Drop Cable
FDB Fiber Optic Distribution Box / FTTH Distribution Box For FTTH Drop Cable
FDB Fiber Optic Distribution Box / FTTH Distribution Box For FTTH Drop Cable
FDB Fiber Optic Distribution Box / FTTH Distribution Box For FTTH Drop Cable
FDB Fiber Optic Distribution Box / FTTH Distribution Box For FTTH Drop Cable
FDB Fiber Optic Distribution Box / FTTH Distribution Box For FTTH Drop Cable
Specifications
Brand Name :
Fiberall
Model Number :
FA-FXDB01-02-03
Place of Origin :
China
MOQ :
20pcs
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Delivery Time :
3-5 days
Packaging Details :
Inner Carton/Outer Carton
Certification :
RoHS
Product name :
FTTH Distribution Box
Application :
Pole or wall
Suitable cable :
FTTH drop cable
Inlet :
Customized
Output :
Customized
Body material :
Flame retardant engineering plastic
Description

FA-FXDB01-02-03, FDB Fiber Optic Distribution Box For FTTH Drop Cable Pole Or Wall Mounted

1, The box adopts high quality flame retardant engineering plastic, has good sealing performance and weather resistance, suitable for both inside and outside wall mounting, pole installation, the protection level reach IP55 class;

2. With special location for FTTH cable, ensure the pull-out force is not less than 20N after the drop cable is fixed;

3. With special crossing hole for fast connector, termination between drop cable and fast connector can be carried out outside the box;

4. With reliable armored fiber cable access, fixing, stripping protection and grounding device, maximum fix 4 outdoor armored fiber optic cable, equivalent to fiber optic splice closure with 2 inlet and 2 outlet;

5. Multifunctional splicing protection slots module, can meet the requirements of 48 cores splice sleeve or 24 cores cold splicing protector;

6.The flip plate structure is designed to make full use of the space of the box, ensure enough bending radius of the fiber, and make it easier for the user to reserve the appropriate redundant optical fiber and reasonable fiber routing;

Main Features

Made of high impact plastic;

Is able to accommodate 1x8 or 1X16 PLC splitter with SC Connector;

Anti-UV, Ultra violet resistant and rainfall resistant;

Wall and pole mountable;

Widely used in FTTH access network, Telecommunication Networks, CATV Networks , Data communications Networks and Local Area Networks.

Performance Specifications

Part Number

FA-FXDB01

FA-FXDB02

FA-FXDB03
Insertion loss IL = 0.3dB (PC); IL = 0.3dB (APC);
Return loss RL = 40dB (PC); RL = 50dB; RL = (UPC) 60dB (APC)
Interchangeable Less than 0.2dB
Atmospheric pressure 62Kpa to 106Kpa
Humidity Less than 90% (+30℃);
Operating temperature -40℃~+70℃；
Withstand voltage the grounding device and the box metal parts between the withstand voltage is not less than 3000V (DC) /1min;
Insulation resistance the insulation resistance between grounding device and case metal parts is not less than 2X104M ohm /500V (DC);
Product tags

ftth fiber distribution box

,

ftth fiber optic terminal box

,

ftth fiber optic termination box
