Plastic Fiber Optic Terminal Box For Fiber Splicing With 2 Optical Cable Entries
Plastic Fiber Optic Terminal Box For Fiber Splicing With 2 Optical Cable Entries
Plastic Fiber Optic Terminal Box For Fiber Splicing With 2 Optical Cable Entries
Plastic Fiber Optic Terminal Box For Fiber Splicing With 2 Optical Cable Entries
Specifications
Brand Name :
Fiberall
Model Number :
FA-FXTWCP48
Certification :
RoHS
Place of Origin :
China
MOQ :
20pcs
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Delivery Time :
3-5 days
Packaging Details :
Inner Carton/Outer Carton
Product name :
Fiber Cable Termination Box
Main Material :
PC plastic
Appearance :
Grey
Cable input :
2 ports
Maximum capacity :
48 fibers
Fiber tray qty :
1 to 4 pcs
Description

FA-FXTWCP48, Plastic Fiber Optic Terminal Box For Fiber Splicing With 2 Optical Cable Entries

The fiber cable terminal box is suitable for various kinds of fiber pigtail and optical fiber and can protect optical fiber connection very well. The fiber terminal box is suitable for communication room and all kinds of network rooms. It can be installed on the wall or installed on the desktop.

Applicable optical cable: The terminal box is suitable for 1 optical cable with maximum diameter of 16mm and 2 fiber cables with maximum diameter of 11mm, or two optical cables with diameter of 16mm.

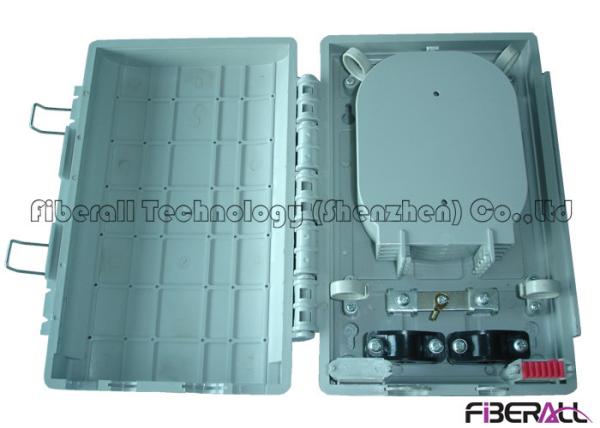

To open the terminal box, only need to open the shell simply by unscrewing 1 screw, and fiber optic pigtail and optical cable access from the same side, this is convenient and reliable for installation. Shell materials of the fiber terminal box are high strength polycarbonate (PC plastic) and the material is with better mechanical strength, beautiful appearance and durability.

The fiber tray is a flip design, the open angle can be more than 90 degrees, easy to install and maintain the optical fiber, and the optical fiber bending radius fully meets the national standard. And the fiber tray can be configured with 6-12 cores.

Main Parameters Of Plastic Fiber Terminal Box

Part Number FA-FXTWCP48
Body Material Plastic (PC)
Housing Color Grey
Cable entry Two ports
Fiber capacity 6 to 48 fibers
Fiber tray 6 cores or 12 cores each ( can be with 4pcs)
Cable fixing device Available
Pigtail / fiber fixing device Available
