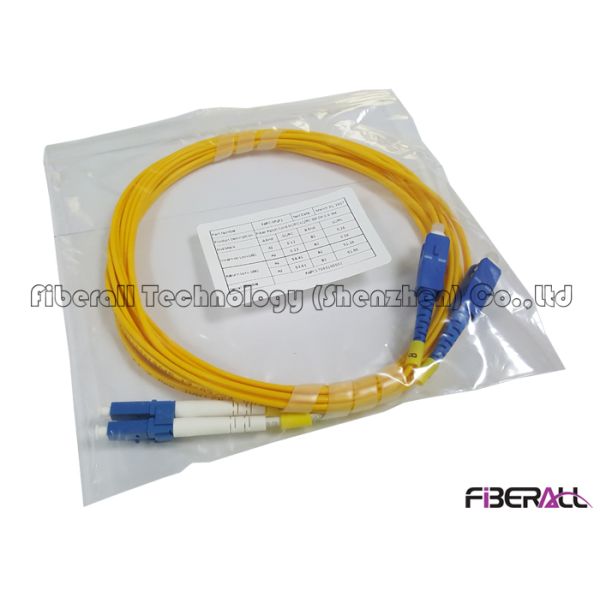

Carrier Grade Single Mode Optical Fiber Patch Cord SC To LC Duplex Fiber Jumper
Carrier Grade Single Mode Optical Fiber Patch Cord SC To LC Duplex Fiber Jumper
Carrier Grade Single Mode Optical Fiber Patch Cord SC To LC Duplex Fiber Jumper
Carrier Grade Single Mode Optical Fiber Patch Cord SC To LC Duplex Fiber Jumper
Specifications
Brand Name :
Fiberall
Model Number :
FAPC-SPLPS2
Certification :
RoHS, UL, ISO9001
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
L/C,T/T,Western Union, MoneyGram,PayPal
Delivery Time :
3-5 days
Packaging Details :
Plastic bag/Inner Carton/Outer Carton
Product Name :
2.0mm Patch Cord
Fiber model :
SM OS1 or OS2
Interface type :
LC/SC
Cable type :
Duplex 2.0mm
Jacket Color :
Yellow
Boot Color :
White for LC Blue for SC
Description

FAPC-SPLPS2 , Carrier Grade Single Mode Optical Fiber Patch Cord SC To LC Duplex Fiber Jumper

Performance of optical fiber patch cord, first of all optical performance, in addition also need to consider interchangeability, repeatability, tensile strength, temperature and the mating times.

(1) Optical performance: Insertion loss and return loss are two basic parameters of optical fiber optic patch cord. Insertion loss is loss of connection, refers to the loss of the effective optical power of the link caused by the introduction of the connector. Insertion loss should be as small as possible, the general requirement should not be greater than 0.5dB. Return Loss refers to the suppress ability of the patch cord to the optical power reflection of the link, and its typical value should be no less than 25dB (MM). As for fiber patch cord in practical applications, the surface of the ferule has been polished by special polishing machine and it made greater return loss, generally not less than 45dB.

(2) Interchangeability and repeatability: optical fiber optic jumper is a universal passive device, of as for same type fiber optic patch lead, they can generally be used in any combination, and can be used repeatedly, so the additional loss are generally less than 0.2dB.

(3) Tensile strength: for a finished fiber patch cord, generally required tensile strength should not be less than 90N.

(4) Working temperature: General requirements, the optical fiber patch cord must be used normally in -40℃ ~ +70℃ temperature range .

(5) Mating times: the current use of fiber optic jumper can generally plug and unplug more than 1000 times.

Main Parameters Of FAPC-SPLPS2 Fiber Patch Cord

Part Number FAPC-SPLPS2
Fiber Type Single mode 9/125um
Cable Type 2.0mm Duplex Zipcord
Fiber Connector SC/UPC , LC/UPC
End Face Polishing PC, UPC
Diameter Options 1.6mm, 1.8mm, 2.0mm, 3.0mm
Cable Length Default or customized length
Tight Buffer Inside 0.9mm
Strengthen Member Kevlar
Sheath Material PVC or LSZH
Length Tolerance (<15 meters ) -0/+100mm
Length Tolerance (>15 meters ) -0/+10%
Jacket Color Yellow ( SM ) or other
Durability 500 cycles(0.2 dB max increase),
1000 mate/demate cycles
Operating Temp. -20 °C to +70°C
Storage Temp. -40 °C to +85°C
Ferrule Concentricity < 1μm, Other Ferrule Concentricity < 1μm

Carrier Grade Single Mode Optical Fiber Patch Cord SC To LC Duplex Fiber Jumper
