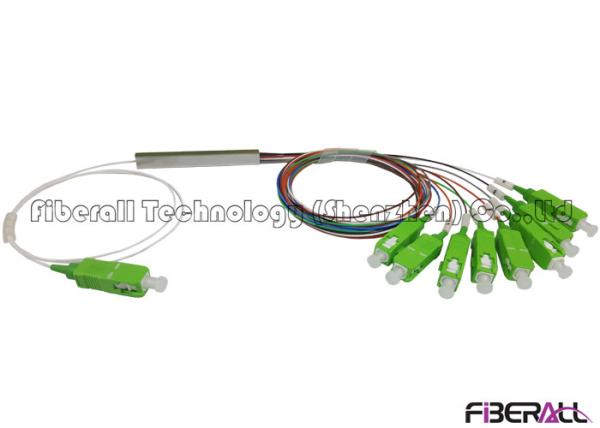

SC/APC 1x8 Mini Steel Tube Fiber Optic PLC Splitter With Excellent Stability
SC/APC 1x8 Mini Steel Tube Fiber Optic PLC Splitter With Excellent Stability
SC/APC 1x8 Mini Steel Tube Fiber Optic PLC Splitter With Excellent Stability
SC/APC 1x8 Mini Steel Tube Fiber Optic PLC Splitter With Excellent Stability
Specifications
Brand Name :
Fiberall or OEM
Model Number :
FA-PLCM1×8SA
Certification :
RoHS
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram,PayPal
Delivery Time :
Upon Order Qty
Packaging Details :
Blister Box/Bubble Wrap/Carton
Product Name :
Mini PLC Splitter
Fiber Port :
1x8
Optical ratio :
8x12.5
Pigtail type :
SC/APC 0.9mm 1.5m
Fiber type :
SM G657A1
Cable sheath :
LSZH/LSOH
Wavelength :
1260 ~ 1650 nm
Steel tube size :
50*7*4mm
Description

FA-PLCM1×8SA,SC/APC 1x8 Mini Steel Tube Fiber Optic PLC Splitter With Excellent Stability

The rapid development of communication industry has appeared Wan, metropolitan area network, LAN, private network etc.. Now, optical fiber communication develops from FTTP, FTTH to communication trunk, metropolitan area network, LAN and private network. FTTH's core optical device, fiber optic PLC splitter is an indispensable part of the FTTH network.

Isolation is the optical signals isolate ability of fiber optic plc splitter to other optical paths. In all index, isolation is more important for optical splitter. In actual system applications, devices with isolation above 40dB are often needed; otherwise the performance of the whole system will be affected.

In addition to the isolation, stability is another important index to measure the quality of fiber optical PLC splitter. The so-called stability means, when the outside temperature changes and working condition of other devices also changes, the ratio of fiber optic PLC splitter and other performance should remain unchanged. Actually, stability of fiber optic PLC splitter entirely depends on the technological level of the manufacturer; products from different manufacturers are with big quality difference. In practice, Fiberall also meet a lot of poor quality fiber optic PLC splitter, not only the performance deterioration, and the damage rate is very high. As an important device in optical fiber truck line, please pay attention that price is not the only factor to be considered, PLC optical splitter with low cost may be made by low technological level.

Main Parameters of 1x8 FTTH PLC Splitter

Fiber Ports 1x8
Wavelength Range 1260~1650nm
Insertion Loss(dB) Max. 10.5
Loss Uniformity(dB) Max. 0.8
Polarization Dependent Loss (PDL/dB) Max. 0.2
Optical Power(mw) Max. 300
Return Loss(dB) Min. UPC: 50 APC: 55
Directivity(dB) Min. 55
Fiber Type Bend Insensitive SM G657A1 Fiber
Relative Humidity(rh) 5% ~ 85%
Operating Temperature(° C) 0 ~ 70
Storage Temperature(° C) -40 ~ 85
Encapsulation Options Bare Fiber, Mini Steel Tube, ABS Module, LGX Box, Wall Mounted Patch Box, 1U or 2U Rack-Mount Patch Panel, FDB Box or Fiber Splice Joint Closure
Package Dimension Bare Fiber Type L*W*H mm 50*4*4
Mini Steel Type L*W*H mm 60*12*4
ABS Module Type L*W*H mm 120*80*20
LGX Box Type L*W*H mm 130*100*50
Rack Mounted Type L*W*H mm 1U 19”
FDB Box L*W*H mm Customized
