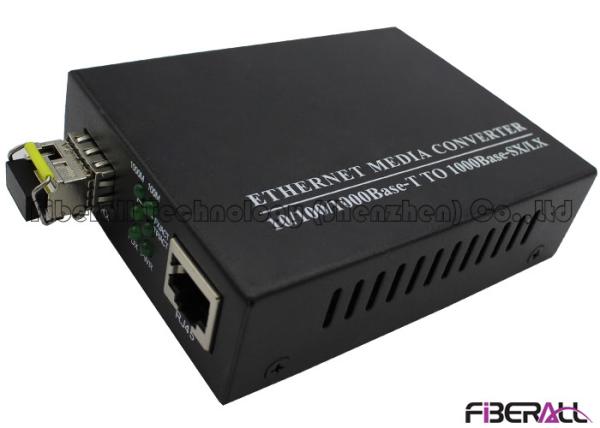

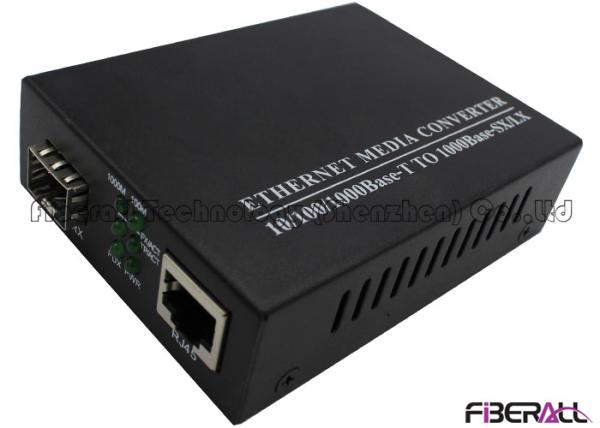

Gigabit SFP Ethernet Fiber Media Converter With LC Single Fiber Optical Transceiver
Gigabit SFP Ethernet Fiber Media Converter With LC Single Fiber Optical Transceiver
Gigabit SFP Ethernet Fiber Media Converter With LC Single Fiber Optical Transceiver
Gigabit SFP Ethernet Fiber Media Converter With LC Single Fiber Optical Transceiver
Specifications
Brand Name :
Fiberall or OEM
Model Number :
FAMC-SFPG2
Certification :
CE,FCC,RoHS
Place of Origin :
China
MOQ :
1 set
Price :
Upon request
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Delivery Time :
3-5 days
Packaging Details :
Cardboard box/Carton
Product name :
SFP Fiber Converter
Fiber module :
SFP
Fiber interface :
LC simplex
Speed rate :
10/100/1000M
Reach distance :
Depends on module
Power supply :
External adapter
Description

FAMC-SFPG2,Gigabit SFP Ethernet Media Converter With LC Single Fiber Optical Transceiver

There are two kinds of working mode with fiber media converters, one is full duplex and half duplex.

Full duplex mode is that when the sending and receiving data, are transmitted from two different lines, both communication sides can send and receive data at the same time, this is a full duplex transmission. In full duplex mode, the transmitter and receiver are set at each end of the communication system, so that the data can be transmitted in two directions simultaneously. Full duplex mode does not require directional switching, so there is no delay in switching operation.

Half duplex mode refers to use of the same transmission line as receiving and sending, although the data can be transmitted in two directions, but it cannot send and receive data simultaneously on both communication sides at the same time, this is half duplex. When half duplex mode is adopted, the transmitter and receiver of each end of the communication system are switched to the communication line through the receiving / sending switch, since it need time to make the direction switching so time delay can be generated.

Product Parameters

Part number FAMC-SFPG2
Compliant Standards

IEEE802.3z/ab

1000BASE-FX/TX 1000M-Ethernet
IEEE802.3x
Data rate 10/100/1000M
Fiber Type SMF 8.3/125,8.7/125,9/125,10/125um
Transmitting distance 15 kilometers
Fiber interface LC or SC
RJ-45 Port Auto-MDI/MDIX
Network Cable Twisted pair Cat.5 UTP Cable: 100m
Input Voltage AC100V-AC240V/50-60HZ
Temperature range

Operational Temperature: 0 ～ +50℃

Store Temperature: : -20 ～ +70℃
Humidity 5%~90% no coagulation
Brand Fiberall or OEM

Main Characteristics

Standalone design with compact hardware;

Auto-negotiation Ethernet port (half or dull duplex mode);

Auto-crossover Ethernet port (support auto MDI/MDI-X);

With SFP slot and support various SFP transceivers;

Simple design easy for installation and troubleshooting;

Suitable for long haul gigabit Ethernet;

Compliant with IEEE802.3 10Base-T, IEEE802.3u 100Base-Tx, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX, IEEE802.3x;

Support link loss forwarding.
