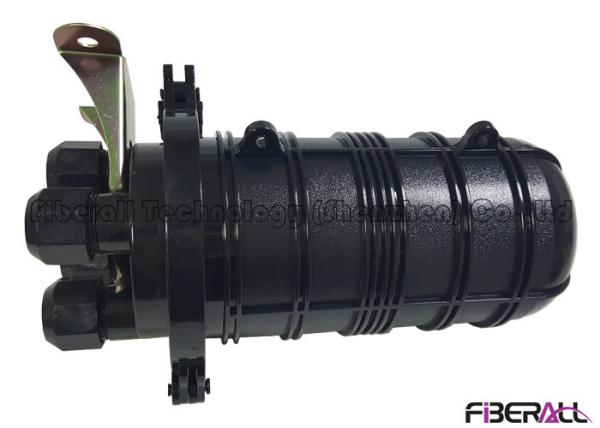

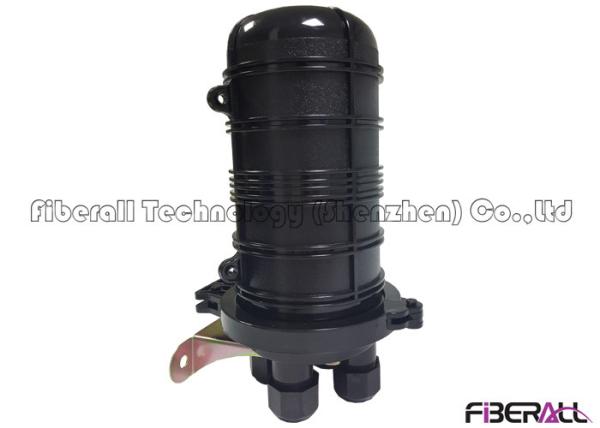

24 Fibers Mini Dome and Vertical Type Optical Cable Splice Joint Closure
24 Fibers Mini Dome and Vertical Type Optical Cable Splice Joint Closure
24 Fibers Mini Dome and Vertical Type Optical Cable Splice Joint Closure
24 Fibers Mini Dome and Vertical Type Optical Cable Splice Joint Closure
24 Fibers Mini Dome and Vertical Type Optical Cable Splice Joint Closure
24 Fibers Mini Dome and Vertical Type Optical Cable Splice Joint Closure
Specifications
Brand Name :
Fiberall
Model Number :
FA-FSC-V1/24
Certification :
RoHS
Place of Origin :
China
MOQ :
100pcs
Price :
On request
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Delivery Time :
4-7 working days
Packaging Details :
Inner Carton/Outer Carton
Product name :
Fiber Joint Closure
Input/output number :
4 ports
Metal part :
color steel
Maximum capacity :
48 fibers
Cassette quantity :
1-4 pieces
Sealing type :
Mechanical
Installation method :
Pole, Aerial or wall mounted
Structure Type :
Dome type
Color :
Black
Origin :
China
Description

FA-FSC-V1/24, 24 Cores Mini Type Dome and Vertical Optical Fiber Cable Splice Joint Closure Mechanical Sealing

Main Features Of FA-FSC-V1/24 Fiber Optic Splice Closure

1, The splice closure is with imported high tensile construction plastic;

2, Overlap structure in splicing tray easy for installation;
3, Suitable for ordinary fiber and ribbon fiber;

4, Perfect leak proofness and function;
5, Perfect and reliable sealing performance;

6, Fiber bending radius guaranteed more than 40mm;
7, With full accessories like fiber tray, sticker, protection sleeve and so on convenient for operations;

8, The fiber splice closure can be used repeatedly;
9, For aerial, duct, and direct buried applications;

10, Screw type mechanical sealing is convenient for operation.

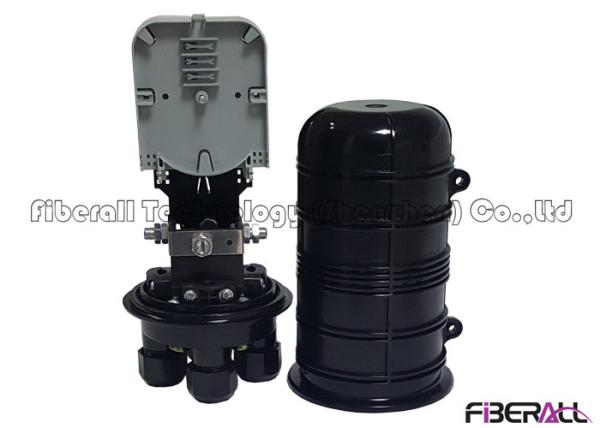

Main Components of FA-FSC-V1/24 Mechanical Fiber Splice Closure

No. Name of components Quantity Usage Fiberall Remarks
1 Main cover 1 piece Protecting fiber cable splices in whole

Height x Diameter

208mm x 132mm
2 Fiber splice tray 2 trays (bunchy) Fixing heat shrinkable protective sleeve and holding fibers Suitable for: Bunchy:4,6,8,12,(cores)
3 Fiber holding tray 1 pcs Holding fibers with protective coat
4 Base 1set Fixing internal and external structure
5 Plastic hoop 1 set Fixing between FOSC cover and base
6 Seal fitting 1 piece Sealing between FOSC cover and base
7 Pressure testing valve 1 set After inject air, it is used for pressure testing and sealing testing Configuration as per requirement
8 Earthing deriving device 1 set Deriving metal parts of fiber cables in FOSC for earthing connection Configuration as per requirement

24 Fibers Mini Dome and Vertical Type Optical Cable Splice Joint Closure
