1590nm 1610nm CWDM SMF LC Duplex DOM Transceiver Module
1590nm 1610nm CWDM SMF LC Duplex DOM Transceiver Module
1590nm 1610nm CWDM SMF LC Duplex DOM Transceiver Module
1590nm 1610nm CWDM SMF LC Duplex DOM Transceiver Module
1590nm 1610nm CWDM SMF LC Duplex DOM Transceiver Module
1590nm 1610nm CWDM SMF LC Duplex DOM Transceiver Module
1590nm 1610nm CWDM SMF LC Duplex DOM Transceiver Module
1590nm 1610nm CWDM SMF LC Duplex DOM Transceiver Module
Specifications
Brand Name :
CY COM
Model Number :
CY 10G XFP CWDM
Certification :
ISO9001:2015, ISO14001:2015, ROSH
Place of Origin :
Shenzhen,China
MOQ :
10PCS
Payment Terms :
T/T, Western Union
Supply Ability :
50k/Month
Delivery Time :
5-8 days
Packaging Details :
PE foam and Carton box
Product Name: :
fiber optic transceiver module
Type: :
XFP 10G
Wavelength: :
1470nm 1590nm 1610nm
Max Distance: :
80km
Data Rate: :
10Gbps
Fiber Interface: :
Duplex LC
Description

1590nm 1610nm CWDM SMF LC Duplex DOM Transceiver Module

10G XFP CWDM 1470nm 1590nm 1610nm 80KM DOM SMF LC Duplex Optical Transceiver Module

Product Description:

10Gb/s XFP CWDM transceivers are compliant with the current XFP Multi-Source Agreement (MSA) Specification. They comply with 10-Gigabit Ethernet 10GBASE-ZR/ZW per IEEE 802.3ae and 10G Fibre Channel 1200-SM-LL-L. Digital diagnostics functions are available via a 2-wire serial interface, as specified in the XFP MSA.

CY COM optical transceivers are compatible with Cisco, Huawei, Extreme, HP, Finisar, Broadcom, Foundry, Alcatel, D-link, Enterasys, Netgear, Juniper, Nortel, IBM, Gigamon, Linksys, Allied, Zyxel, Dell, Redback, H3C, ZTE, Ruijie, Ciena , Alcatel-lucent, Allied Telesis, Chelsio, Palo Alto Networks, lxia, MikroTik, MRV and etc.

Features:

  • Supports 9.95Gb/s to 11.3Gb/s bit rates

  • Compliant with XFP MSA
  • Hot-pluggable XFP footprint
  • Transmission distance of 80km over Single mode fiber

  • Low Power dissipation

  • Superior Thermal and EMI integrity performance to support high port densities

  • LC Duplex optical connector interface conforming to ANSI TIA/EIA604-10 (FOCIS 10)

  • Built-in digital diagnostic functions

  • Temperature range -5°C to 70°C or Indutrial Temperature range on request

  • RoHS-6, CE, FDA, FCC, TUV, UL certifactes

Specification
Series Product Description
10G XFP XFP, 10Gb/s,SR, 850nm, MMF, LC Duplex, 300M
XFP, 10Gb/s, LR, 1310nm, SMF, LC Duplex, 10KM
XFP, 10Gb/s, ER, 1550nm, SMF, LC Duplex, 40KM
XFP, 10Gb/s, ZR, 1550nm, SMF, LC Duplex, 80KM
XFP, 10Gb/s, CWDM, 1470-1610nm, SMF, LC Duplex, 80KM
XFP, 10Gb/s, DWDM, 1530~1565nm, SMF, LC Duplex, 80KM
Application

  • 10GBASE-ZR/ZW Ethernet
  • SONET OC-192/SDH STM-64
  • 80KM 10G Fiber Channel

  • CWDM Networks

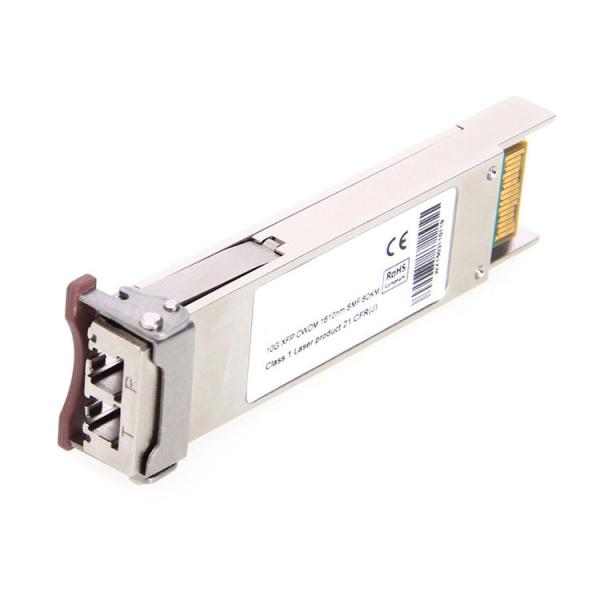

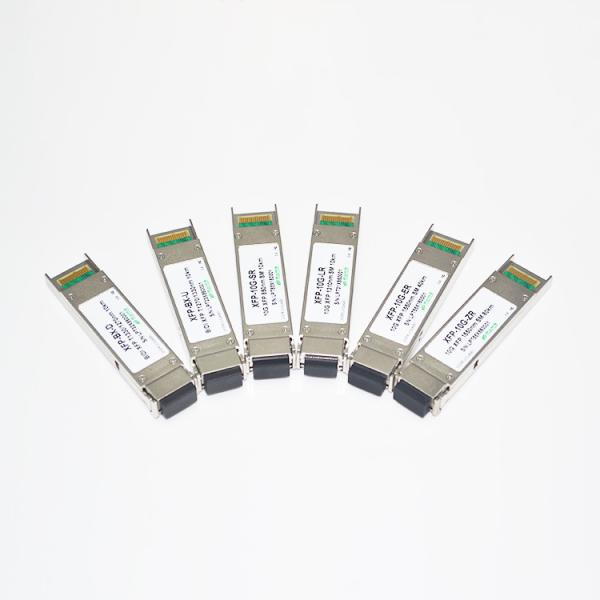

Product Pictures


1590nm 1610nm CWDM SMF LC Duplex DOM Transceiver Module1590nm 1610nm CWDM SMF LC Duplex DOM Transceiver Module1590nm 1610nm CWDM SMF LC Duplex DOM Transceiver Module

1590nm 1610nm CWDM SMF LC Duplex DOM Transceiver Module

1590nm 1610nm CWDM SMF LC Duplex DOM Transceiver Module
