12 Core MPO MTP TO 12 LC Duplex patch cord
12 Core MPO MTP TO 12 LC Duplex patch cord
12 Core MPO MTP TO 12 LC Duplex patch cord
12 Core MPO MTP TO 12 LC Duplex patch cord
12 Core MPO MTP TO 12 LC Duplex patch cord
12 Core MPO MTP TO 12 LC Duplex patch cord
12 Core MPO MTP TO 12 LC Duplex patch cord
12 Core MPO MTP TO 12 LC Duplex patch cord
12 Core MPO MTP TO 12 LC Duplex patch cord
12 Core MPO MTP TO 12 LC Duplex patch cord
12 Core MPO MTP TO 12 LC Duplex patch cord
12 Core MPO MTP TO 12 LC Duplex patch cord
Specifications
Brand Name :
US CONEC /SENKO / Customized
Model Number :
MPO-12 LC
Certification :
ISO9001:2015, ISO140001:2015, ROSH
Place of Origin :
Shenzhen China
MOQ :
10pcs
Payment Terms :
T/T, Western Union
Supply Ability :
50K/Month
Delivery Time :
3-8 days
Packaging Details :
PE bag
Polarity :
A/B/C
Loss data :
Elite loss/Standard loss
Connector type :
Female / Male
Cable color :
Yellow
Cable Material :
LSZH / OFNP / PVC
Fiber type :
G652D / G657A /G657B
LC Connector Type :
Duplex / Simplex / Uniboot
Breakout lengthe :
0.5M / 1M /1.5M / Customized
Description

Single mode SM MPO Breakout Patch Cord 12 core MPO to 6 LC-DX Fanout Cable

Description:

4cores/8cores/12cores/24cores breakout fan-out patch cords, MPO/MTP-SC OM1/OM2/OM3. Key up, Key down types. Short length(<=35cm) used inside of module box.

MTP/MPO cables arecomposed of MTP/MPO connectors and fiber optic cables, other connectors such asLC may also be found in some kinds of MTP/MPO cables. The fiber cables used aregenerally OM3 and OM4, which are laser optimized multi-mode optical fibers. Itis important to have an overall understanding of MTP/MPO connectors (known asmulti-fiber push-on and also as multi-path push-on).

Features:

Backbone installation

100% tested before delivery

MTP And MPO available

Use 12/24 Cores Fiber Connector

Trunk Cable Counts usually 12 / 24 / 36 / 48 / 72 /96 / 144-fibers

3.0/3.6 mm Round Cable or Customized

SM/OM1/OM2/OM3/OM4 or Customized

LSZH, OFNR, OFNP available

Applications:

The Data Center application with high dense degree environment

The optical fiber to the building

The internal connector application in fiber equipment.

Specifications:

arameter Unit SM Standard SM Low loss MM Standard MM Low loss
Insertion loss Typical dB 0.35 0.2 0.35 0.2
Max 0.75 0.35 0.65 0.35
Return loss dB APC≥50 ≥ ≥35
PC≥40
Repeatability dB ≤0.1
Interchangeabilty dB ≤0.3(Connector Randomly)
Durability dB ≤0.3 ≤0.3(change 1000 matings)
Vibration dB ≤0.3(10~55Hz)
Operating Temperature ℃ -25~+70


Order infomation:

Range of Mode Single mode or Multi mode
Cable Type Simplex, Duplex Ziocord. or Multi-cores
Connector Style SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc
Polish or Ferrule Interface Type PC, UPC, APC
Cable Diameter 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm
Outer Jacket PVC /LSZH/OFNP
Jacket Color SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5 Lemon Green
Durability 500 cycles(0.2 dB max increase). 1000mate/de mate cycles
Operating Temp. -25℃ to +70℃
Storage Temp. -40℃ to +85℃

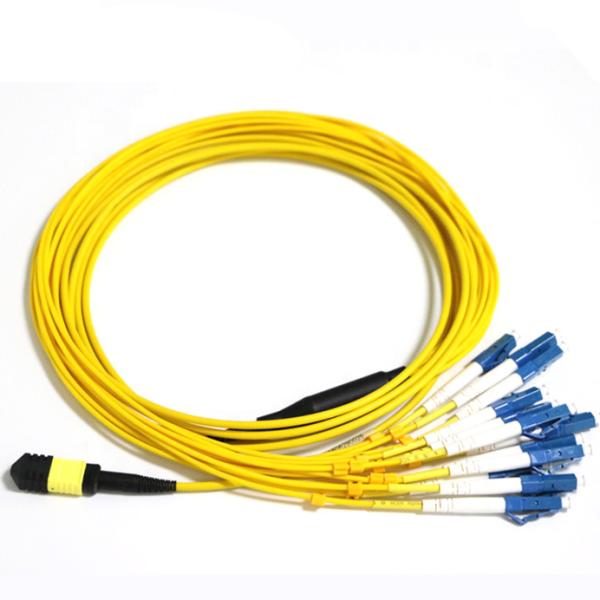

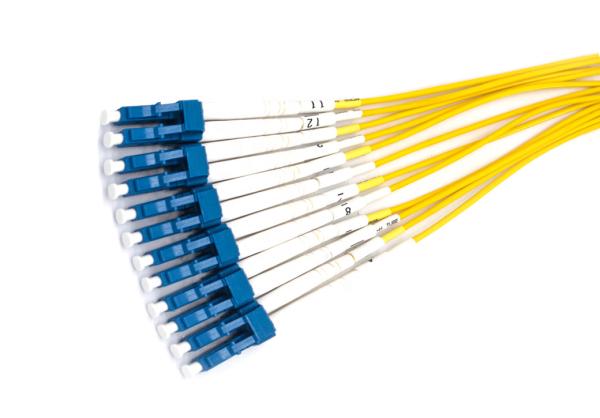

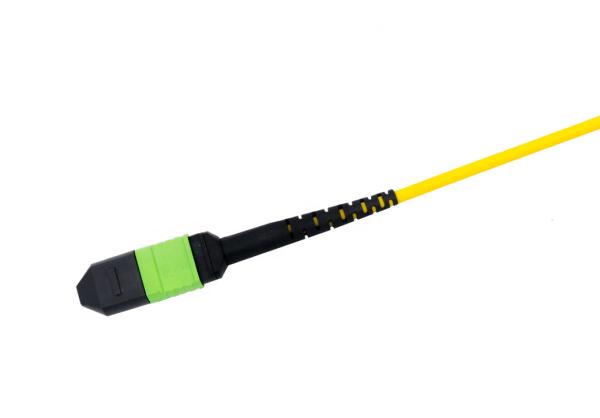

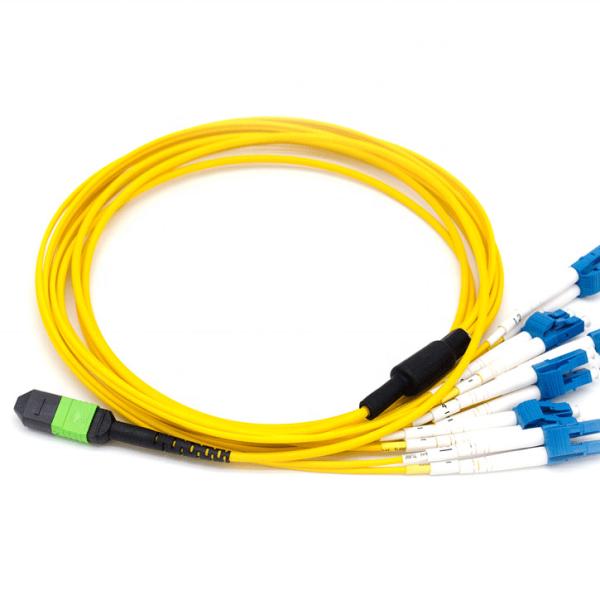

Drawing and Product Picture:

12 Core MPO MTP TO 12 LC Duplex patch cord

12 Core MPO MTP TO 12 LC Duplex patch cord12 Core MPO MTP TO 12 LC Duplex patch cord
