ABS Lightweight 144 Core MPO LC 24F Optical Cassettes
ABS Lightweight 144 Core MPO LC 24F Optical Cassettes
ABS Lightweight 144 Core MPO LC 24F Optical Cassettes
ABS Lightweight 144 Core MPO LC 24F Optical Cassettes
ABS Lightweight 144 Core MPO LC 24F Optical Cassettes
ABS Lightweight 144 Core MPO LC 24F Optical Cassettes
ABS Lightweight 144 Core MPO LC 24F Optical Cassettes
ABS Lightweight 144 Core MPO LC 24F Optical Cassettes
ABS Lightweight 144 Core MPO LC 24F Optical Cassettes
ABS Lightweight 144 Core MPO LC 24F Optical Cassettes
ABS Lightweight 144 Core MPO LC 24F Optical Cassettes
ABS Lightweight 144 Core MPO LC 24F Optical Cassettes
ABS Lightweight 144 Core MPO LC 24F Optical Cassettes
ABS Lightweight 144 Core MPO LC 24F Optical Cassettes
Specifications
Brand Name :
CY COM
Certification :
ISO9001:2015 ;ROSH
Place of Origin :
Shenzhen China
MOQ :
20pcs
Payment Terms :
Western Union, T/T
Supply Ability :
2K/Month
Delivery Time :
4-8 days
Packaging Details :
Carton and Wooden
Fiber qty :
144core
Patch penal :
9 x 4 LC x 4 part / 18 x 2 LC x 4 part
Height :
482.6X454. 5X 44 mm
Material :
Cold Rolled Steel / ABS Plastic
Color :
Black
Application :
Network, Telecommunications
Adapter Type :
LC Quad / LC Duplez
Aadpter color :
Beige / Blue / Green /Auqa / purple
Description

ABS Lightweight 144 Core MPO LC 24F Optical Cassettes

19'' 1U MPO/MTP-LC 24F Optical Cassettes 48,72,96,144 Core MPO Fiber Optic Patch Panel

Description

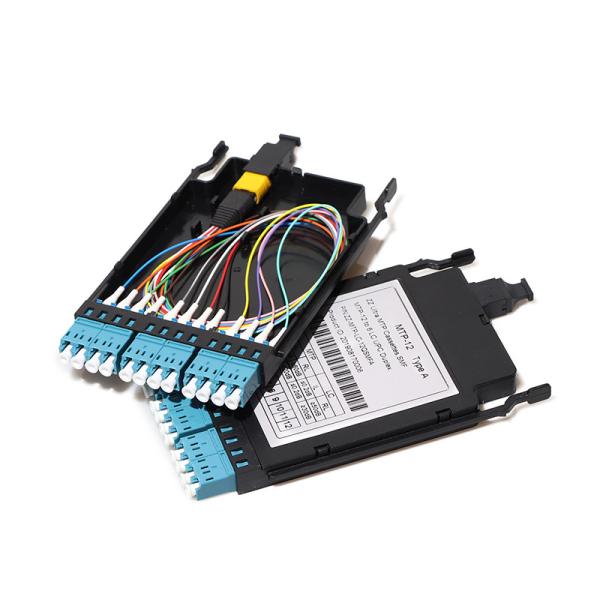

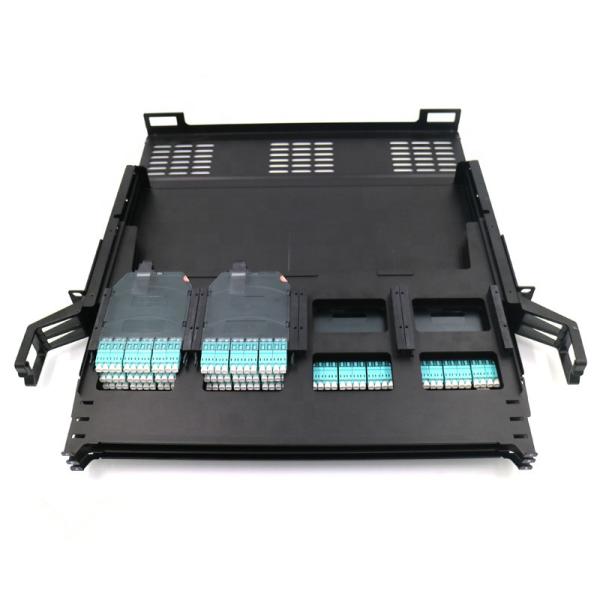

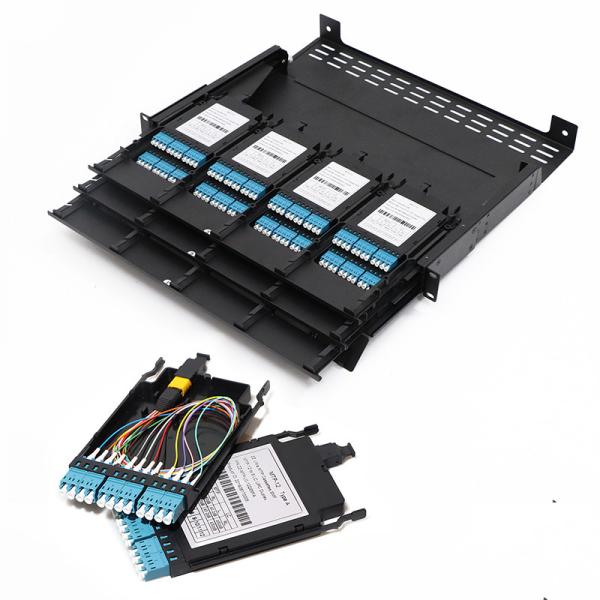

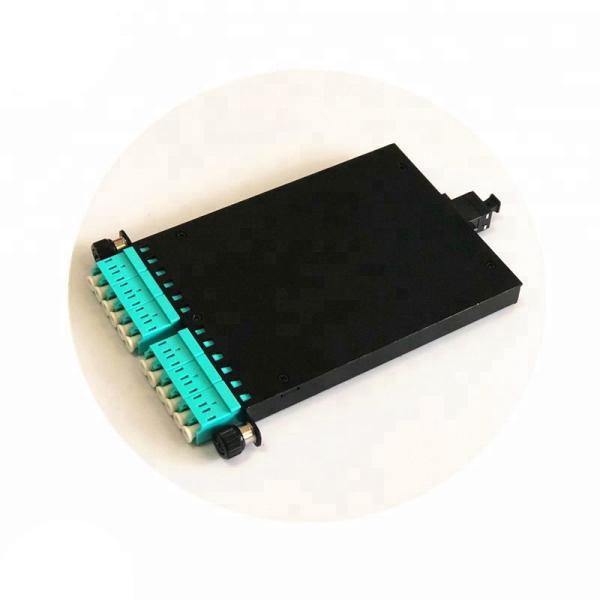

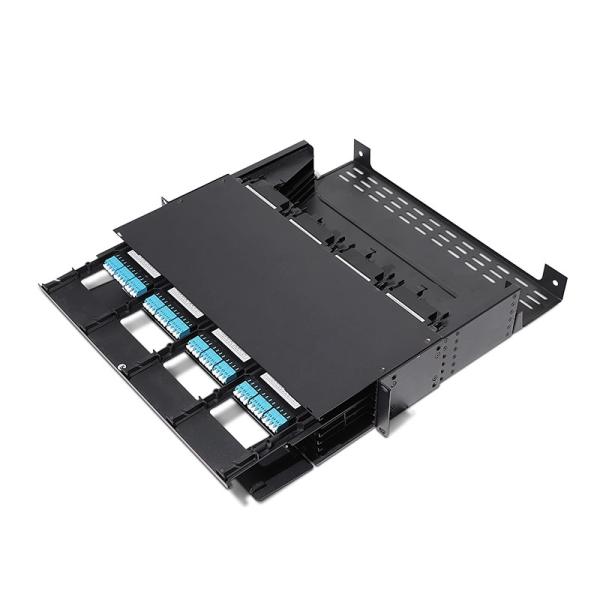

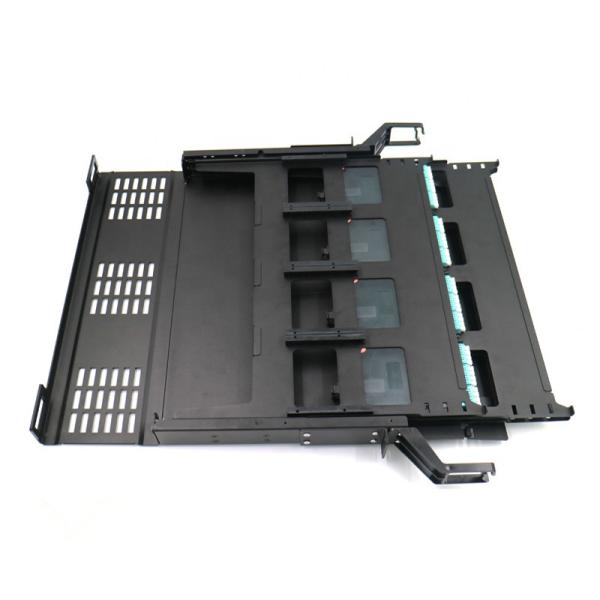

This Big capacity MPO Module is an MPO pre-terminated ultra-high-density wiring box, 19-inch, 1U height up to 144 cores, and can be used in high-density wiring applications such as computer centers, computer rooms, and databases. The front and rear removable top cover, pull-out double guide, detachable front bezel, ABS lightweight module box and other technical applications make this Module easy to use in high-density scenes whether it is in the cable or cable. 144 Module has a total of E-layer trays, each with independent aluminum guide rails, and the sliding distance is 110mm. Four MPO module boxes are installed on each tray, and each module box is installed with 6 DLCs and 12 cores. Each module box has a separate ABS rail for easy sliding installation without restrictions.
Features
1. Ultra-high density wiring application scenario
2. Standard 19-inch width
3. Ultra high density 1∪144 core
4. Double rail design for easy installation and maintenance
5. Lightweight ABS material MPO module box
6. Spray surface treatment process
7. Customizable color and silk screen LOGO
Application
Data communication network
Optical System Access network
Storage area networking fiber channel
High density architectures
Technical indicators
Execution standard: YD/T 778 optical distribution frame
Operating temperature: -5 ° C ~ +40 ° C; storage temperature: -25 ° C ~ +55 ° C
Salt spray experiment: 72 hours
Relative humidity: ≤95% (at +40 °C)
Atmospheric pressure: 76-106kpa
Withstand voltage level: ≤3000V (DC), 1 min without breakdown, no arcing insulation resistance: ≥1000M9/500V (DC)
Insertion loss: UPC≤0.2dB; APC≤0.3dB
Return loss: UPC≥50dB; APC≥60dB
Insertion durability: ≥1000 times
Adhesion: ISO rating: Level 1;
ASTM rating: 4B.
model Product size (mm) Maximum number of cores Outer box size (mm) colour Standard accessories
CYMPO144 482.6X454. 5X44 144 630X535X115 andard accessories
5X		 5X150 cable tie 1 5 / 12X100 magic hook and loop with 12 / 6X100 winding tube

Specification:

Performance Level
Standard
Elite
Connector
Mode
Endface
IL(max) (dB)
RL(min) (dB)
IL(max) (dB)
RL(min) (dB)
MPO/MTP
SM
12F/APC
≤0.70
≥60
≤0.35
≥60
24F/APC
≤0.75
≥60
≤0.35
≥60
48F/APC
≤0.75
≥60
MM
12F/PC
≤0.50
≥20
≤0.35
≥20
24F/PC
≤0.50
≥20
≤0.35
≥20
48F/PC
≤0.50
≥20
LC/SC/FC/ST
SM
≤0.30
≥60
≤0.10
≥60
UPC
≤0.20
≥50
≤0.10
≥50
MM
PC
≤0.20
≥30
≤0.10
≥30

Product Show:

ABS Lightweight 144 Core MPO LC 24F Optical Cassettes

ABS Lightweight 144 Core MPO LC 24F Optical Cassettes

ABS Lightweight 144 Core MPO LC 24F Optical Cassettes
