Specifications
Brand Name :
US CONEC
Model Number :
MT-MT
Certification :
ISO9001:2015, ISO140001:2015, ROSH
Place of Origin :
Shenzhen China
MOQ :
10pcs
Payment Terms :
T/T, Western Union
Supply Ability :
50K/Month
Delivery Time :
5-8 days
Packaging Details :
PE bag
Polarity :
A/B/C
Loss data :
Elite loss/Standard loss
Connector type :
Female /Male
Fiber qty :
8 /12 /24 core
Fiber type :
OS1 / OS2 / OM1 / OM2 / OM3 / OM4
Insert loss :
≤0.35 dB (Elite)
Description

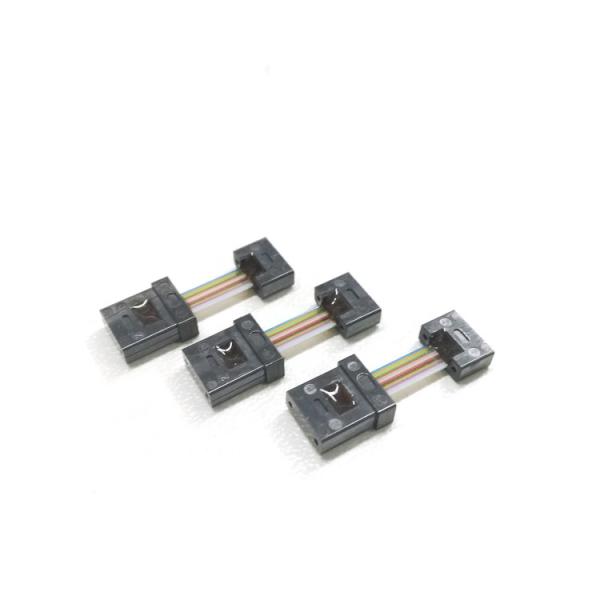

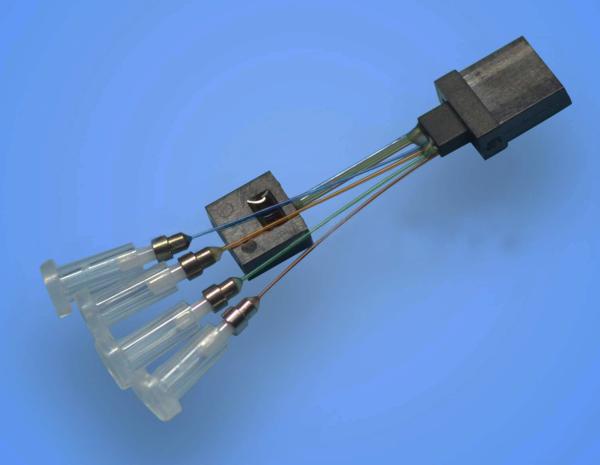

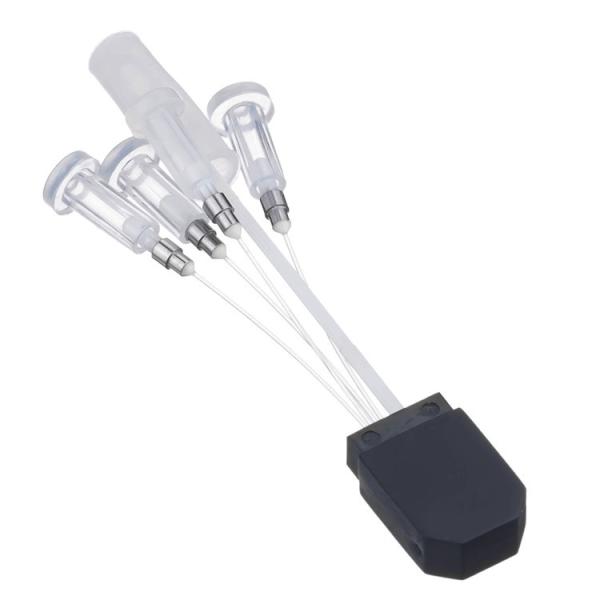

0.35dB Ferrule Patch Cord OM3 OM4 MT FA Module

MT-MT Ferrule High Precision Fiber Optical Patch Cord OM3 OM4 MT FA module

MT-MT Patch Cords are used to provide optical connection for fiber optic electronics. The use of the patch cord provides a quick and easy method for routing fiber patches in data centers, head-ends, cellular hubs and central offices.

Features:

Connector A: MT ferrule ,MTP/MPO

Connector B: MT/Prizm/FA/PZ/Laser-cleave

Fiber shape: ribbon

Fiber count: 12

Fiber type: OM3, OM4; OM1, OM2;OS1,OS2;

Length: 20~100mm, and customized length available

Length tolerance: +300um/-0um

Optical Performance:
Passive coupling with guide pins and 0, 0r 8 degrees

Active coupling with light source and 0~ 45 degrees

Passive coupling with guide pins and 90 degrees

MT IL ≤0.50 dB typical 0.20dB

MT RL≥20dB

Operating case temperature -40~+85 oC

Application:

1. QSFP, QSFP28, QSFP-DD, Micro QSFP, CXP, CFP, CDFP, MiniPod and any parallel optical transceiver modules

2. Ethernet optical network, Infiniband optical network, and Fiber Channel network

Specification:

Connector MT-12C MT-24C
Polishing SM/UPC MM/PC SM/APC SM/PC MM/PC
Insertion Loss(max) ≤0.6dB ≤0.50dB ≤0.65dB ≤0.75dB ≤0.60dB
Return Loss(min) ≥50 dB ≥35 dB ≥60 dB ≥40dB ≥20dB
Tensile Strength <10kg
Durability <0.20 dB typical change, 500 matings
Repeatability ≤0.1dB
Storage , Operating Temperature [°C] -40~+85

packing information:

Products Packing
Inner packing 1piece per plastic bag
Min order 1pieces
10 pieces weight 0.2-3kg
Outer packing Carton box

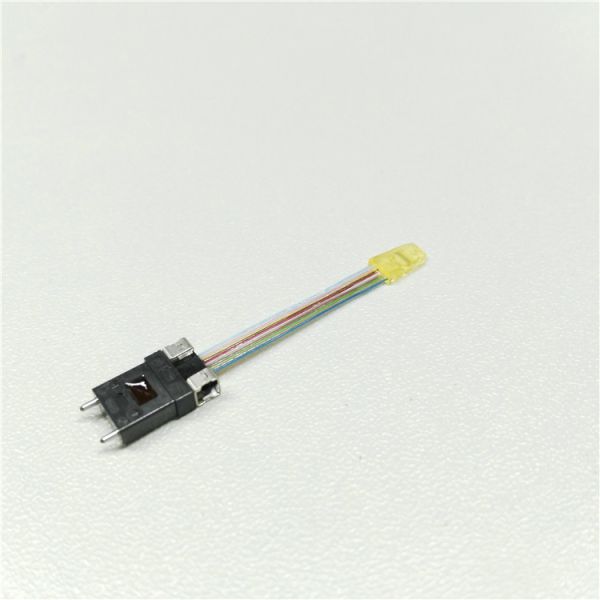

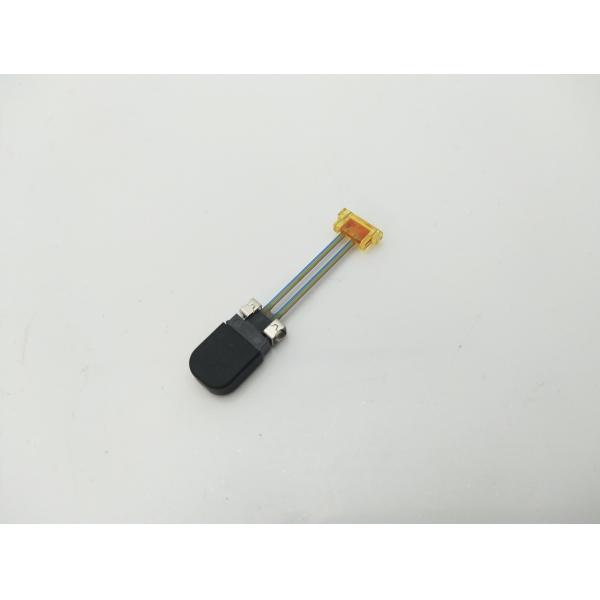

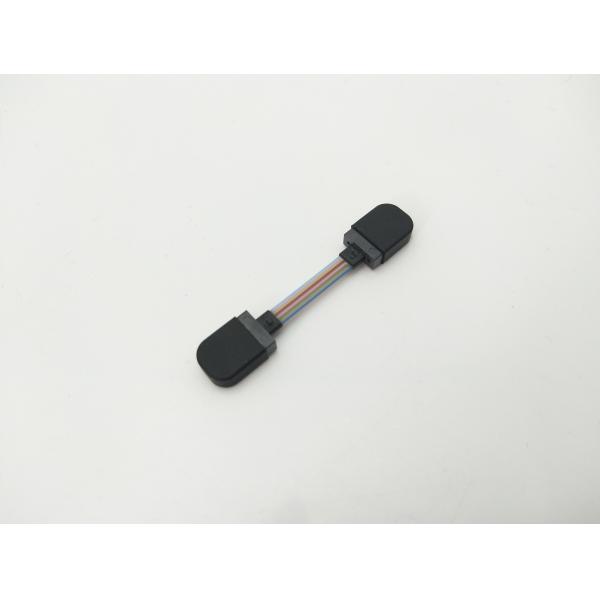

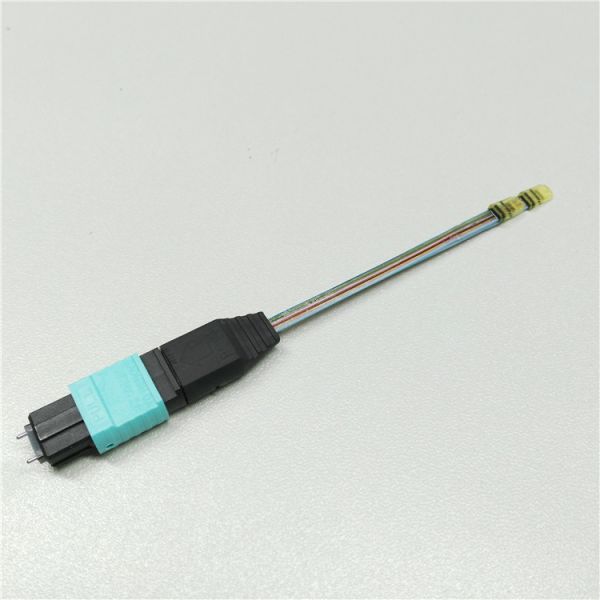

0.35dB Ferrule Patch Cord OM3 OM4 MT FA Module
