Specifications
Brand Name :
US CONEC
Model Number :
MPO Loopback
Certification :
ISO9001:2015, ISO140001:2015, ROSH
Place of Origin :
Shenzhen China
MOQ :
10pcs
Payment Terms :
T/T, Western Union
Supply Ability :
50K/Month
Delivery Time :
5-8 days
Packaging Details :
PE bag
Polarity :
A/B/C
Loss data :
Elite loss/Standard loss
Connector type :
Female /Male
Fiber qty :
8 /12 /24 core
Fiber type :
OS1 / OS2 / OM1 / OM2 / OM3 / OM4
Cable color :
Yellow / Orange / Auqa / Purple /Violet
Description

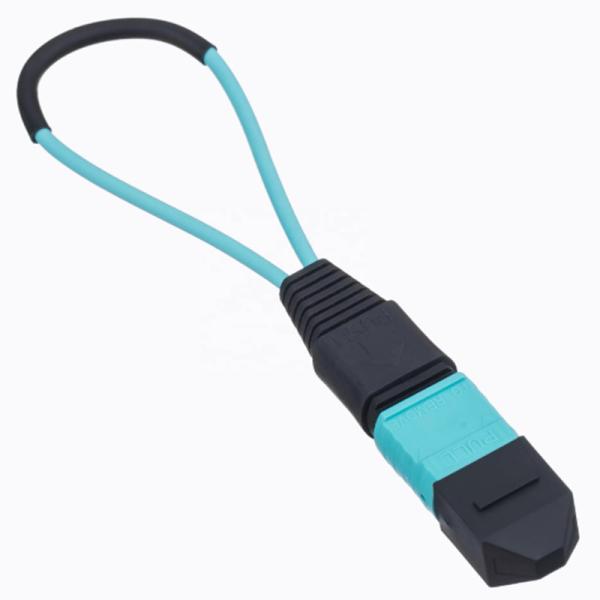

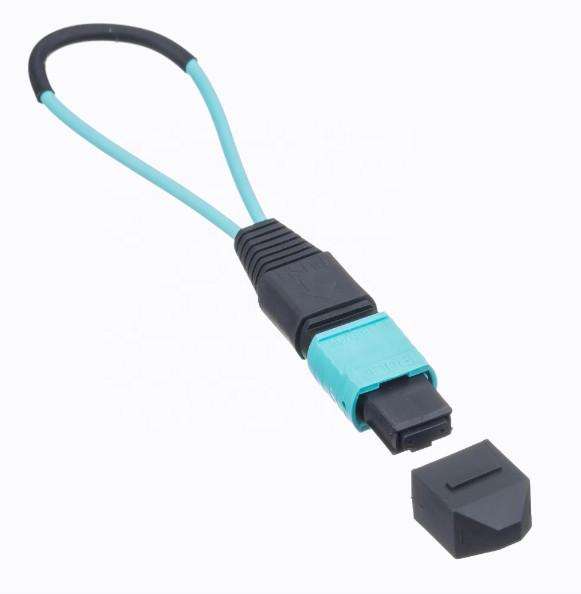

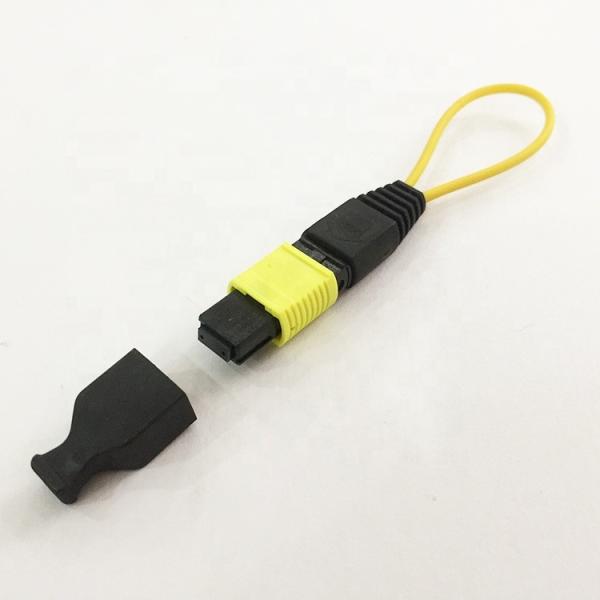

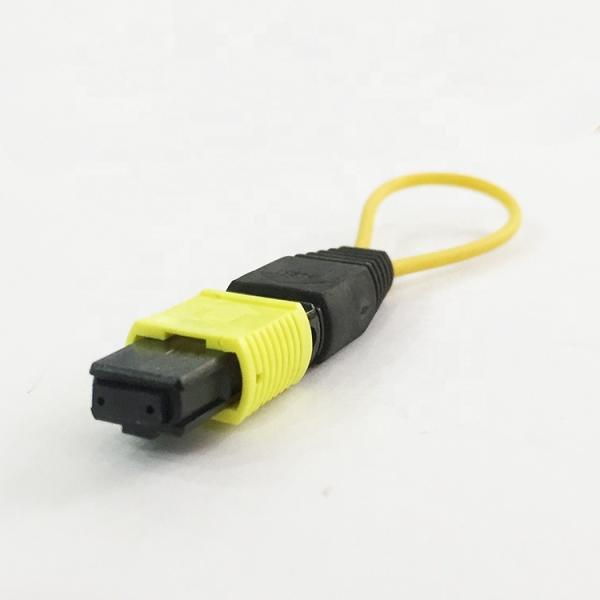

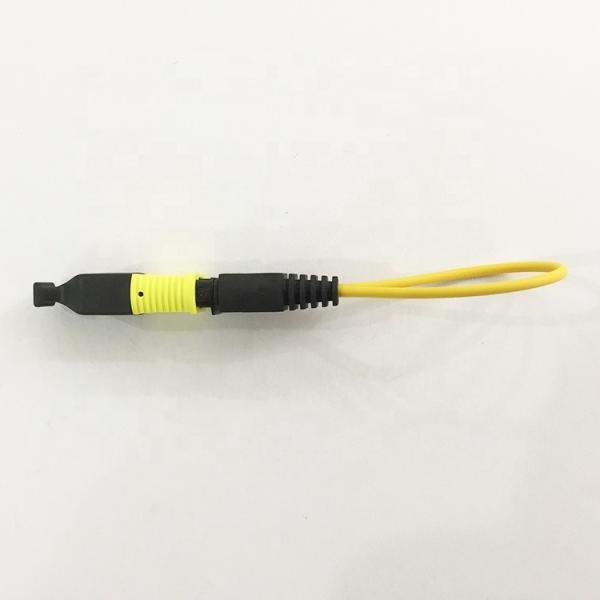

0.3m 12 Core SM MM Female Male MPO MTP Loopback

Fiber Optic MPO MTP Loopback 24 Cores 12 Core SM MM Loopback 0.3m Singlemode Mutilmode Cable

MPO Loopback is used to test the signal return in the system or the network system. Through the return signal, various potential abnormalities in the network link can be detected. This detection is widely used to provide an effective detection method to ensure the normal of the network link.Jiavan company can provide various forms of loop device, MPO has 0.9mm, 2.0mm fiber optic cable, shell type, and so on, but also according to customer requirements customized production

Features:

  • Single multimode optional
  • Plug PC/APC (8 ° Angle) optional
  • The performance stability index is suitable for PIN PIN connection
  • Standard fiber alignment and customization

  • Plug connector lock structure type

  • High density wiring convenient and management system

  • Strict compliance with Telcordia core and RoHS standards

Pin Assignmen

Pin to Pin
1 to 12
2 to 11
3 to 10
4 to 9
5 to 8
6 to 7

Application:

  • Telecommunications network
  • Optical fiber precision communication system
  • Cable loop check

Connector Performance Specifications

Model SM MM
Connector Fiber Count 8, 12, 24 core
Polish PC, APC
Housing Color

Standard (green),

Elite (Yellow)

Standard(Beige)

Elite(Auqa)
Insertion Loss Standard type less than 0.7dB Less than 0.5dB
Insertion loss Elite type Less than 0.35dB Less than 0.3dB
Return Loss PC >50dB, APC>60dB >30dB
Durability (500 matings) less than 0.2dB
Test Eavelength 1310/1550nm 850/1300nm

Fiber Cable Perfomance Specifications

Fiber Type OS2, OM1, OM2, OM3, OM4
Fiber Count 8, 12, 24, 48, 72, 96, 144 cores
Cable Diameter 3.0mm 5.5mm or customized
Jacket Color Yeloow, Orange, Aqua, Purple
Jacket Material OFNR, OFNP, PVC, LSZH
Tensile Strength 500N
Operating Temperature -20 to 70 ℃
Storage Temperature -40 to 75℃

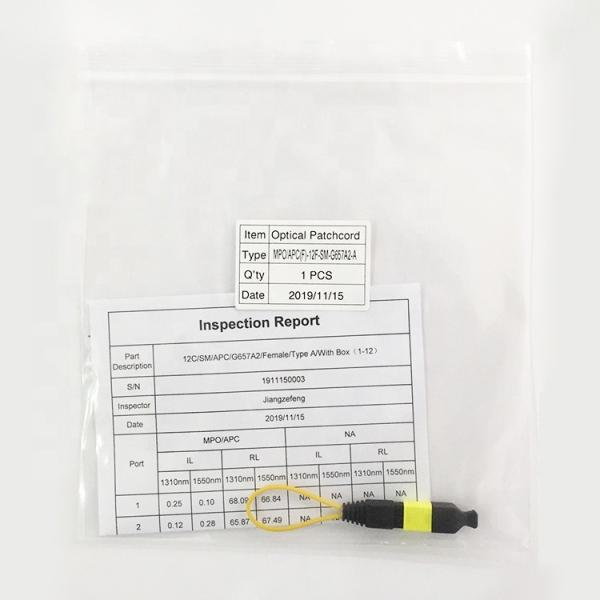

packing information:

Products Packing
Inner packing 1piece per plastic bag
Min order 1pieces
10 pieces weight 0.2-3kg
Outer packing Carton box

0.3m 12 Core SM MM Female Male MPO MTP Loopback0.3m 12 Core SM MM Female Male MPO MTP Loopback

0.3m 12 Core SM MM Female Male MPO MTP Loopback

0.3m 12 Core SM MM Female Male MPO MTP Loopback
