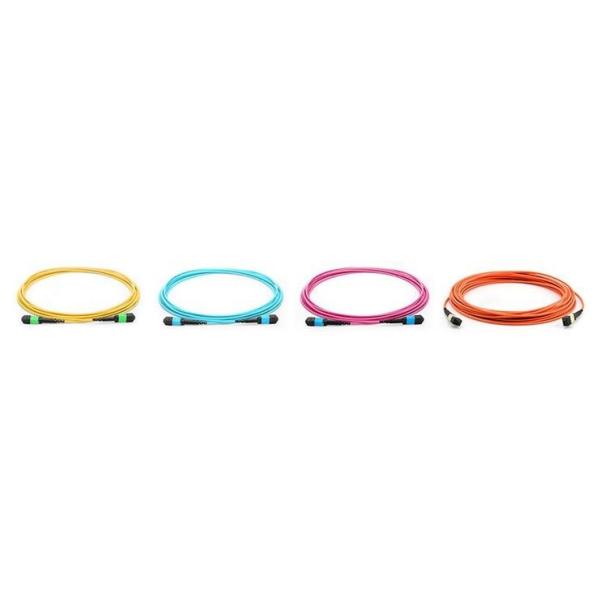

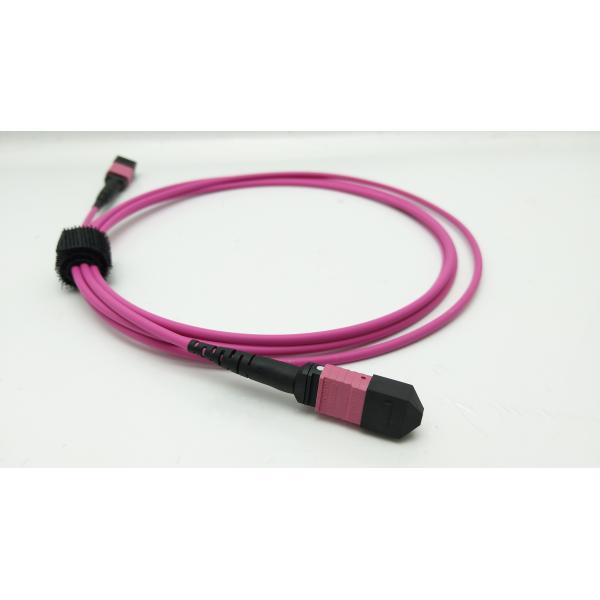

OM1 OM2 OM4 Multimode MM MPO MTP Trunk Cable
OM1 OM2 OM4 Multimode MM MPO MTP Trunk Cable
OM1 OM2 OM4 Multimode MM MPO MTP Trunk Cable
OM1 OM2 OM4 Multimode MM MPO MTP Trunk Cable
OM1 OM2 OM4 Multimode MM MPO MTP Trunk Cable
OM1 OM2 OM4 Multimode MM MPO MTP Trunk Cable
OM1 OM2 OM4 Multimode MM MPO MTP Trunk Cable
OM1 OM2 OM4 Multimode MM MPO MTP Trunk Cable
OM1 OM2 OM4 Multimode MM MPO MTP Trunk Cable
OM1 OM2 OM4 Multimode MM MPO MTP Trunk Cable
Specifications
Brand Name :
US CONEC / SENKO / Customized
Model Number :
MPO-MPO
Certification :
ISO9001:2015, ISO140001:2015, ROSH
Place of Origin :
Shenzhen China
MOQ :
10pcs
Payment Terms :
T/T, Western Union
Supply Ability :
50K/Month
Delivery Time :
5-8 days
Packaging Details :
PE bag
Polarity :
A/B/C
Loss data :
Elite loss/Standard loss
Connector type :
Female /Male
Cable color :
Purple / Violet / Orange
Fiber qty :
8 /12 /24 core
Cable Material :
LSZH / OFNP / PVC
Cable shape :
Round / Ribbon
Fiber type :
OM1 / OM2 / OM4
Description

OM1 OM2 OM4 Mutilmode MM MPO MTP Trunk Cable

12core MTP to MTP Truck Cable Mutilmode MM MPO Patch Cord Purple Violet Cable

MPO/MTP trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.0.35dB IL, MPO Female to MPO Female connector and 3.0mm bunch cable is designed for 40G/100G direct connection and high-density data center applications. Theoretically, trunk cables are available with 12, 24, 48 and 72 fibers. Their ends are terminated with the customer’s choice of 12-fiber or 24-fiber MTP/MPO connectors.

Features:

1. Insertion loss type available in Standard, Elite / Low Loss
2. Fiber count available in 6, 8, 12, and 24
3. MTP/MPO connector type available in Male and Female
4. Fiber type available in SM (G652D, G657A1, G657A2), MM (OM3, OM4)
5. Fanout length available in 0.5m, 1m, etc.
6. Multi-fiber connector type available in MTP, MPO with APC or PC polishing type
7. Single-fiber connector type available in LC, SC with APC or UPC polishing type
8. Factory terminated & tested with guaranteed quality
9. High density to dramatically save space

Applications:

Local Area Network (LAN)

Data communication network

Telecommunication optical transmission network

Optical access network(OAN)

Active device termination

Fiber optics data transmission(FODT)

Test Equipment

CATV

MTP / MPO Specification:

Type Single Mode Single Mode Multi Mode
(APC Polish) (UPC Polish) (PC Polish)
Fiber Count 8,12,24 etc. 8,12,24 etc. 8,12,24 etc.
Fiber Type G652D,G657A1 etc. G652D,G657A1 etc. OM1,OM2,OM3 etc.
Maximum Insertion Loss Elite Standard Elite Standard Elite Standard
Low Loss Low Loss Low Loss
≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.75dB ≤0.35 dB ≤0.60dB
Return Loss ≥60 dB ≥60 dB NA
Durability ≥500 times ≥500 times ≥500 times
Operating Temperature -40℃ ~ +80℃ -40℃ ~ +80℃ -40℃ ~ +80℃
Test Wavelength 1310nm 1310nm 1310nm

Production Equipment :

OM1 OM2 OM4 Multimode MM MPO MTP Trunk Cable

OM1 OM2 OM4 Multimode MM MPO MTP Trunk Cable

OM1 OM2 OM4 Multimode MM MPO MTP Trunk CableOM1 OM2 OM4 Multimode MM MPO MTP Trunk CableOM1 OM2 OM4 Multimode MM MPO MTP Trunk Cable
