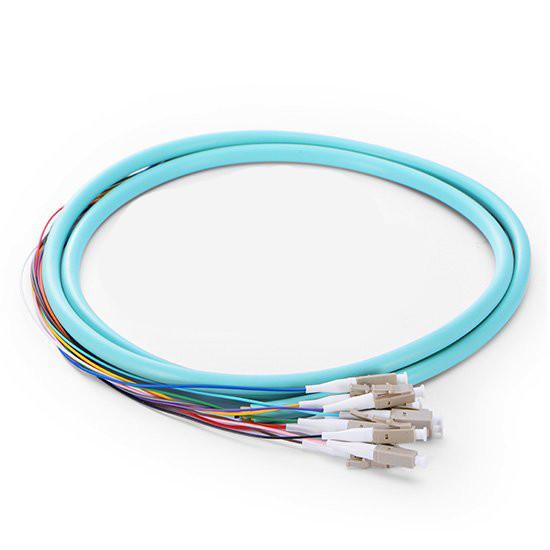

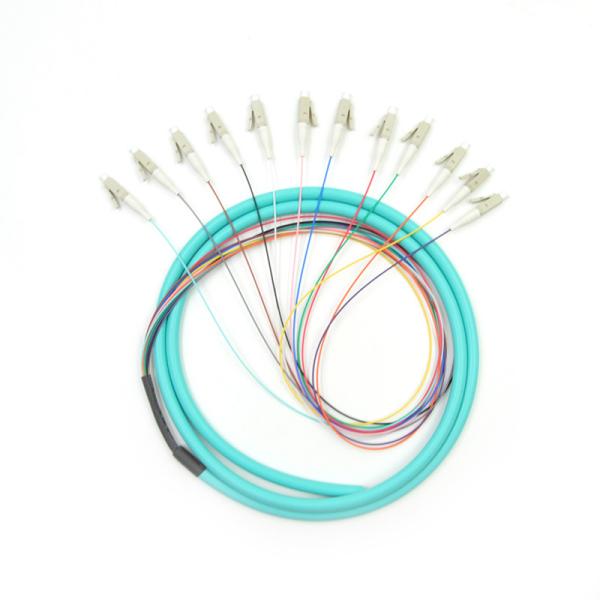

12 Strand 50/125 LC UPC Multimode OM3 Fiber Optic Pigtail
12 Strand 50/125 LC UPC Multimode OM3 Fiber Optic Pigtail
12 Strand 50/125 LC UPC Multimode OM3 Fiber Optic Pigtail
12 Strand 50/125 LC UPC Multimode OM3 Fiber Optic Pigtail
Specifications
Brand Name :
CY COM
Model Number :
LC SC FC ST MPO
Certification :
ISO9001:2015 , ISO14001:2015, RoHS,SGS
Place of Origin :
Shenzhen China
MOQ :
10PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30000pcs per day
Delivery Time :
3-5 working days
Packaging Details :
PE bag or plastic box and Carton box
Length :
1m or customized
Cable color :
Aqua
Connector :
SC,FC,LC
Cable diameter :
0.9mm
Jacket material :
OFNP,PVC.LSZH
Application :
FTTH FTTB FTTX Network
Description
12 Strand 50/125 LC UPC Multimode OM3 Fiber Optic Pigtail
12 Strand 50/125 OM3 Fiber Optic Pigtails LC/UPC Multimode Aqua color cable jacket
Description:
Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.UNIFIBER fiber optic pigtails includes 1fiber, 4/6/8/12 fiber pack with different connectors of SC, LC,FC, ST , with UPC or APC polish type. These can be come with singlemode, multimode or OM3, with 900um tight buffer PVC or LSZH jacket. Widely used in CATV, FTTH/FTTX, telecommunication networks, premise installations, Data processing networks, LAN/WAN network, and more.
Features :
Complying with IEC, Telcordia GR-326-CORE, YD-T 1272.3-2005,standard.
Low insertion loss, high return loss
Good in repeatability and exchangeability
High dense connection, easy for operation
Application:
Telecommunication
Computer networks
CATV networks Active device termination
Instrumentation

Parameters

Parameter: Single mode Multi mode
Insertion Loss ≤0.25dB ≤0.20dB
Return Loss

≥45 dB (PC)

≥50 dB (UPC)

≥60 dB (APC)

≥35 dB (PC)

≥45 dB (UPC)
Wavelength 1310nm,1550nm 850nm,1310nm
Repeatability ≤0.1
Durability ≤0.2 dB typical change, 1000 matings
Interchangeability ≤0.2dB
Cord diameter 3.0mm,2.0mm,0.9mm
Connector Available SC,FC,ST,LC,MU,MTRJ
Fiber Count 4,6,8,12,24fiber…
