Magenta 12 Colored SC MM OM4 Fiber Optic Pigtail
Magenta 12 Colored SC MM OM4 Fiber Optic Pigtail
Magenta 12 Colored SC MM OM4 Fiber Optic Pigtail
Magenta 12 Colored SC MM OM4 Fiber Optic Pigtail
Specifications
Brand Name :
CY COM
Model Number :
SC LC FC
Certification :
RoHS,ISO9001
Place of Origin :
Shenzhen China
MOQ :
10PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30000pcs per day
Delivery Time :
3-5 working days
Packaging Details :
PE bag or plastic box and Carton box
Connector :
SC,FC,LC
Fiber Count: :
4/6/8/12 Fibers
Application :
FTTH FTTB FTTX Network,cabling system
Cable diameter :
0.9/2.0/3.0mm
Color :
Magenta
Description

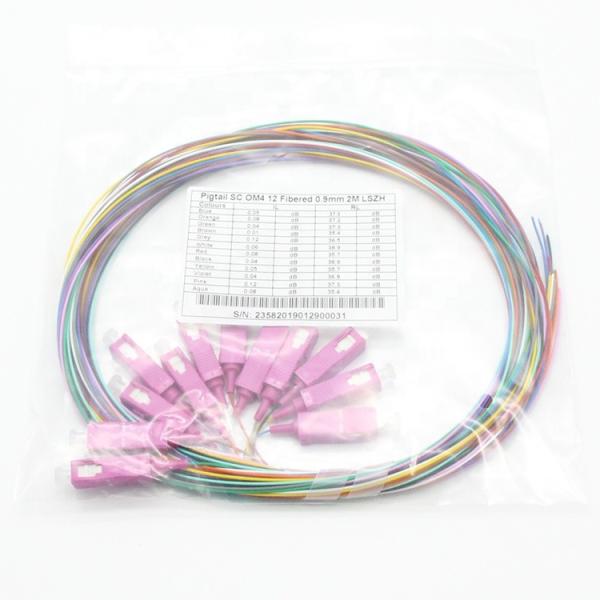

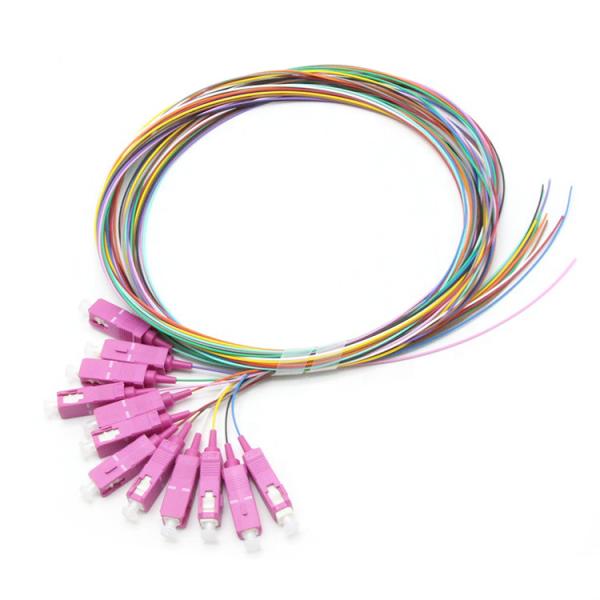

Magenta 12 Colored SC MM OM4 Fiber Optic Pigtail
High quality China-made SC MM OM4 12 colored with Magenta connector Fiber pigtail
Description:

12 fibers/Colored pigtail

It’s consists of 12pcs of Simplex pigtail.12pcs is a unit. Meets Telcordia GR-326 Core and ROHS requirements.

The connector could be SC, FC, LC, ST, MU, and E2000etc.

The cable could be G652D, G655, G657, OM1, OM2, OM3, OM4 etc.

The cable size could be 0.25, 0.9,

There are 12 colors for your option.

Both 250um and 900um is same colored, easy to identify and make right splice.

Tight buffer, semi-tight buffer. Loose buffer are available

.

Features :
Complying with IEC, Telcordia GR-326-CORE, YD-T 1272.3-2005,standard.
Low insertion loss, high return loss
Good in repeatability and exchangeability
High dense connection, easy for operation
Application:

High density wiring system.
40G and 100G system, QSFP module.
Data communication network
Optical system access network
Storage area network fiber channel

Wiring in communication base station and distribution case.

Parameters

Parameter LC,SC,ST,FC
SM MM
UPC APC UPC
Operating Wavelength(nm) 1310/1550 850/1300
Insertion Loss(dB) ≤0.20 ≤0.20 ≤0.20
Return Loss(dB) ≥55 ≥65 ≥35
Repeatability Loss(dB) ≤0.1
Interchangeability Loss(dB) ≤0.20
Repeat Piug-pull Times ≥1000
Tensil Strength(N) ≥100
Durability Loss(dB) ≤0.20
Operating Temperature(℃) -40℃~ +75℃
Storage Temperature(℃) -40℃~85℃

Magenta 12 Colored SC MM OM4 Fiber Optic Pigtail

Magenta 12 Colored SC MM OM4 Fiber Optic Pigtail
