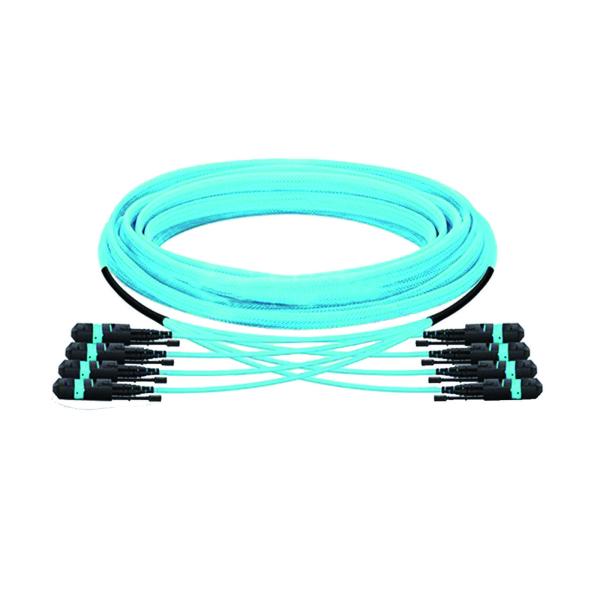

100G 72 Fiber OM3 MTP Patch Cord Aqua Cable
100G 72 Fiber OM3 MTP Patch Cord Aqua Cable
100G 72 Fiber OM3 MTP Patch Cord Aqua Cable
100G 72 Fiber OM3 MTP Patch Cord Aqua Cable
100G 72 Fiber OM3 MTP Patch Cord Aqua Cable
100G 72 Fiber OM3 MTP Patch Cord Aqua Cable
100G 72 Fiber OM3 MTP Patch Cord Aqua Cable
100G 72 Fiber OM3 MTP Patch Cord Aqua Cable
100G 72 Fiber OM3 MTP Patch Cord Aqua Cable
100G 72 Fiber OM3 MTP Patch Cord Aqua Cable
Specifications
Brand Name :
US CONEC / SENKO / Customized
Model Number :
48F MPO-MPO
Certification :
ISO9001:2015, ISO140001:2015, ROSH
Place of Origin :
Shenzhen China
MOQ :
10pcs
Payment Terms :
T/T, Western Union
Supply Ability :
50K/Month
Delivery Time :
5-8 days
Packaging Details :
PE bag
Polarity :
A/B/C
Loss data :
Elite loss/Standard loss
Connector type :
Female /Male
Cable color :
Aqua / Wathet Blue
Fiber qty :
24 /48 / 72 Fiber
Cable Material :
LSZH / OFNP / PVC
Cable shape :
Round / Ribbon
Fiber type :
OM3 OM4
Description

100G 72 Fiber OM3 MTP Patch Cord Aqua Cable

48Fiber 4 MPO to 4 MPO Truck Cable Mutilmode OM3 MTP Patch Cord Aqua Cable

MPO/MTP Fiber Cables assemblies are terminated with MPO/MTP connector on both end.

MPO cables are best choice for high density fiber networks.
It's specifically designed for fast ethernet, fiber channel, data center and gigabit ethernet applications.
The harness cable is used for connecting 10G SFP+ into a MPO adapter panel and MPO trunk

Features:

High Performance in IL & RL

4,8,12 and 24 fiber connector terminations and assemblies

Designed for low loss and standard loss SM and MM applications

Economical solution for mass-termination of fiber

Suitable for MPO/MTP application

Ruggedized round cable, oval cable and bare ribbon options available

Color coded housings available to differentiate fiber type, polish type and/or connector grade

Applications:

MPO/MTP is the high density of optical fiber pre-connect system which is generally use in three areas.

· The data center application with high density environment
· The optical fiber to the building
· The internal connector application in fiber equipment such as Splitter,

· 40G / 100G SFP and SFP

Specification:

Connector Type 12-Fiber Or 24Fiber MPO/MTP (non-pinned)
Polish PC(MM); APC(SM)
Housing Colour MM (Beige), MM Elite (Aqua), SM (Green), SM Elite (Yellow)
Insertion Loss, Typical (MTP/MPO) ≤ 0.10 dB
Insertion loss, max. (MTP/MPO) ≤ 0.3 dB
Return loss (MTP/MPO SM) PC >55dB; APC> 60dB
Durability(500 Matings) < 0.2dB
Fiber Cable Performance
Fiber Type OS2, OM1, OM2, OM3, OM4 OM5
Fiber Count 12,24,48,72,96,144 cores
Fiber Attenuation dB (OS2) ≤0.38 Max ≤0.34Typ(1310nm) ≤0.25 Max ≤0.19Typ(1550nm)
Fiber Attenuation dB (OM1) ≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤1.2Typ(1300nm)
Fiber Attenuation dB (OM2) ≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤0.9Typ(1300nm)
Fiber Attenuation dB (OM3) ≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤0.9Typ(1300nm)
Fiber Attenuation dB (OM4) ≤3.5 Max ≤2.7Typ(850nm) ≤1.5Max ≤0.9Typ(1300nm)
Min.Bandwidth:Overfilled Launch[Mhz-km] OM1≥200(850nm) ≥500(1300nm) OM2≥500(850nm) ≥500(1300nm) OM3≥1500(850nm)≥500(1300nm)OM4≥3500(850nm) ≥500(1300nm)
Min.Bandwidth:Laser Effective Modal Bandwidth [Mhz-km]
OM3 ≥2000(850nm) OM4 ≥4700(850nm)
Outer diameter 12fiber:3.0 or 5.5mm ; 24fiber:3.0 or 5.5mm
Outer jacket Colour OS2(Yellow),OM2(Orange),OM3(Aqua),OM4(Purple or Aqua)
Outer jacket material LSZH,OFNP,OFNR
Tensile strength >500N
Operating Temperature -40 ~ +85°C

Associated Standards:

Meets IEC Standard 61754-7& JIS C5982

Structured cabling per TIA-568-C

Parallel Optics
- Optical Internetworking Forum (OIF) Compliant
- Infiniband Compliant

Infiniband
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3
- QSFP

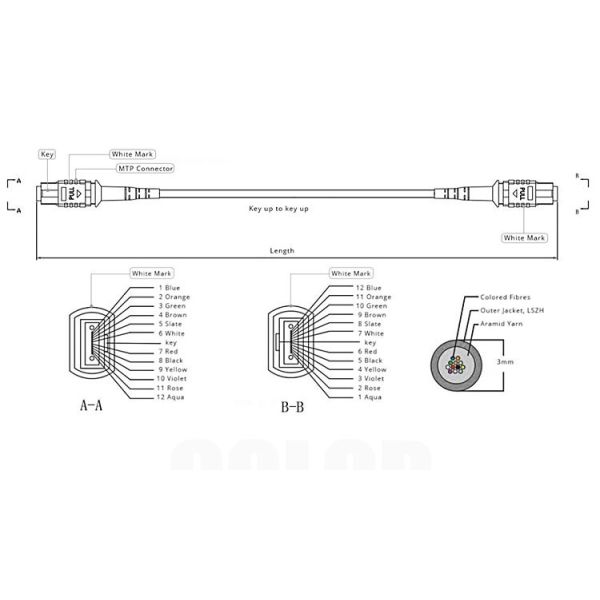

Polarity Selection:

100G 72 Fiber OM3 MTP Patch Cord Aqua Cable

100G 72 Fiber OM3 MTP Patch Cord Aqua Cable
