Specifications
Brand Name :
US CONEC / SENKO / Customized
Model Number :
MPO-MPO
Certification :
ISO9001:2015, ISO140001:2015, ROSH
Place of Origin :
Shenzhen China
MOQ :
10pcs
Payment Terms :
T/T, Western Union
Supply Ability :
50K/Month
Delivery Time :
5-8 days
Packaging Details :
PE bag
Polarity :
A/B/C
Loss data :
Elite loss/Standard loss
Connector type :
Female /Male
Cable color :
Aqua / Wathet Blue
Fiber qty :
8 /12 /24 core
Cable Material :
LSZH / OFNP / PVC
Cable shape :
Round / Ribbon
Fiber type :
OM3 OM4
Description

850nm Mutilmode OM3 Elite Loss LSZH MPO MTP

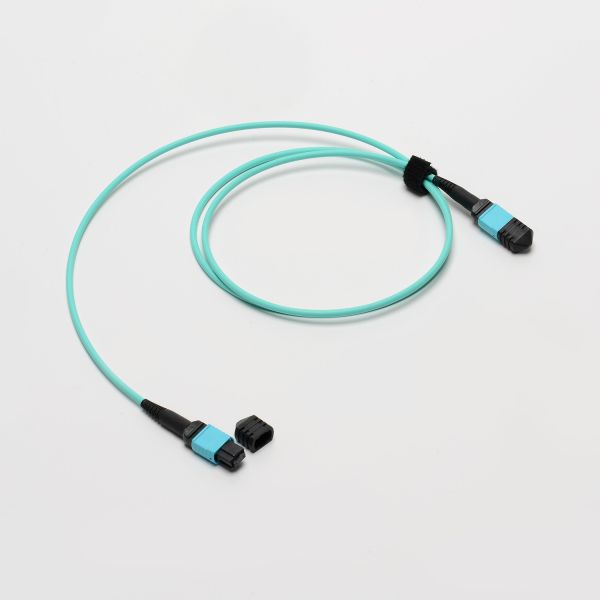

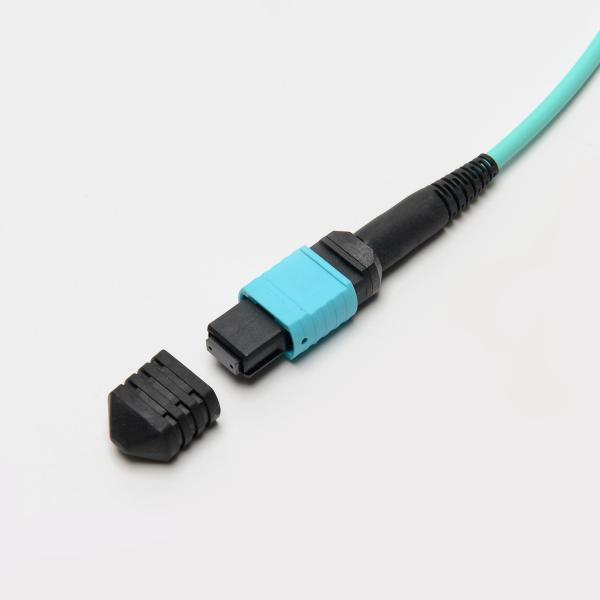

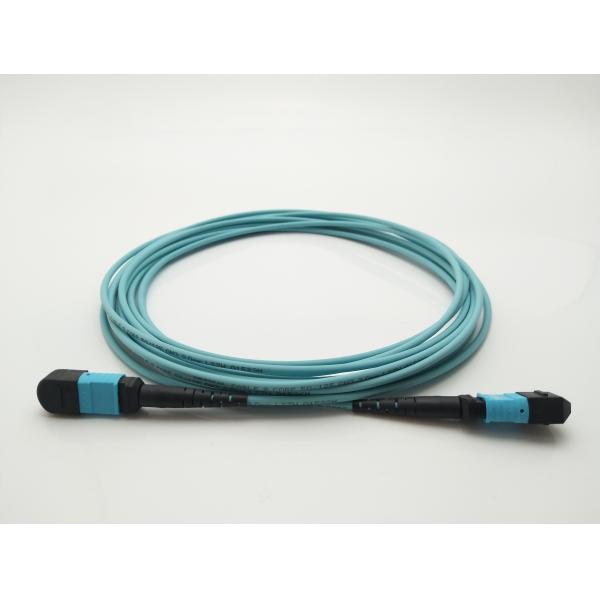

12core MPO to MPO Truck Cable Mutilmode OM3 MTP Patch Cord Aqua cable

We supply MTP and MPO fiber optic cables. These are available in Female to female or a male to male and male to female configurations. The male version has MTP pins. These can be made with 12 fiber MTP connectors, 24 Fiber MTP connectors, 48 Fiber MTP connector variations. Many additional options and combinations are available. All multi fiber optic cables are customizable.

Features:

MTP/MPO standard compliant multifibre connector

LC (SFF data center standard), SC discrete interface

OS1/2, OM3, OM4 fibre grades (OM1 and OM2 available)

12 and 24 fibre versions - 12 LC (Duplex) / SC (Simplex) optical parts

Polarity A (standard), B or C

Factory terminated and tested

High performance zirconia sleeve adaptors

Rapid deployment Factory terminated modular system saves installation and reconfiguration time during moves, adds and changes.

MTP/MPO interface MTP/MPO components feature superior optical and mechanical properties.

Optimized performance Low loss MTP/MPO Elite, discrete Premium connectors and OM4 fibre assures low insertion losses and power penalties in tight power budget, high-speed network environments.

Reliability 100% tested - combination of high quality components and manufacturing quality control guarantees product to the highest standards.

Performance of Assemblies MTP / MPO Termination:

Type/Performance Singlemode(APC polish) Multimode(PC / Flat Polish)
Standard Elite Low Loss Standard Elite Low Loss
Maximum Insertion Loss ≤ 0.75dB ≤ 0.35dB ≤ 0.60dB ≤ 0.35dB
Return Loss ≥ 50dB N/A
Operating Temperature -20°C to +70°C
Test Wavelength 1310nm 850nm

Applications:

Local Area Network (LAN)

Data communication network

Telecommunication optical transmission network

Optical access network(OAN)

Active device termination

Fiber optics data transmission(FODT)

Test Equipment

CATV

Production Equipment :

850nm Mutilmode OM3 Elite Loss LSZH MPO MTP

850nm Mutilmode OM3 Elite Loss LSZH MPO MTP850nm Mutilmode OM3 Elite Loss LSZH MPO MTP850nm Mutilmode OM3 Elite Loss LSZH MPO MTP
